The Black House
Subscribe now to instantly view this image
Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.
Already a subscriber? Sign in
John Donat (website) Download Original

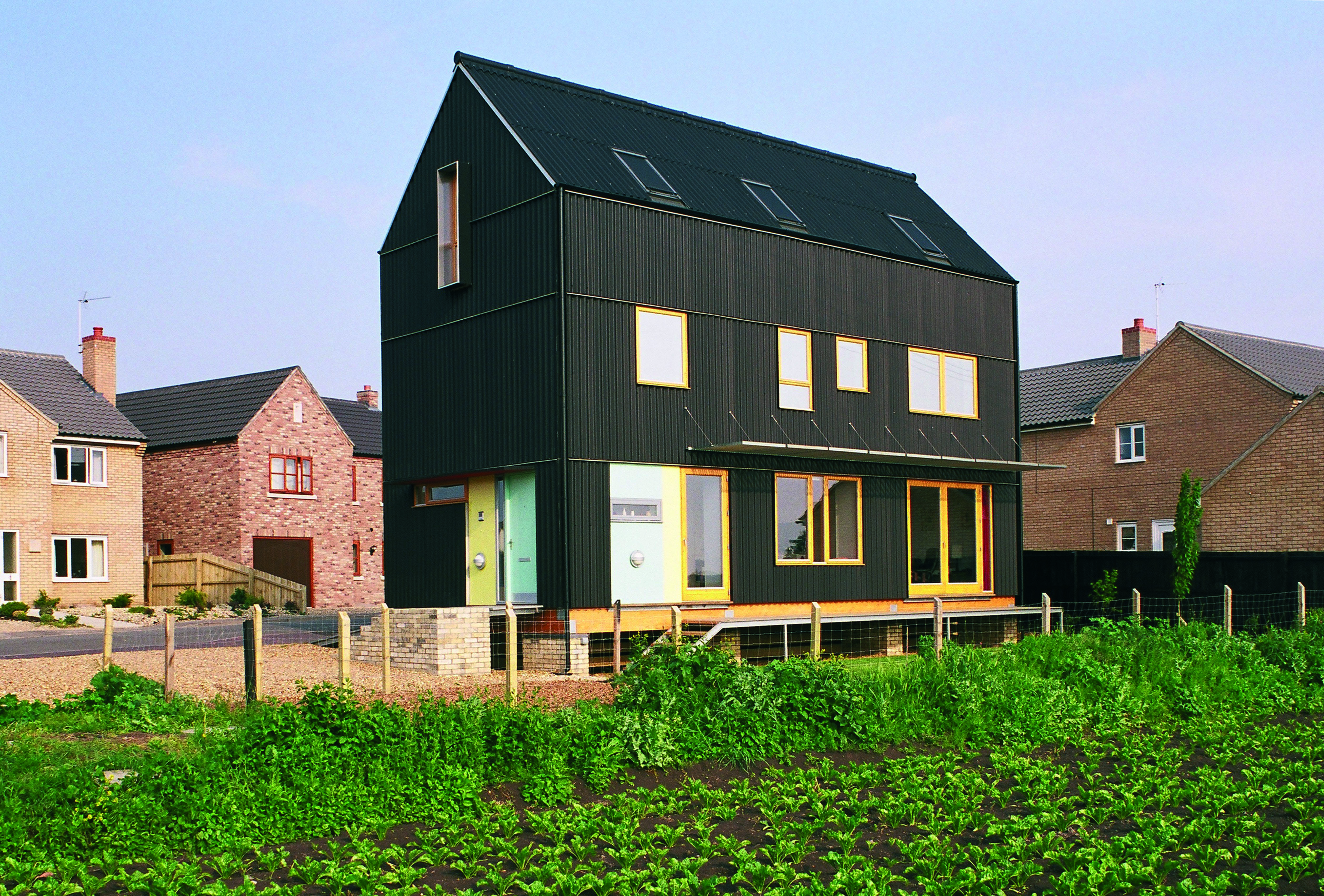

Situated on the Fen looking west towards Ely Cathedral the home is distinctive for its deep black corrugated cladding and barn-like quality
The house is oriented east-west with the principal orientation across open fields. A timber-slatted brise-soleil to the ground floor shades windows from low sun, with solar film to first-floor windows preventing overheating. Finishes are generally plastered walls and translucent-stain timber joinery.
On the ground floor, large glazed doors open on to a timber-decked western terrace. Upper floors are reached by a top-lit stair with glass balustrades. These upper floors provide bedrooms plus workrooms.
Black House is on 10m piles, the visible brick piers on pile caps linked by a ring beam of glulam, on which the building sits. With walls of timber I-beams, with recycled newspaper insulation, the house is highly insulated. A heat-pump system with heat recovery provides hot water and warm-air heating, backed up by small panel radiators.
Data
- Begun: Oct 2001
- Completed: Dec 2001
- Floor area: 154m2
- Sector: House
- Total cost: £174,589
- Tender date: Mar 2001
- Procurement: Self-build/JCT Minor Works
- Address: The Black House, Prickwillow, Ely, Cambridgeshire, CB7 4UL, United Kingdom
Professional Team
- Architect: Mole Architects
- Client: Private
- Design engineer: Building Structure Workshop
- Structural engineer: Jjo Associates
- Energy Consultant: Martyn Gamble
- Engineer: Built Engineers
Suppliers
- Groundworks: Mead Construction
- Piling Contractor: Central Piling
- Insulated timber frame contractor : Eden Frame
- Insulation: Warmcell
