Gap House

Pitman Tozer Architects, London, 2007


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in


Nick Kane (website)     Download Original

  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Third floor plan
  • Section A-A
  • Street elevation and rear section/elevation

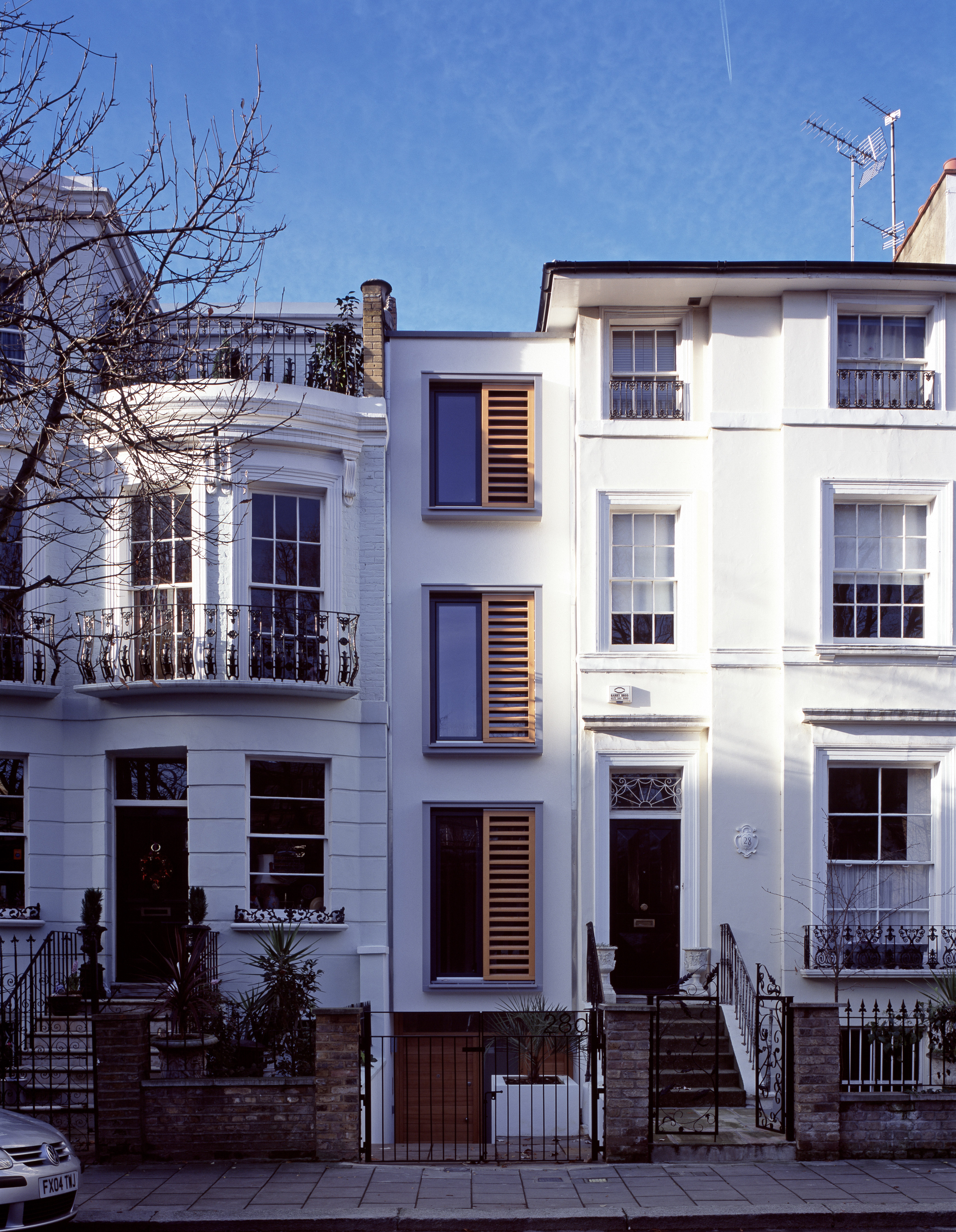

Terraced townhouse between two Grade II listed buildings with a 2.3 metre wide street frontage

Located within a conservation area in West London the four bedroom house occupies the gap between two villas that was formerly the side alley and rear garden of an adjoining property.

The building is arranged to maximise light and space to each habitable room within the constraints of a tight and awkward site.

Smaller bedrooms are located to the front of the house facing the street, while the rear of the building is arranged in a cascading configuration. Storage and wet rooms occupy parts of the plan where natural light is unavailable.

The rear of the site features a courtyard which brings light into the ground floor reception space, while a central twisting timber staircase held as a piece of sculpture off the walls bring daylight deep into the centre of the property.

The house, which incorporates a number of green strategies including passive solar gain, high levels of insulation, a ground coupled heat pump and rain water harvesting, was designed to use approximately 30 per cent of the energy of a typical house built to current building regulations.


  • Begun: Mar 2006
  • Completed: Aug 2007
  • Floor area: 185m2
  • Sector: House
  • Total cost: £514,000
  • Procurement: Traditional
  • Address: 28d Monmouth Road, London, W2 4UT, United Kingdom
