Gillespie Road

Mole Architects, London, 2009



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Mole Architects (website)     Download Original

  •
  •
  •
  •
  •
  • Lower ground floor plan
  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Roof plan
  • Section A-A
  • Section B-B
  • Existing

Small house that achieves a sense of spaciousness through smart level planning

Designed for a developer, for rent, the site was previously occupied by a row of three garages, measuring 4.4 x 8 metres.

The 75m2 internal area is divided over three floors achieved with a split-level plan. A half-basement allows the top floor to be less than 4.5m permitting a plan without a fully enclosed stair. As a consequence, this small house on a tight site feels spacious and light.

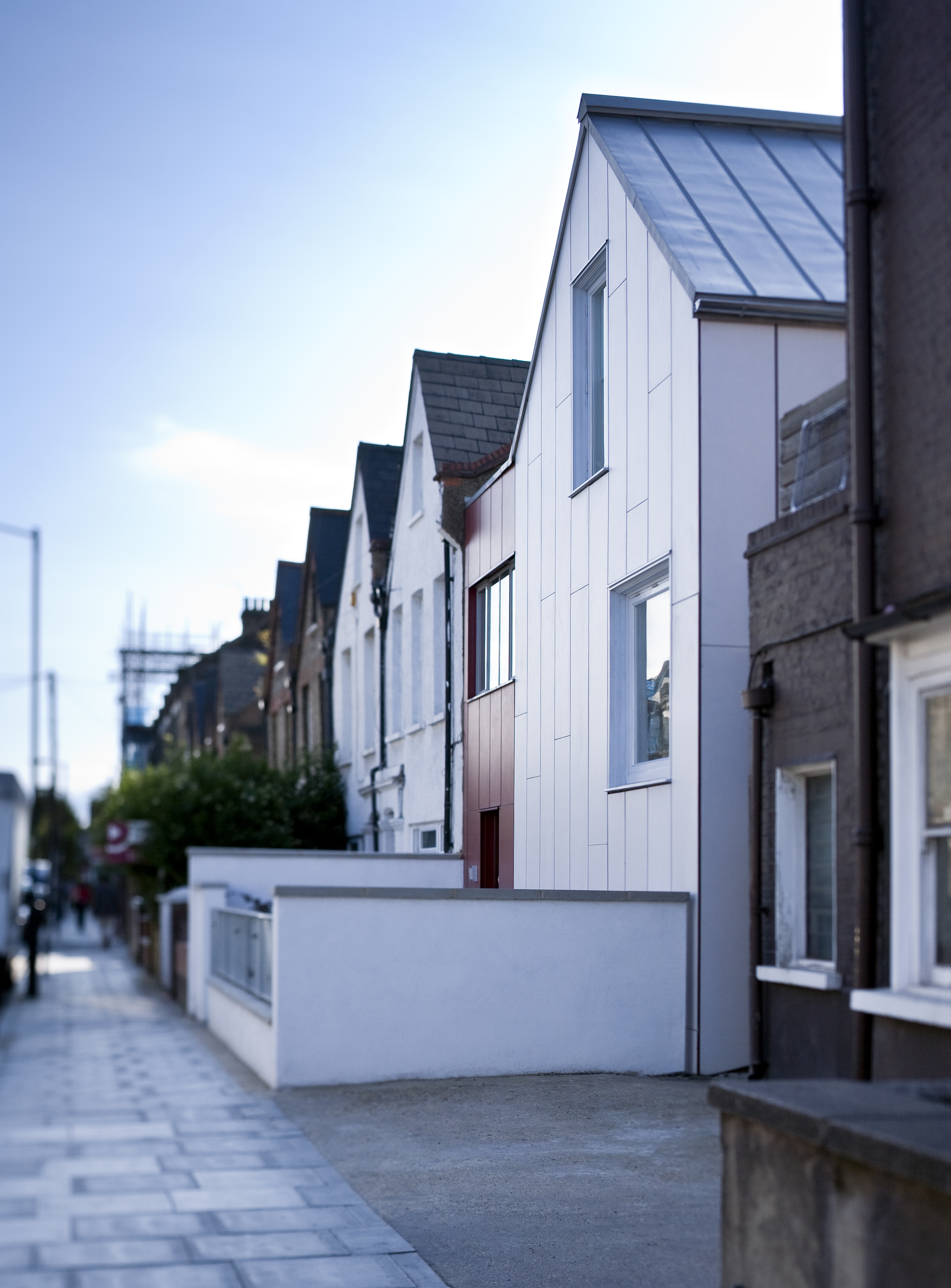

Construction was simple; reinforced block basement walls, concrete block walls and joisted floors and roof. Insulation is external behind a rainscreen of cement fibre panels in red and white, the colours of Arsenal football club, (Highbury stadium is on the same road). The roof is zinc-standing seam. Internally the house is painted plaster with oak floors and staircase.

Data

  • Begun: Aug 2008
  • Completed: Feb 2009
  • Floor area: 75m2
  • Sector: House
  • Total cost: £200,000
  • Procurement: JCT Minor Works
  • CO2 Emissions: 1.7kg/m2/year
  • Address: Gillespie Road, London, N5 1LR, United Kingdom
