Two and Half Storey House

Bradley Van Der Straeten Architects, London, 2019



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

09_1

French and Tye     Download Original

  • 09_1
  • 10_7
  • 04_12
  • 06_2
  • 07_3
  • 08_0
  • 01_19
  • 02_17
  • 05_2
  • 03_17
  • sketch_-_first_floor_plan
  • sketch_-_perspective_01
  • sketch_-_perspective_02
  • sketch_-_second_floor_plan
  • sketch_-_section_aa
  • sketch_-_section_bb
  • victorian_grove_existing_drawings
  • victorian_grove_proposed_drawings

The clients owned the existing two-storey, two-bedroom property, located on a central London housing estate

With a second baby on the way, they needed more space. Priced out of three-bedroom properties in the area they decided to investigate what could be done to create more space in their existing home. The challenge with this property, unlike others on the estate, they were unable to secure planning permission for a single-storey loft extension. They received two planning refusals since they were not permitted to build any higher than the highest point of the existing roof, due to its lower profile. We approached the design as an interlocking jigsaw.

We knew the half height of the loft was fixed so the design was all about creating two interlocking floor levels in the space of one and half floors. We may have given less footprint, but we created more volume and an additional bedroom by using it creatively. The whole design of the project hinged on using the ceiling of the bedroom below as a bed platform for the bedroom above, which is spacious and light due to effective use of roof windows. Integrating the bedframe into the fabric of the design allowed space to be freed up for other things such as the communal circulation spaces. Plywood unifies all the new and old spaces and helps to conceal lots of clever storage spaces.

A close attention to millimetre detail ensured ceiling heights could be maximised, which included exposing structural timbers in the ceilings and using vacuum insulation panels to limit floor and roof depths.

The clients are delighted with their new house and love being able to see their eldest son playing in his new loft bedroom from the hallway window on the first floor, thanks to the split levels.

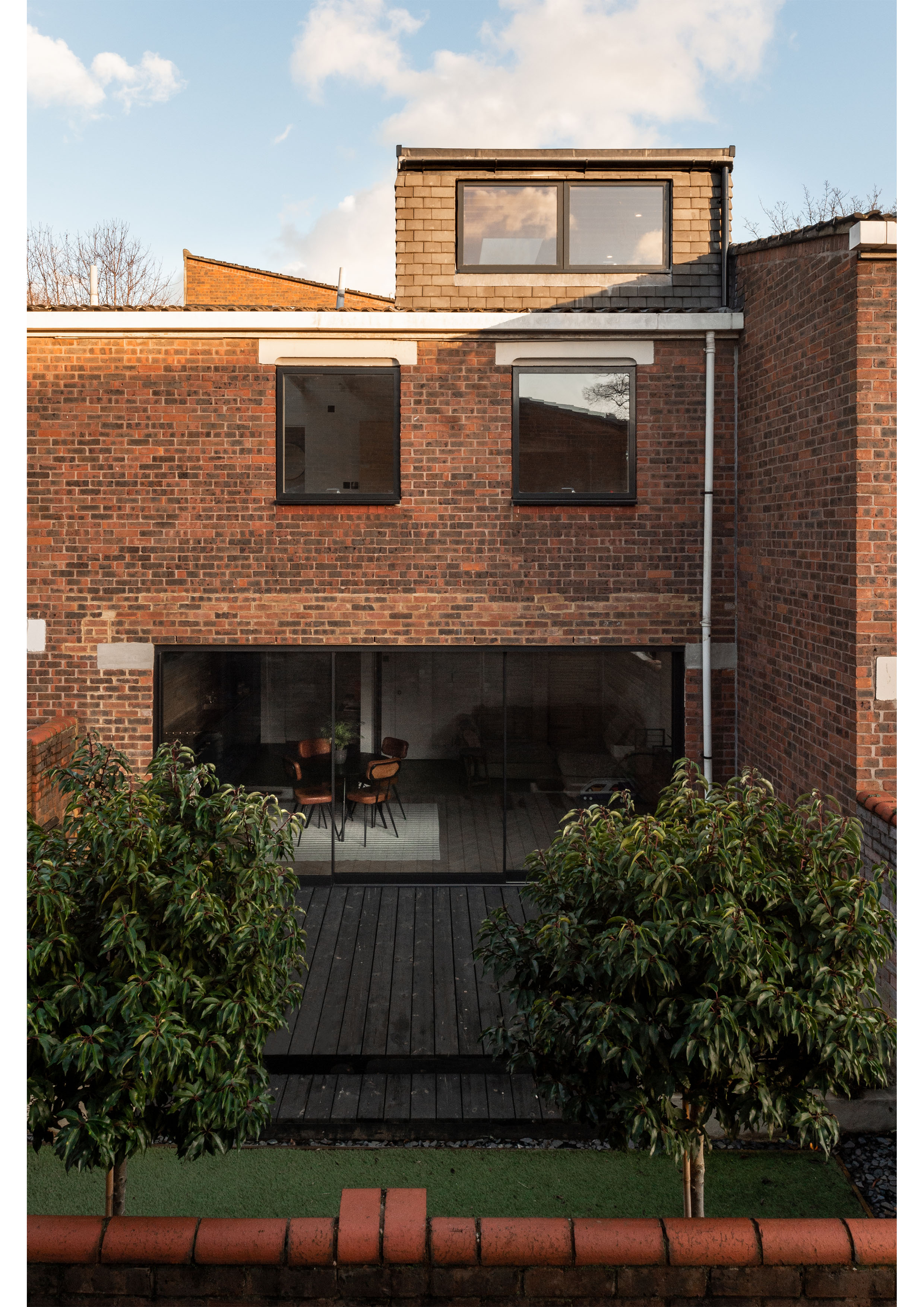

All photographs by French and Tye

Data

  • Begun: Jul 2019
  • Completed: Dec 2019
  • Floor area: 98m2
  • Sector: Residential
  • Total cost: £110,000
  • Funding: Private
  • Tender date: Apr 2019
  • Procurement: JCT Householder
  • Address: London, London, N16, United Kingdom
