Westbourne House

Paul Archer Design, Penarth, 2014


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

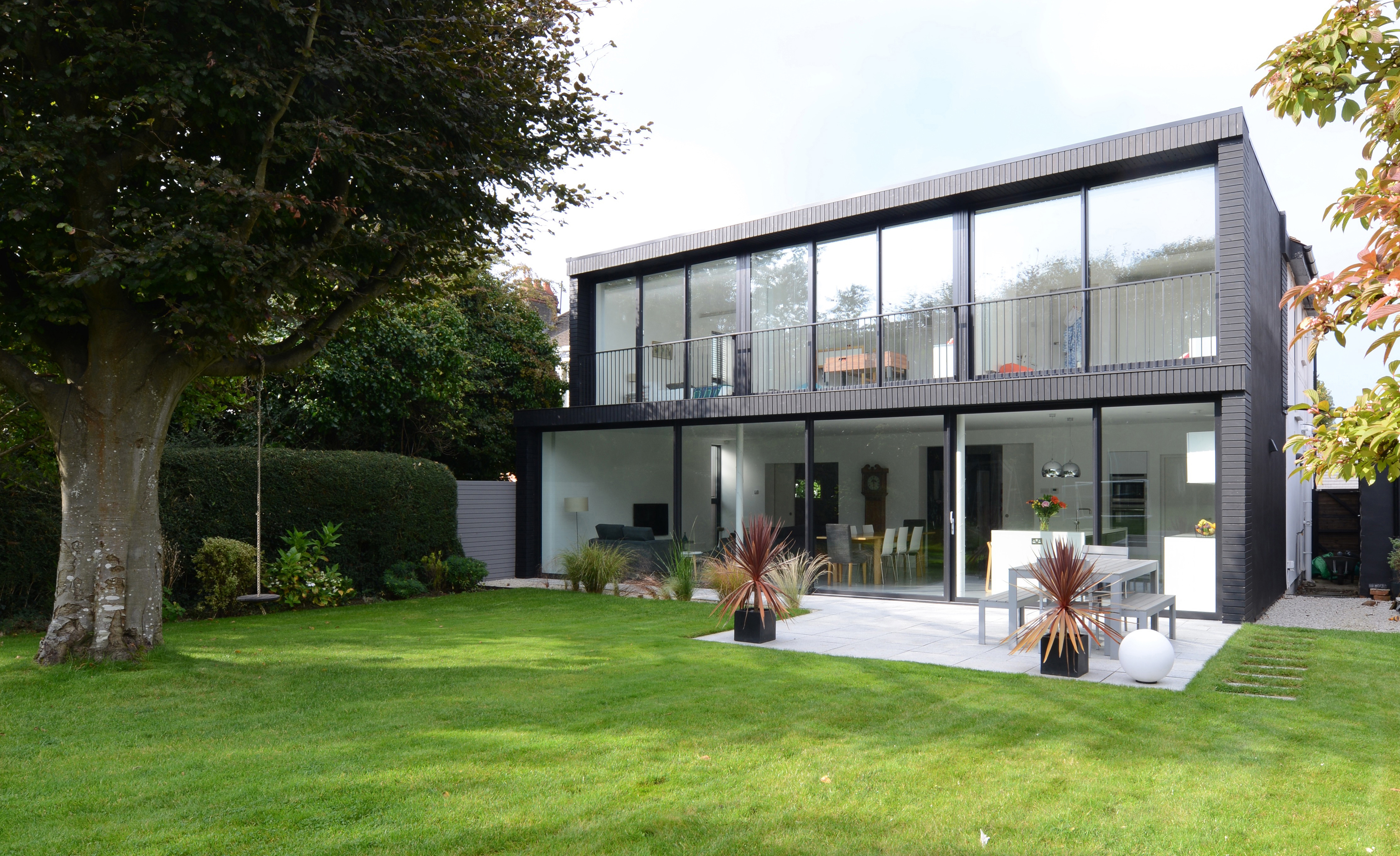

Rear exterior

Paul Archer     Download Original

  • Rear exterior
  • Rear Elevation
  • Rear Exterior
  • Kitchen
  • Master bedroom
  • Playroom/study open
  • Playroom/study with doors closed
  • Original Ground Floor
  • Original First Floor
  • New Ground Floor
  • New First Floor
  • Section A-A
  • Original Rear Elevation
  • Exterior - Original Rear View
  • Original Interior
  • Original Kitchen
  • Detail A

A new two-storey extension to an Arts & Crafts house creating a spacious family home

Westbourne House is just south of Cardiff on the coast of the Bristol channel.

The idea was to leave the Arts and Crafts house to the street, and then build an extension that looks like a completely new house from the back - with none of the original house visible.

The extension is thus as large as the original house. The volume and proportion of the new is very close to being a mirror of the original. The aesthetic and facade treatment is however very different. Whilst the original house was closed to the garden and with very cellular rooms, the new is fully open to the garden, and very open plan.

The back wall of the house is twisted, partly to reduce the impact of the upper floor on the neighbour, but also partly to accentuate the rake of the sliding doors as they slide behind each other. The doors are sized as progressively smaller, creating a subtle false perspective emphasising the twist.


  • Begun: Oct 2013
  • Completed: Aug 2014
  • Floor area: 222m2
  • Sector: House
  • Total cost: £150,000
  • Funding: Private client
  • Procurement: JCT Minor Works
  • Address: Westbourne Road, Penarth, South Glamorgan, Penarth, CF64 5BR, United Kingdom

Professional Team
