Barbican Mezzanine

Francisco Sutherland Architects, London, 2017



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

12_BC_FSA_web

Anton Rodriguez (website)     Download Original

  • 12_BC_FSA_web
  • 2_BC_FSA_web
  • 1_BC_FSA_web
  • 3_BC_FSA_web
  • 4_BC_FSA_web
  • 5_BC_FSA_web
  • 6_BC_FSA_web
  • 7_BC_FSA_web
  • 8_BC_FSA_web
  • 9_BC_FSA_web
  • 10_BC_FSA_web
  • 13_BC_FSA_web
  • 11_BC_FSA_web
  • 14_BC_FSA_web
  • 15_BC_FSA_web
  • 16_BC_FSA_web
  • 17_BC_FSA_web
  • 18_BC_FSA_web
  • 19_BC_FSA_web
  • 20_BC_FSA_web
  • Barbican Mezzanine_7th floor plan
  • Barbican Mezzanine_Bunyan Court_type M3a
  • Barbican Mezzanine_location plan
  • Barbican Mezzanine_mezzanine detail
  • Barbican Mezzanine_mezzanine plan
  • Barbican Mezzanine_section A
  • Barbican Mezzanine_section B
  • Barbican Mezzanine_section C
  • Barbican Mezzanine_section D
  • Barbican Mezzanine_shower room details
  • Barbican Mezzanine_mezzanine plan
  • Barbican Mezzanine_shower room details

Insertion of an oak structure within a double height barrel vaulted Barbican penthouse flat; creating an upper platform, shower room and storage below, linked by an alternating tread staircase.

Bunyan Court (completed in 1972) is one of the blocks which forms the Barbican Estate (grade II listed), an outstanding example of brutalist architecture in London.

This particular flat is a M3a type - a triplex at 5th, 6th and 7th floor with the top floor comprising a double height space with a barrel-vaulted ceiling
he brief was for the design of a carefully crafted piece of furniture, slotted into the top floor room forming a mezzanine platform, shower room and wardrobes to serve the master bedroom.

The design of the bathroom was carefully coordinated with the existing communal services. The shower enclosure is lined with white hi-macs panelling and has a bespoke shower tray.

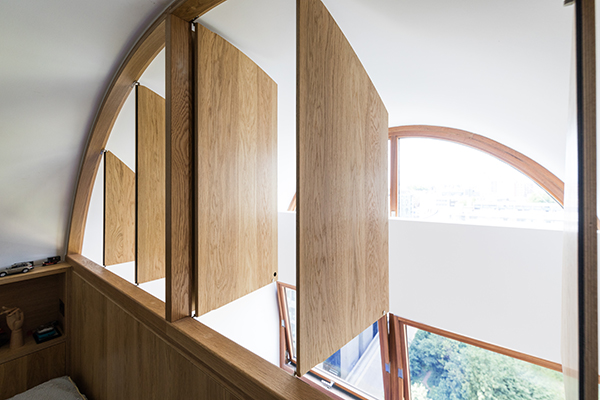

The timber for the intervention is oak, in plywood panels with a birch core and 4mm facing veneers to both sides. It was chosen to contrast with the hardwood used for the existing staircase. Storage and shutters were carefully integrated into the design of the upper platform and follow the curve of the ceiling.

The design was based on the idea of a room within a room as well as a lived-in piece of furniture: a multi-functional object occupying a larger space.

Data

  • Begun: Feb 2017
  • Completed: Jul 2017
  • Floor area: 27m2
  • Sector: Residential
  • Total cost: £50,000
  • Funding: Private
  • Tender date: Dec 2016
  • Procurement: Bespoke
  • Address: Bunyan Court, Barbican, London, EC2Y 8DH, United Kingdom
