Harcombe

Forrester Architects, Stoke Newington, London, 2015



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

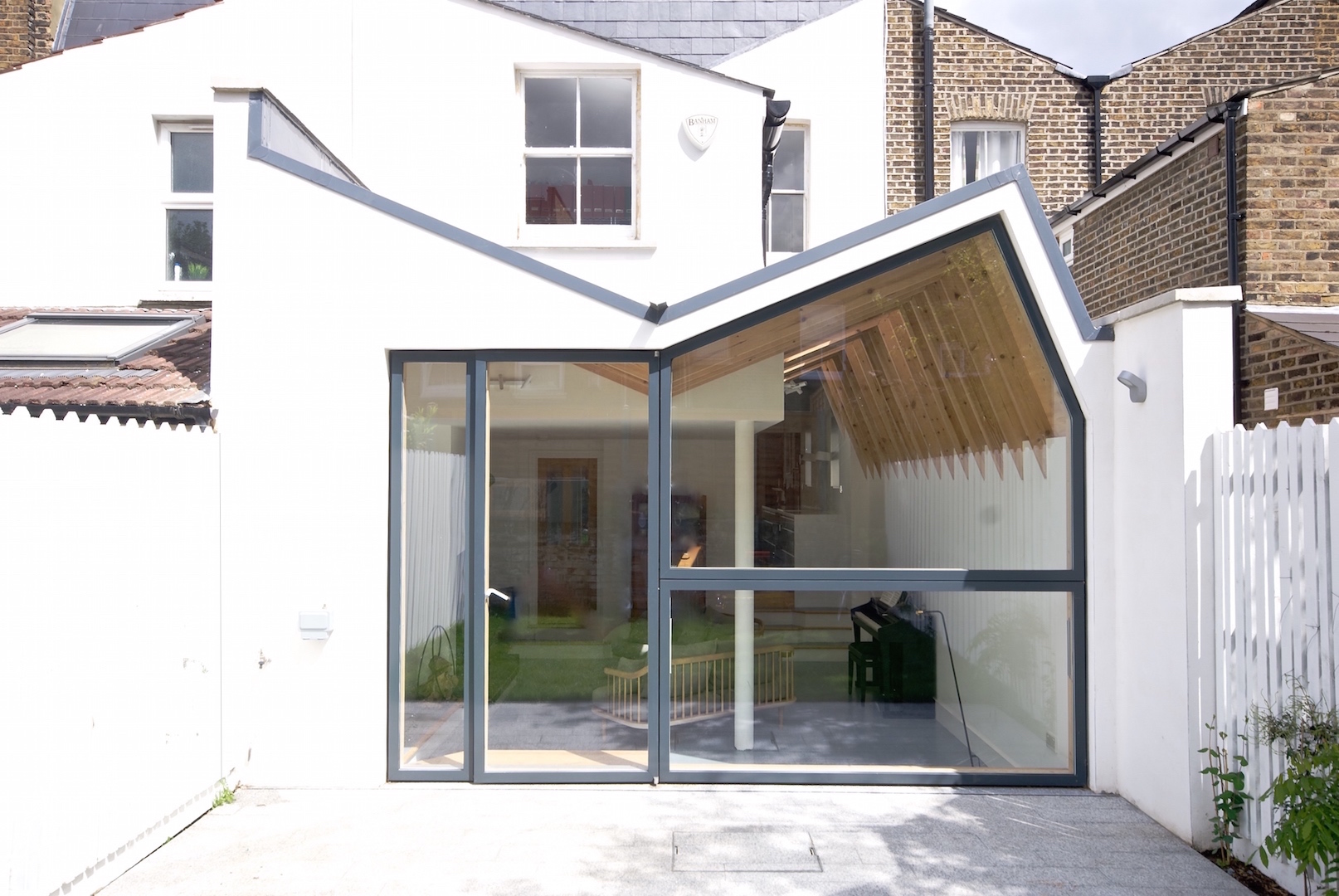

View from the garden

forrester architects (website)     Download Original

  • View from the garden
  • A new lounge overlooking the rear garden
  • The butterfly roof construction is expressed internally
  • The kitchen is now central to the floor plan
  • The dining room to the front of the house
  • View of the small urban garden
  • The extension in context
  • The house before the works
  • Existing Ground Floor
  • Existing Elevations
  • Proposed Ground Floor
  • Proposed Sectional Elevation
  • Proposed Long Section
  • Proposed Stepped Lounge
  • Proposed Rear Elevation
  • Sketch proposal
  • Proposed Detailed Section

A mid-terraced house with full ground floor reconfiguration and a modern butterfly roof extension.

Keen to avoid the mundane lean-to extension, the new rear extension is a modern interpretation of the traditional London Roof. The butterfly roof provides an enlivened architectural language to the rear of a mid-terraced house in North London. The roof form is expressed internally as exposed timber joists and provides a dynamic feature and natural warmth to the new lounge space, which has moved to the rear of the house.

The kitchen has been relocated between the lounge room and the dining room has moved to the bay windowed room to the front.

A new larger galley kitchen provides an open plan connection between the new lounge room and the dining room. The dining room is now perfectly orientated for breakfast with the sun rising from the East. To the West a large hexagonal glass window frames views of the small garden and the setting sun in the evening.

Data

  • Begun: Aug 2014
  • Completed: Jan 2015
  • Floor area: 60m2
  • Sector: House
  • Total cost: £80,000
  • Funding: Private
  • Tender date: Jun 2014
  • Procurement: JCT Minor Works
  • Address: Harcombe Road, Stoke Newington, London, N16 0SA, United Kingdom
