Folded Roof

Knott Architects, London, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



    Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Floor plan
  • Floor plan
  • Section A-A
  • Section B-B
  • Elevation
  • Roof detail
  • Roof plan detail

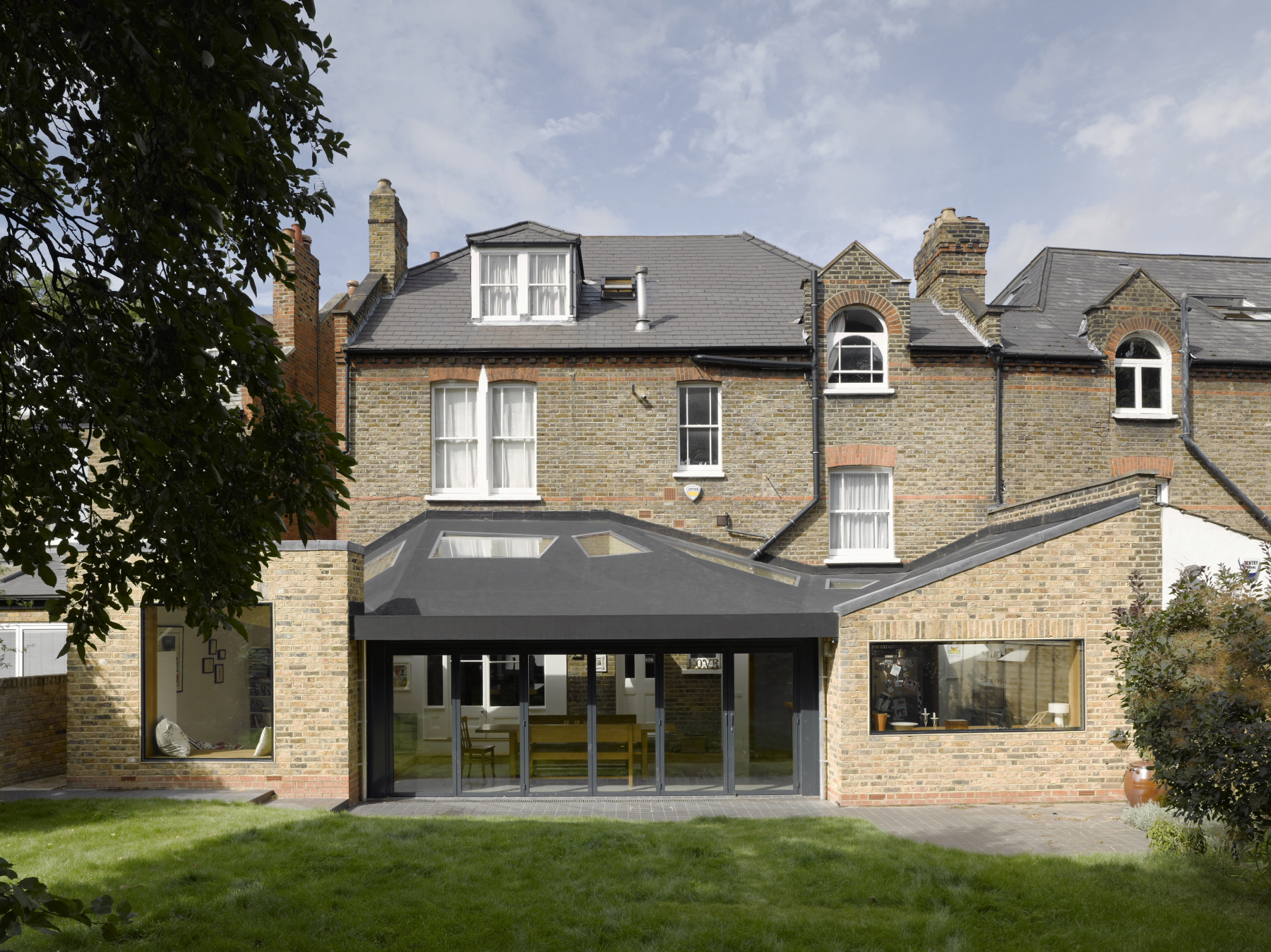

Full width family room rear extension, an infill between two partially retained existing extensions, uniting them with a folded rubber roof

The infill roof takes on a stealth-like form crouching behind the existing brickwork. The roof is of folded rubber on the outside and plywood on the inside, wit
symmetrical rooflights flush with the rubber, allowing daylight to reach the heart of the house.

The 150 fiber optic points of light liven up the ply ceiling at night. The family room, opens up fully onto the garden, with a six panel sliding folding door.

The kitchen is bespoke, with birch ply carcasses, and stainless steel fronts and worktops.

Large flush glazed windows in the brickwork, complete a successful contemporary addition to this family house.

Data

  • Begun: May 2012
  • Completed: Dec 2012
  • Floor area: 66m2
  • Sector: House
  • Total cost: £157,000
  • Tender date: Apr 2012
  • Procurement: JCT MW 2011
  • Address: North London, London, N8, United Kingdom
