Architects' office extension

One 17 Architects & Designers, Huddersfield, 2014



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



    Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

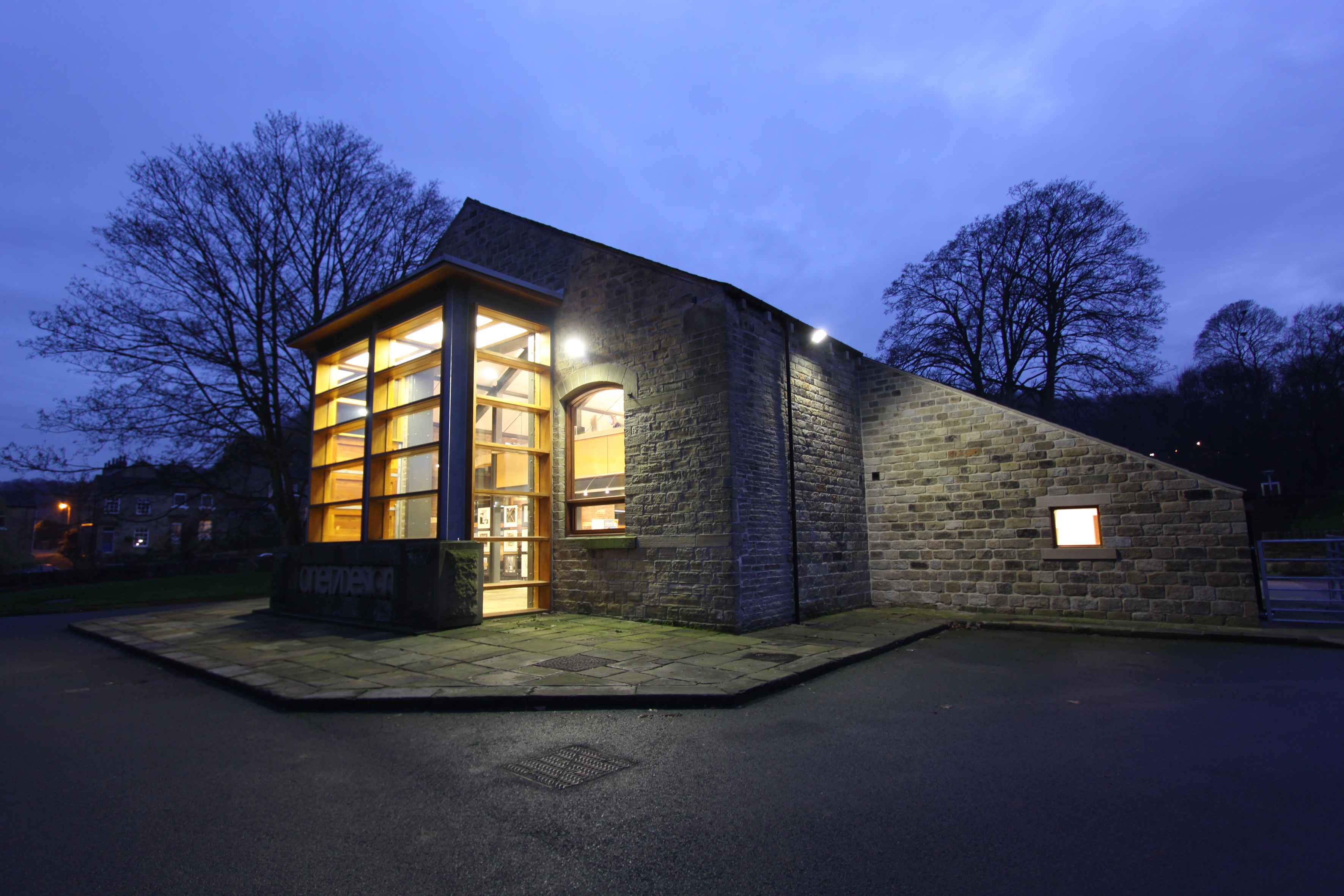

An archive store and small meeting room extending this existing architects office

When One 17 Architects and Interior Designers needed to create space for a new interiors studio it decided to free up space currently taken by archive storage.

This required the creation of a new archive store. The main offices were formed by the practice five years ago by converting a 19th-century textiles dyehouse sitting in green belt on the edge of a conservation area.

The form chosen for the extension was a simple lean-to with a catslide roof extended from the main building. As well as purpose built archive storage, the extension provides two work spaces or a small meeting room.

Materials (reused and new local stone and slate) and details (purpose made joinery by a local subcontractor) follow the original conversion scheme and the resulting extension marks the entrance to the staff parking area, which sits between the building, the refurbished mill pond and open fields.

Data

  • Begun: Apr 2014
  • Completed: Oct 2014
  • Floor area: 24m2
  • Sector: Office
  • Total cost: £42,000
  • Funding: One 17 Design Pension Fund
  • Tender date: Mar 2014
  • Procurement: Direct labour
  • Address: The Dyehouse, Armitage Road, Armitage Bridge, Huddersfield, HD4 7PD, United Kingdom
