Dianna Fletcher, Surrey, 2019


01-Front Elevation

    Download Original

  • 01-Front Elevation
  • 02-Extension with new entrance
  • 03-Night view
  • 04-Entrance Hallway
  • 05-Hallway view to terrace
  • 06-Dining Room
  • 07-Kitchen Dining
  • 08-Kitchen
  • 09-rear terrace
  • thumbnail_img_0911
  • thumbnail_img_1533
  • thumbnail_img_2132
  • thumbnail_img_6307
  • thumbnail_img_6309
  • Floor plans

A new extension and internal alterations to the architect's own home in a conservation area

The new extension roof follows the line of the 1930s barn style roof as a catslide but is cut away to allow for existing windows.

The resultant roof form creates a generous, dramatic and light filled entrance hall which connects the ground floor spaces.

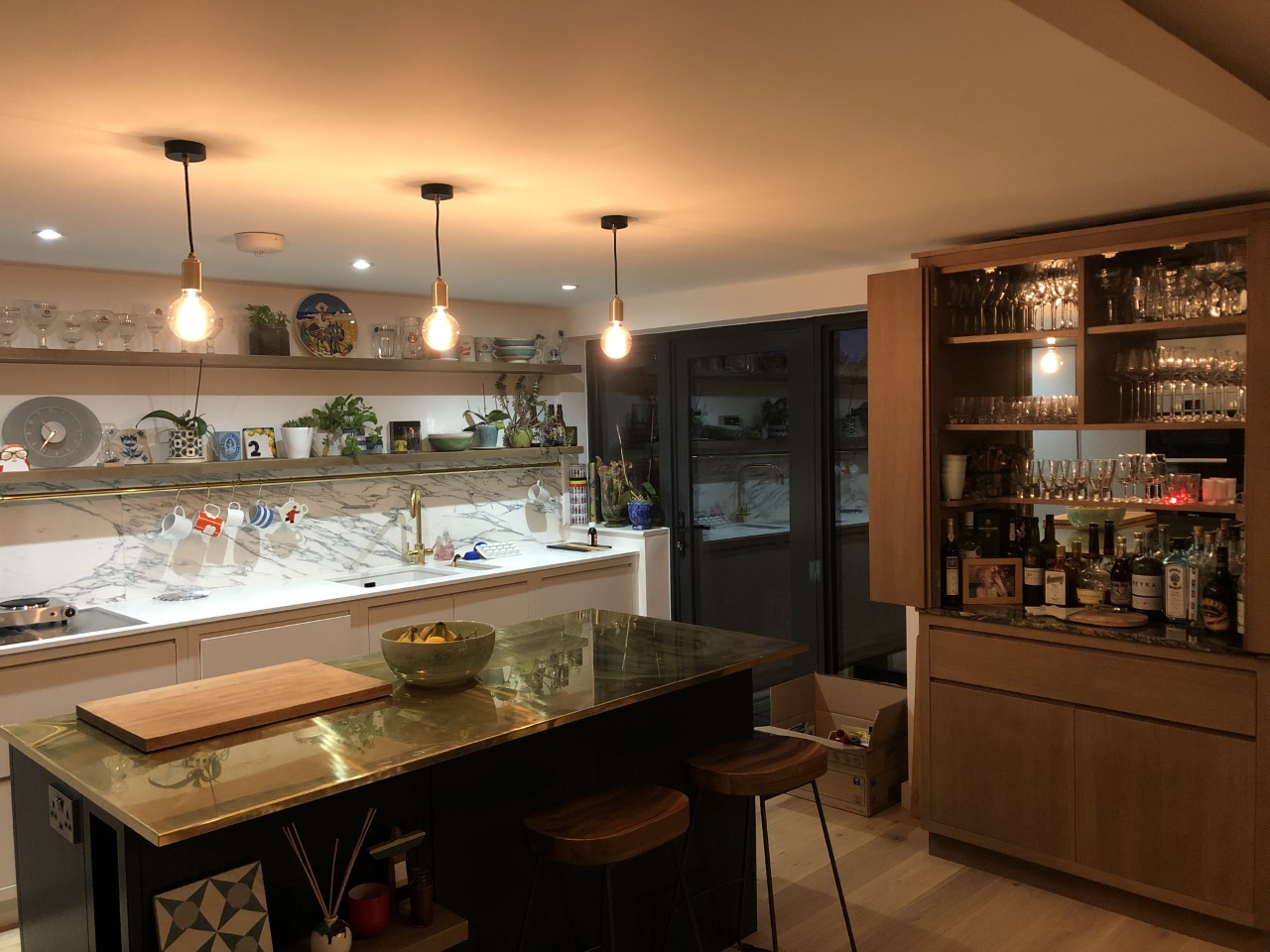

A new kitchen, dining area, laundry, WC complete the ground floor alterations.

Annual CO2 emissions data (requested in kg/m2/year) was provided as follows: 5.10 tonnes - this is as estimated by energy supplier over the period of the pandemic during which we have been WFH.


  • Begun: Jul 2019
  • Completed: Dec 2019
  • Floor area: 75m2
  • Sector: Residential
  • Total cost: £206,000
  • Funding: private
  • Tender date: Mar 2019
  • Procurement: JCT Home Owner/Occupier Contract
  • Address: Guildford, Surrey, GU2, United Kingdom

Professional Team
