Chimes House

David Sheppard Architects, Exeter, 2013



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

Chimes Oct _MG_7963

    Download Original

  • Chimes Oct _MG_7963
  • Chimes Oct _MG_8070
  • Chimes Oct _MG_7579
  • Chimes Oct _MG_7615
  •
  • Chimes Oct _MG_7894
  • Chimes Oct _MG_7918 CR
  • Chimes Oct _MG_7955
  • Chimes Oct _MG_8089
  • Chimes Oct _MG_8101
  • Chimes Oct _MG_8109
  • Chimes Oct _MG_8113
  • Chimes Oct _MG_8144
  • Chimes Oct _MG_8166
  • Chimes Oct _MG_7676
  • Chimes Oct _MG_7792
  • Chimes Oct _MG_7802
  • Ground floor plan
  • First floor plan
  • Plan
  • Section B-B
  • North east and south west elevations
  • Wall details

One-bedroom house designed around a music room for two pianos

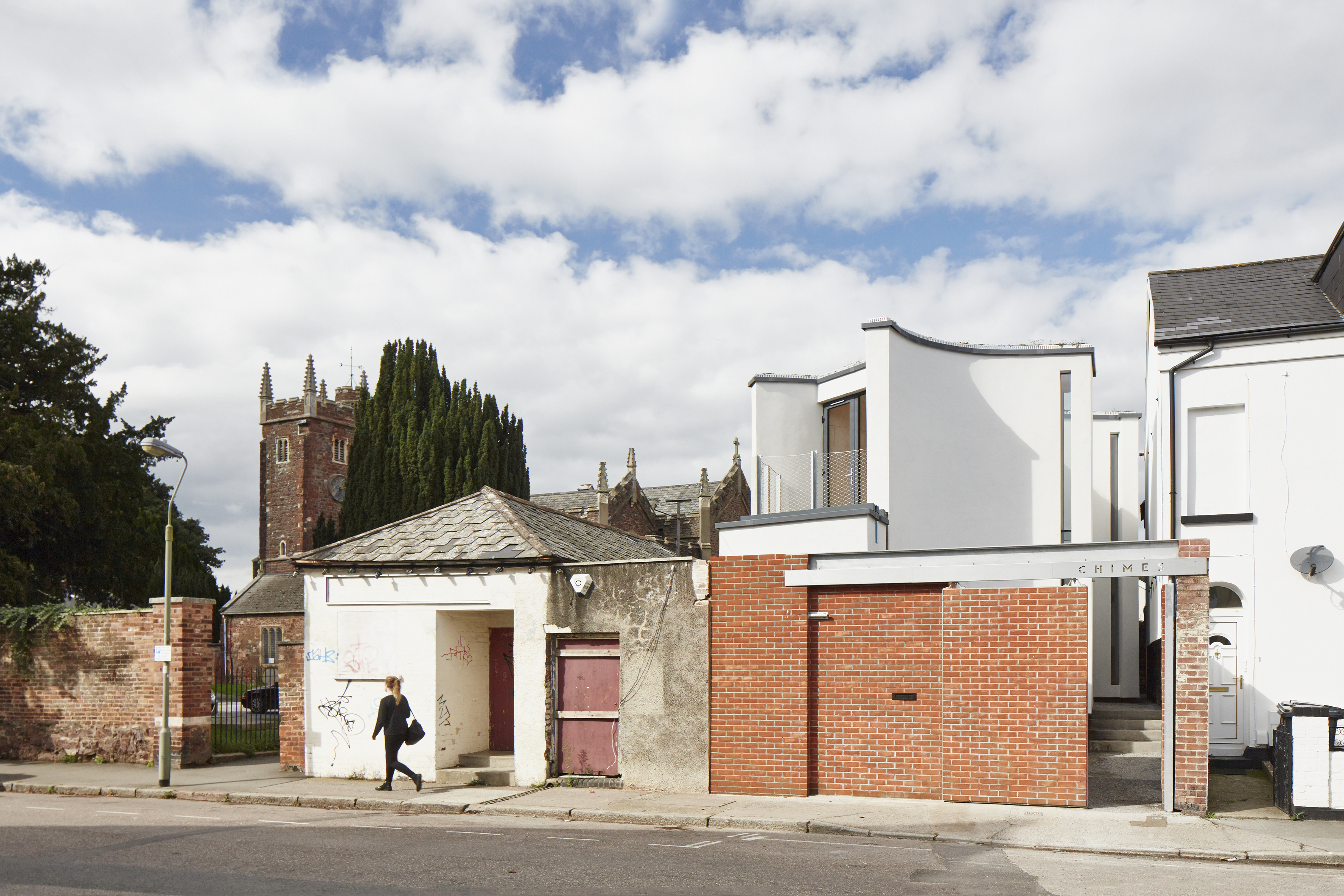

The house is built on a disused builder’s yard adjacent to a 14th century church in an Environment Agency Flood Zone 3. Within this restricted curtilage the deisgn of the house is inspired by music and capturing light.

The new floor is built off the existing slab and hardstanding in layers of compacted recycled material within a brickwork perimeter wall, that established a working platform for the timber framed house. This avoided a major dig, flood risk, party wall acts and landfill costs, with all the services being ducted under the slab.

Plywood ‘I’ wall stud construction filled with sheep’s wool insulation was used, with Kerto floor and roof joists and a sedum-covered single-ply roof membrane topped with photovoltaics.

Internally the house is finished with lime-waxed plywood and larch floorboards.

Data

  • Begun: Jul 2012
  • Completed: Sep 2013
  • Floor area: 110m2
  • Sector: House
  • Total cost: £295,000
  • Procurement: JCT Intermediate
  • Address: Exeter, United Kingdom
