Room 13, Hareclive Primary School

Mitchell Taylor Workshop, Bristol, 2007


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

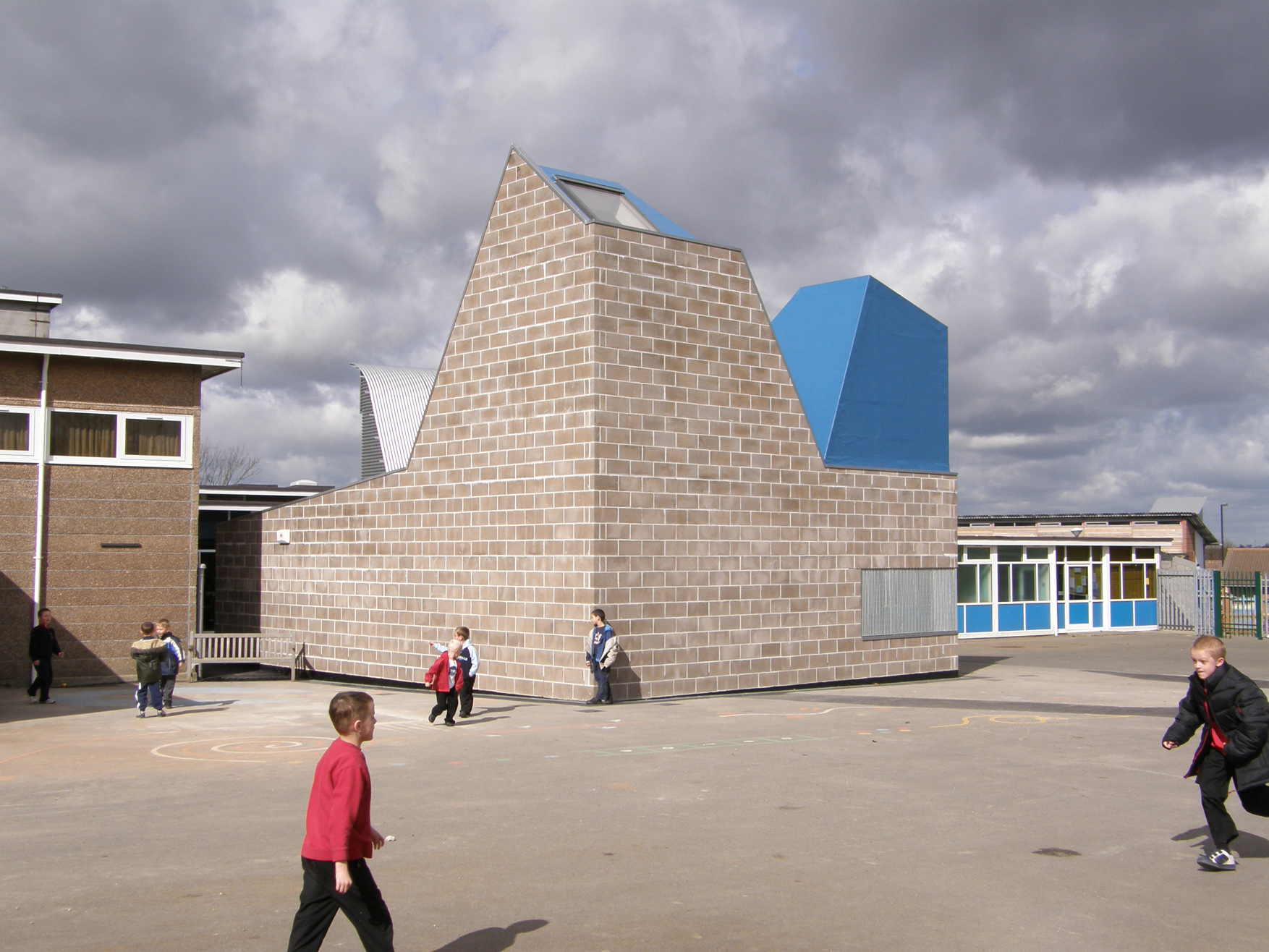

Two canted towers dominate the roof's profile

Mitchell Taylor Workshop (website)     Download Original

  • Two canted towers dominate the roof
  • Canted towers
  • Fair-faced blockwork
  • The roof is clad with bright blue Sarnafil membrane
  • Simple materials are used throughout the building
  • detail of the two towers, one in blockwork the other in blue Sarnafil
  • A glazed entrance ensures transparency
  • Unfinished interior finished provide
  • Timber frame
  • Visitors to the studio
  • Children
  • rooflights inthe towers give a top-lit interior
  • The tower skylights provide natural daylighting
  • The building needed to be secure and vandal-proof
  • Light patterns created by the tower skylight
  • A glazed wall facing the school encourages students to use the space
  • Site plan
  • Ground floor plan
  • Roof plan
  • Section AA
  • Section AA(2)
  • Section BB
  • Section CC
  • North Elevation
  • East elevation
  • South elevation
  • West Elevation
  • Sketch
  • Sketch
  • Sketch
  • Roof detail
  • Roof details
  • Roof details
  • Window details

Small art studio connected to a primary school designed to be secure and energy efficient

The building is part of an international network of studios for young artists run by the students themselves. It is a space dedicated to interactive art education programs for school children; a space where they can run their own studio and work alongside artists. The room is available for use after school hours, between lessons and during lunchtimes.

The design is a response to the local area, with a robust vandal-proof blockwork exterior. Two canted towers, clad with a bright blue Sarnafil roofing membrane add interest to the exterior and provide natural lighting for the teaching space. The roof is supported on glulam beams and covered with a single ply membrane.

A large glazed entrance facing the school, in contrast to the blockwork 'public' facade, encourages children to use the space, and leads to the unfinished interior meant as a 'blank canvas'.


  • Completed: 2007
  • Floor area: 100m2
  • Sector: Education
  • Total cost: £157,000
  • CO2 Emissions: 34.4kg/m2/year
  • Address: Moxham Drive, Bristol, BS13 0HP, United Kingdom
