Lauriston School

Meadowcroft Griffin Architects, London, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Tim Soar (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Section
  • Section
  • Elevations
  • Classroom window details
  • Vent cover panels
  • Classroom vent window detail

Eco-friendly extension to double the size of a small primary school on an urban site in Hackney, east London

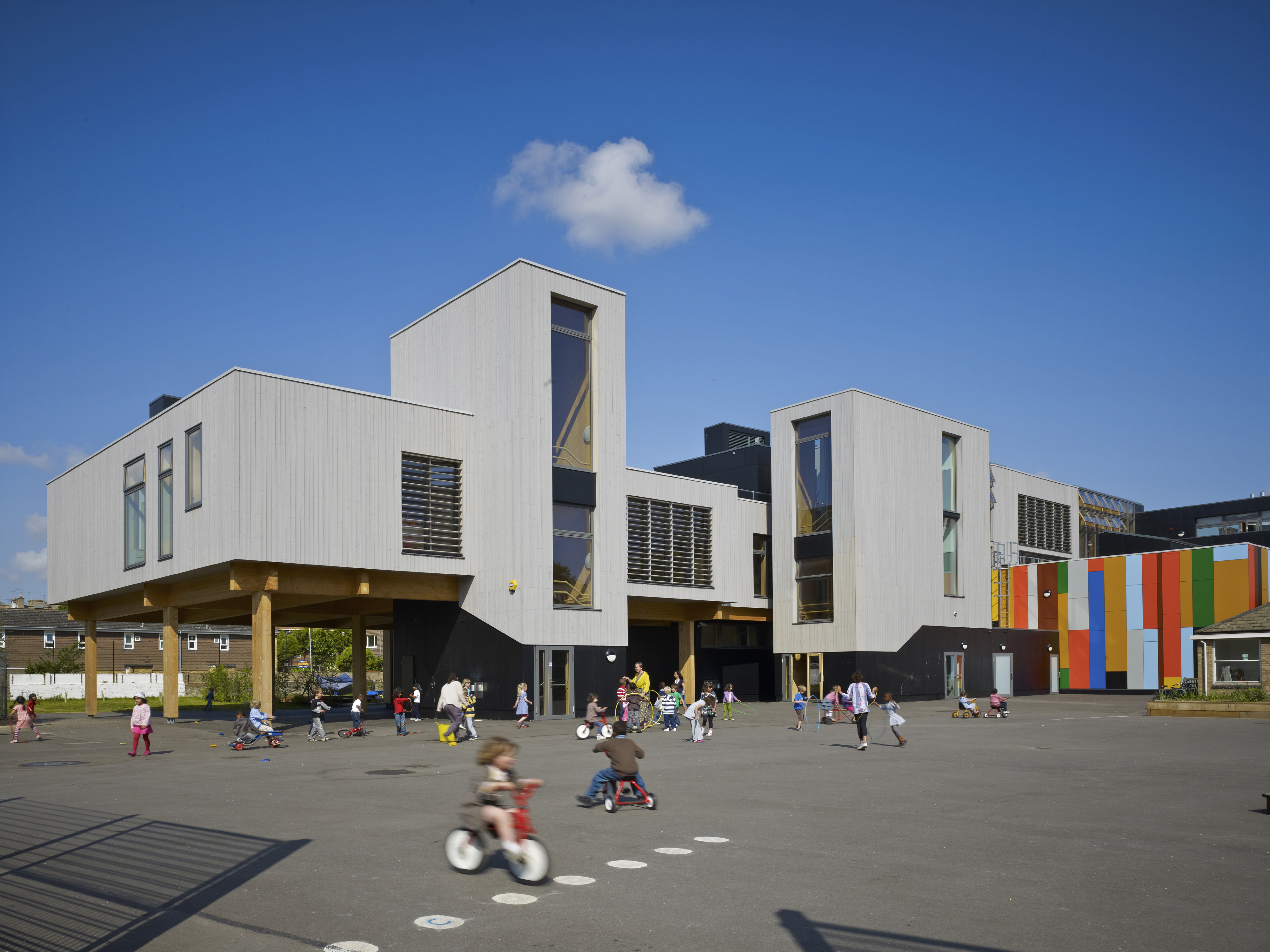

The school has a colourfully clad facade, which was developed by school as part of the collaborative building process. The administration block follows the road to the north of the site and a spine of classrooms run south from this building.

Construction throughout is mass cross-laminated timber, an Austrian extension of glulam (KLH) involving multiple layers of softwood in prefabricated panels that can span substantial lengths to serve as roof or floor. It is a sustainable material involving 920 tonnes of sequestered carbon, and it also allowed quick, relatively clean assembly, an important consideration as the school was in use throughout the build.

Heating is by underfloor pipes, partly fed by a ground-source heat pump with a 100-metre sump, but also with a conventional back up. When the building is in use the children warm it, and ventilation becomes the problem, exacerbated by build-up of carbon dioxide.

Ceiling heights of up to four metres combined with tall windows reduce dependence on electricity. Water usage has been restricted as far as possible by time-sensor taps, low-consumption fittings, and automatic shut-off in case of leaks. A separate source of cooled drinking water is supplied at every classroom sink.

Data

  • Begun: Jul 2007
  • Completed: Aug 2010
  • Floor area: 2,672m2
  • Sector: Education
  • Total cost: £7.4M
  • Procurement: PPC 2000 Partnering
  • CO2 Emissions: 20.11kg/m2/year
  • Address: Lauriston School, Rutland Road, London, E9 7JS, United Kingdom

Professional Team
