Heathfield Primary School

Holmes Miller, Ayr, 2011


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in


Andrew Lee (website)     Download Original

  • Site plan
  • Ground floor plan
  • First floor plan
  • Elevation
  • Elevation

Extension and rationalisation of a primary school to provide enlarged dinning and sports facilities

Connected to an existing Victorian school the extension contains a gym hall with a timber sprung floor and lacquered birch plywood wall linings, which can be partitioned into two spaces. A state of the art stage that doubles as a drama studio is connected to the hall, and associated changing facilities are adjacent to it.

The dining room is housed within a glulam timber structure with perimeter overlooking walkways, picture windows and cantilevered projecting music and tutorial rooms.

The orginal school gym hall has been converted into staff accommodation with a mezzanine built over a core of new toilets, IT area, lockers and tea point. An informal seating area is placed in the connected double height volume.

The existing school has been rationalised with all classroom doors and circulation areas upgraded in matching bold colours to the extension.

Landscaping provides the school with a new pedestrian access route, guiding students through the playgrounds to the main entrance that has a large over hanging brick corner feature.

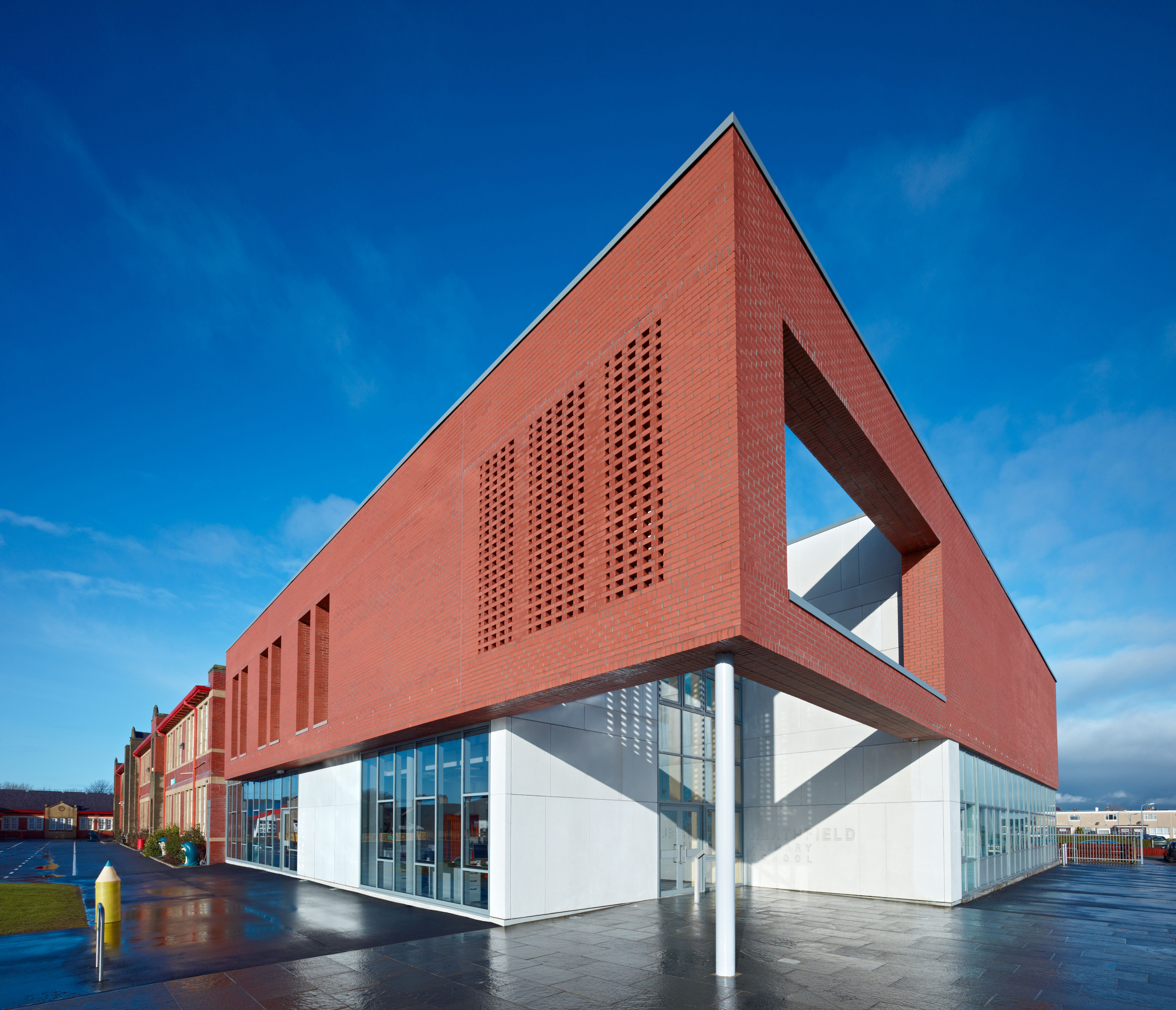

The buildings facades are a combination of brick and glazing. Clipped roof lines and deep brick soffits maintain the simplicity of the building form, while half brick header courses carry the existing school building's horizontal lines through the new development.


  • Begun: Mar 2010
  • Completed: Feb 2011
  • Floor area: 4,183m2
  • Sector: Education
  • Total cost: £3.7M
  • Procurement: Standard Building contract with Quantities for use in Scotland SBC/Scot 2005 (2009 revision)
  • Address: Heathfield Primary School, Heathfield Road, Ayr, KA7 1UT, United Kingdom
