Stratford Market Depot

Wilkinson Eyre Architects, London, 1998



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

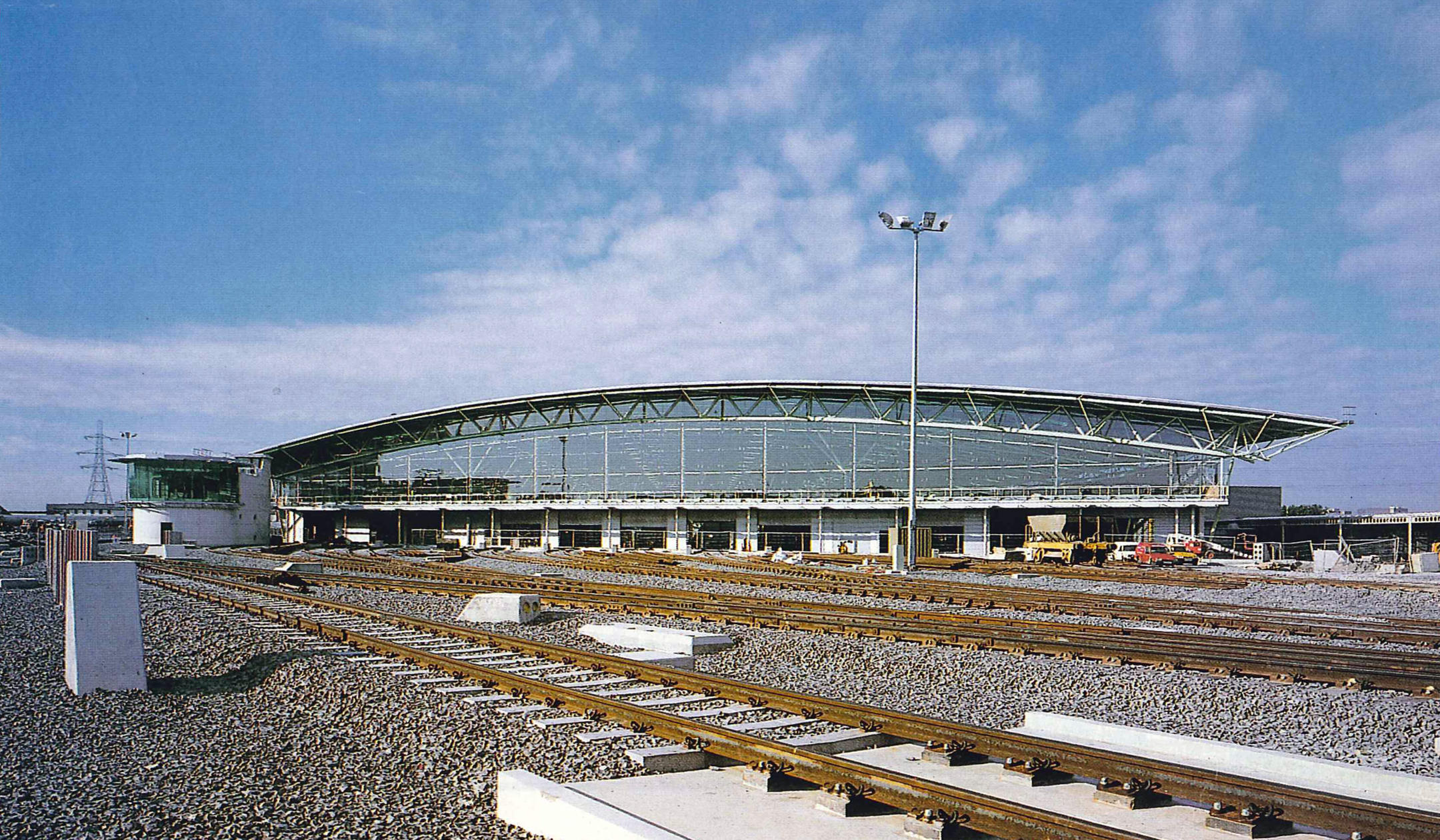

View of fully glazed south facade

Dennis Gilbert (website)     Download Original

  • View of fully glazed south facade
  • East elevation
  • Side elevation showing structural elements and glazed first floor
  • Glazed circular control room overlooking railway tracks
  • Facades of maintenance shed and office building
  • South gable elevation with KalWall cladding
  • Traction sub station
  • Free standing WC pod against KalWall clad wall
  • Interior view of the roof structure
  • V shaped columns of perimeter shed
  • North elevation glazed wall
  • Ancillary spaces along western side
  • Aireal view of site
  • Site plan showing relationship to Stratford region station
  • Main plan
  • Section
  • Section through wall and roof
  • Isometric of wall and structure

New complex providing train maintenance and storage facilities alongside extensive office and ancillary buildings

A ‘supershed’ was the ideal solution for the main train shed – an industrial building of considered design, providing flexible, durable space.

A 100m-wide, 190m-long arched roof covers 11 maintenance bays. The economical long-span structure provides good daylight and eight metres of clear headroom above the tracks.

The parallelogram shape of the building suggested the use of a diagrid rather than a conventional orthogonal grid, and this generated the concept for a space-frame roof. This is supported by tree-like columns which spread the load onto the v-shaped supports at the perimeter, and is cut with diagonal slit windows allowing sunlight to flood the space below.

Data

  • Begun: Apr 1994
  • Completed: Mar 1998
  • Floor area: 18,720m2
  • Sector: Transport
  • Total cost: £18.7M
  • Address: Burford Road, Stratford, London, E15 2ST, United Kingdom
