Hilly Fields

Marjoram Architects, London, 2023



T8JL574UWN6TN10__DSF6881-Crop

    Download Original

  • T8JL574UWN6TN10__DSF6881-Crop
  • T8JL574UWN6TN10__DSF6863-CROP
  • T8JL574UWN6TN10__DSF6874
  • T8JL574UWN6TN10__DSF6858
  • T8JL574UWN6TN10__DSF6847
  • T8JL574UWN6TN10__DSF6840
  • T8JL574UWN6TN10__DSF6808
  • T8JL574UWN6TN10__DSF6784
  • T8JL574UWN6TN10__DSF6776
  • T8JL574UWN6TN10__DSF6756
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-ground_and_first_floor_plans
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-second_Floor_and_roof_plan
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-Sections_pres
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-elevations_pres
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-Massing_option_appraisal
  • T8JL574UWN6TN10_Hilly_FIelds_Drawings-Detail_study

Hilly Fields is a unique whole house refurbishment with rear extension and loft conversion located within the Brockley Conservation Area and opposite Hilly Fields park.

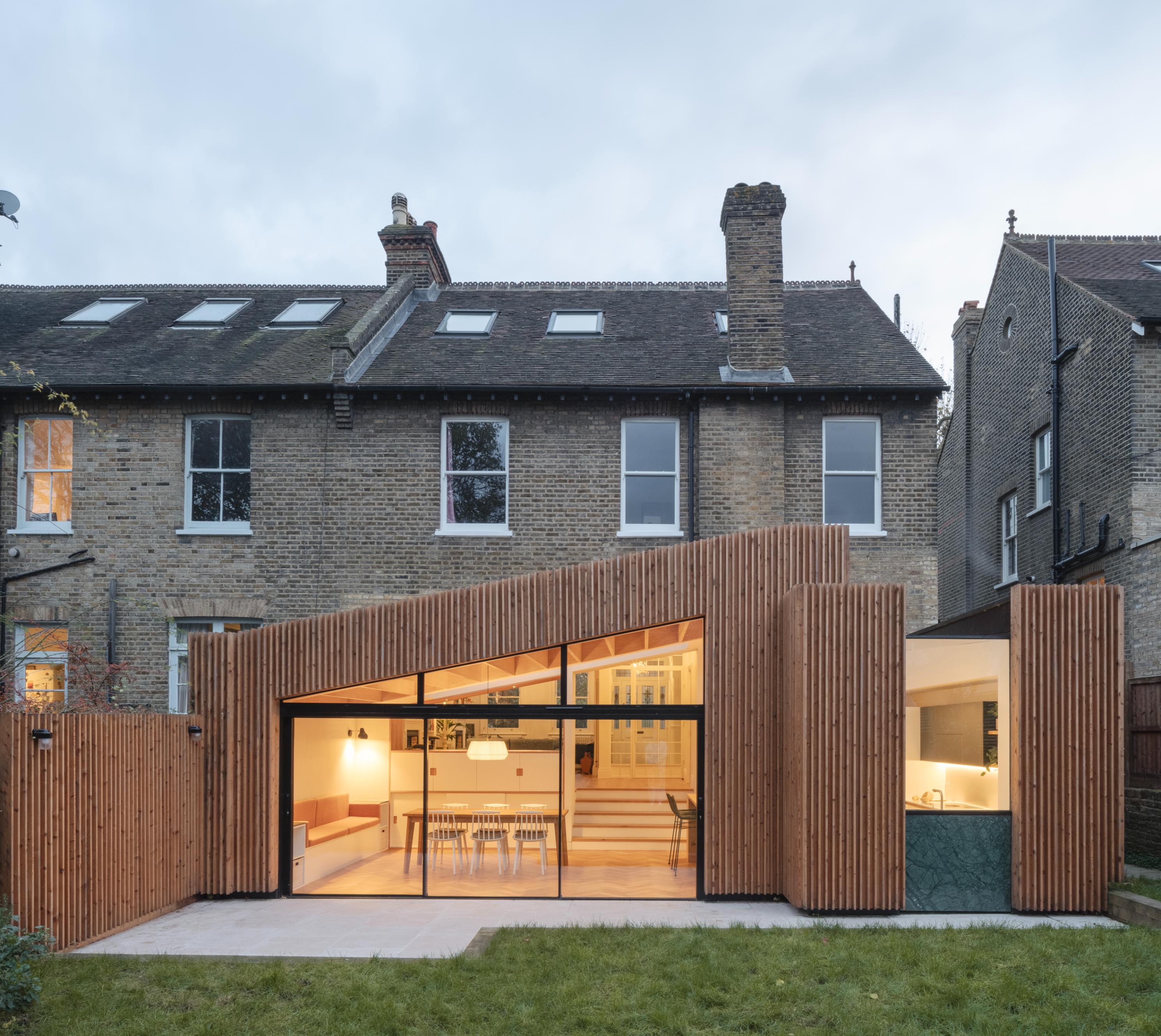

The brief was to replace the existing outrigger with a full-width extension housing a new kitchen and social living/dining space while addressing the steep level change with the rear amenity space. The new ground floor extension is a bold statement, drawing inspiration from Scandinavian building form and materiality. A sensitive loft conversion repurposes the existing roof space into a master bedroom with an en-suite, avoiding a dormer structure. Internally, the extension is divided into two zones: the kitchen and social space. Soft, light tones with contrasting accent colours and joinery complement the kitchen, which features a central island. A feature up-and-over window brings natural daylight into the heart of the kitchen, while a full-length roof light above the social dining space and within the sloping green roof enhances brightness. Exposed Douglas Fir rafters create a ribbed ceiling effect, perceptively increasing volume and adding a tactile finish. Externally, Siberian Larch timber fins in a hit-and-miss arrangement follow the extension’s form, creating a warm contrast against the existing London Stock brick. A panel of Verde Guatemala Marble cladding complements the strip of vertical glazing, breaking up the timber façade as it returns around the side elevation. A sloping green roof softens the outlook from first-floor windows, enhances biodiversity, and improves surface water attenuation.

Data

  • Begun: Jan 2023
  • Completed: Dec 2023
  • Floor area: 77m2
  • Sector: Residential
  • Total cost: £350,000
  • Funding: Client funded
  • Procurement: Traditional Procurement - RIBA Domestic Building Contract
  • Address: London, SE4 1QA, United Kingdom
