Brick Lintel House

Klas Hyllén Architecture, Bradford on Avon, 2021



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_01

Photos by Hide Film     Download Original

  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_01
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_02
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_03
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_05
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_06
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_08
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_09
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_18
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_19
  • 3BFNQ9O9ODN76JL_KHA_BrickLintelHouse_22
  • 3BFNQ9O9ODN76JL_Location_and_Site_Plan
  • 3BFNQ9O9ODN76JL_Ground_Floor_Plan
  • 3BFNQ9O9ODN76JL_First_Floor_Plan
  • 3BFNQ9O9ODN76JL_Sections
  • 3BFNQ9O9ODN76JL_3D_Axonometric

This project is an example of what can be achieved with the most common of British house typologies: the ex-council house semi

Up and down the country this is a well-established layout – a modest two up, two down with a galley kitchen and a draughty conservatory. Just enough space to squeeze a car onto the drive, but not enough space for a 21st century family internally or externally.

The convention is to move up the property ladder but this family chose to invest in what they already had and instead renovate and extend the house to suit their needs. Materially and spatially, it is a contemporary addition fit for modern family life.

The layout of rooms to the existing house is largely retained, with the ground floor corner taken out to open up generously to a new full width rear garden extension. This is the new heart of the house as a kitchen/dining space. An asymmetric roof form to the extension allowed for a new home office within the eaves of the new extension whilst leaving a part double height space over the new kitchen island. Views down into this space from the upstairs landing is now a favourite with the children checking what’s for dinner. The asymmetric roof also satisfies the planners’ desire for any new addition being volumetrically subservient and set back from the front.

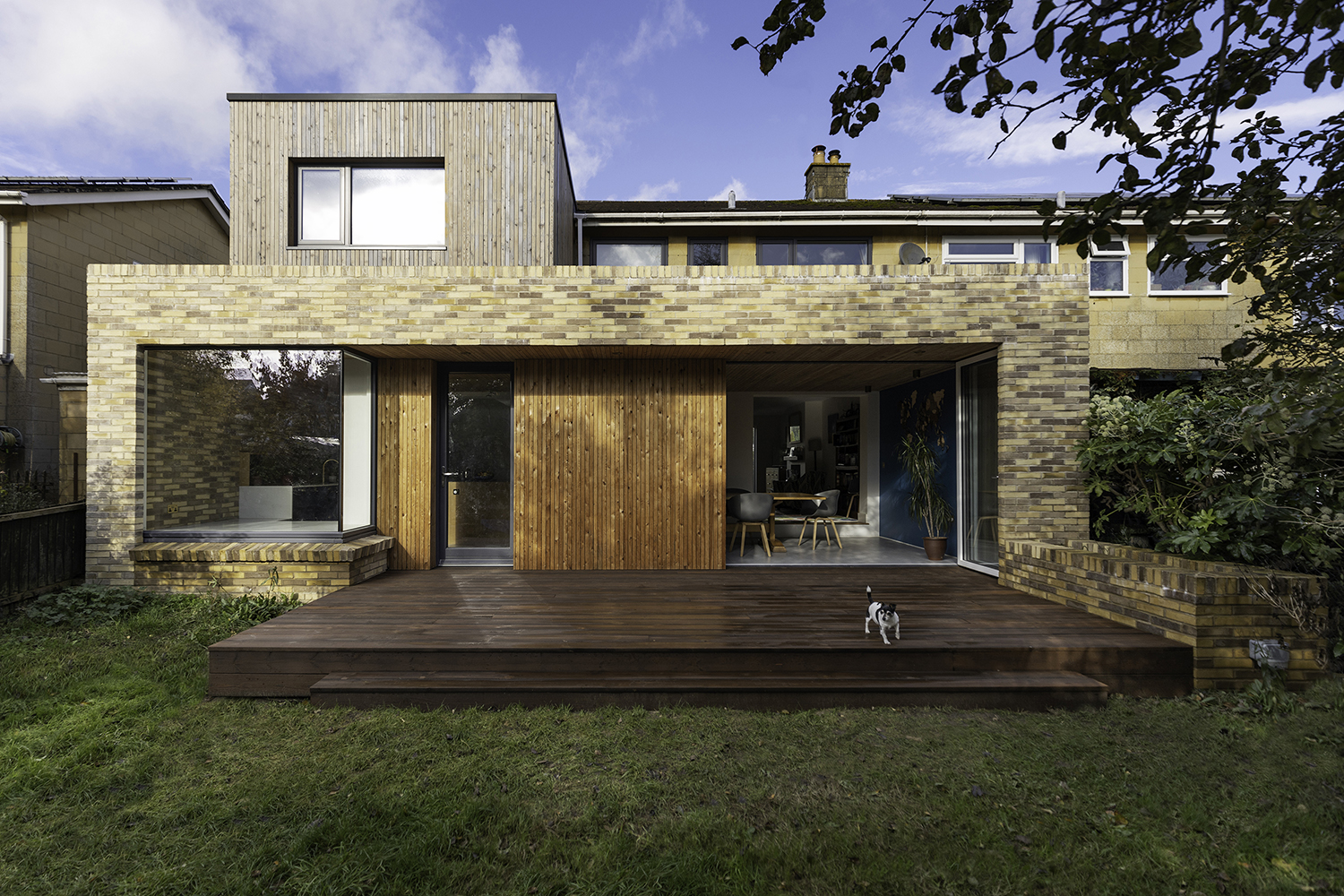

Externally, the extension is finished to a combination of vertical larch battens and a clay brick, both materials chosen to emulate the predominant local buff stone whilst remaining distinctively new. To the rear a deep overhang creates a sheltering canopy to the south facing elevation with the larch clad soffit extending internally to create an interior rich in warm colours, blended with a brick backdrop wall and brass details.

Data

  • Begun: Mar 2021
  • Completed: Oct 2021
  • Floor area: 171m2
  • Sector: House
  • Total cost: £344,500
  • Funding: Private
  • Tender date: Oct 2019
  • Procurement: RIBA Domestic Building Contract 2018 - traditional procurement with KHA as contract administrator
  • CO2 Emissions: 1.49kg/m2/year
  • Address: Bradford on Avon, BA15, United Kingdom
