4 Chestnut Road, Yardley Gobion

Adrian Morrow Architects, Towcester, 2021



CDFNAZNTO7OWZ7F_4_Chestnut_Road_1r

All photographs Dave Thrower of Redshift Photography     Download Original

  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_1r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_6ar
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_11r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_12r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_13r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_15r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_17r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_20r
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_21ar
  • CDFNAZNTO7OWZ7F_4_Chestnut_Road_26r
  • CDFNAZNTO7OWZ7F_080.A104.Ground_floor_plan
  • CDFNAZNTO7OWZ7F_080.A106.First_floor_plan
  • CDFNAZNTO7OWZ7F_080.A107._East_and_South_elevations
  • CDFNAZNTO7OWZ7F_080.A108.West_and_North_elevations
  • CDFNAZNTO7OWZ7F_080.A203A.Section_E-E
  • CDFNAZNTO7OWZ7F_080.A204.Section_F-F
  • CDFNAZNTO7OWZ7F_080.A207.Section_J-J
  • CDFNAZNTO7OWZ7F_080.A304.Rooflight_detail
  • CDFNAZNTO7OWZ7F_080.A303.Verge_and_abutment

Demolition of dilapidated north wing, extensive underpinning and alterations to the existing external wall so two new elements could be added incorporating open-plan accommodation.

This site is located within the Yardley Gobion Conservation Area. The extensions are of two contrasting architectural forms. These being, firstly, the new monopitch roofed north wing. This leans against the existing north façade and extends westwards, forming a bookend for the new flat roofed garden room.

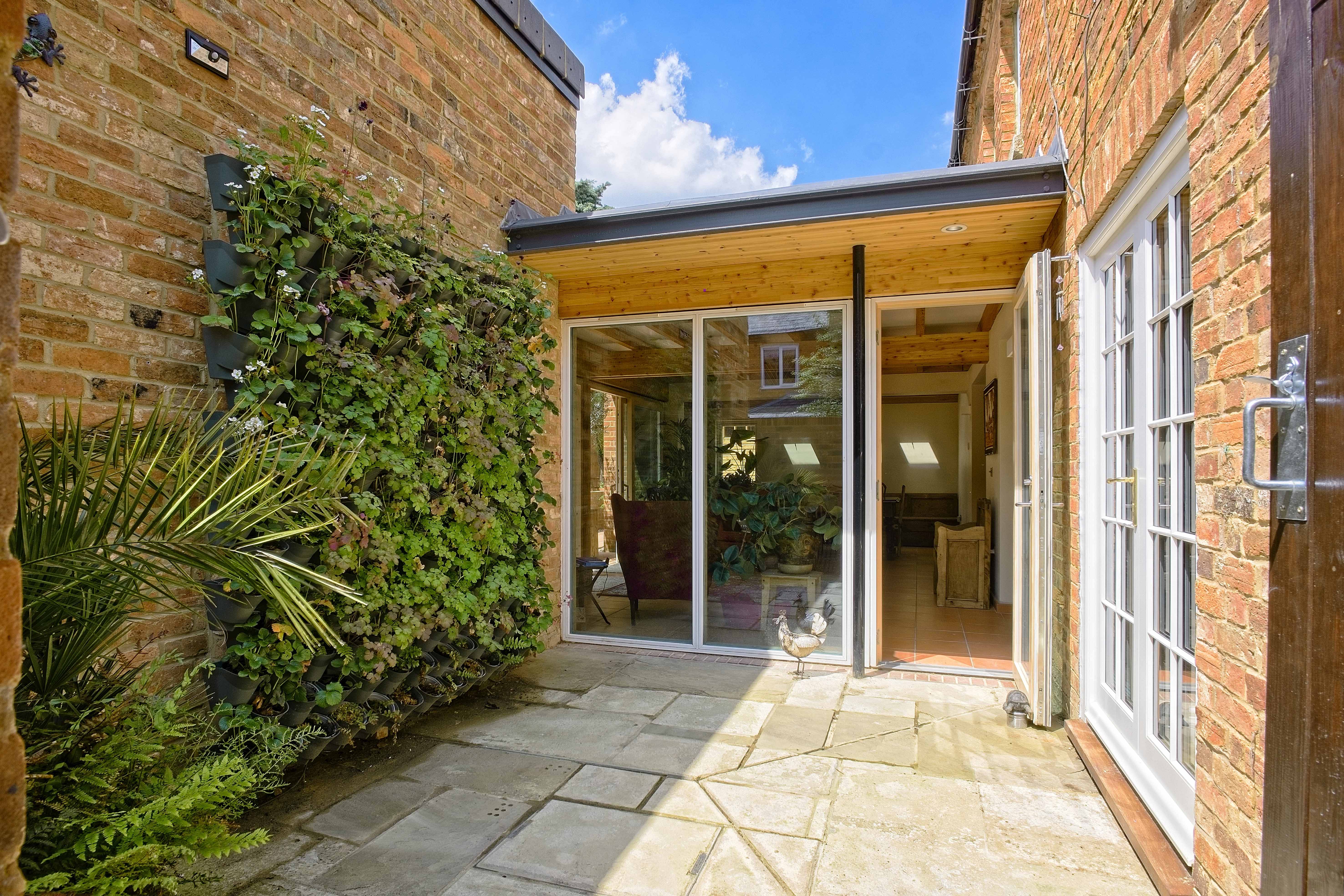

To the eastern side, the garden room is contained by the existing garage. This was re-roofed in a monopitch roof to accommodate the flat roof. Between the existing garage and lounge a new stone paved courtyard garden has been provided. In the Lounge the existing floor and flat roof were replaced, existing walls were internally insulated and a new pair of French doors delivers additional daylight.

The new garden room is constructed with an exposed timber post, beam and rafter structure, following the example of the existing 1830s front room. Two large sliding doors give near level access to the new Spanish quarry tiled patio. New red engineering brick steps connect the patio to the high-level part of the back garden. The flat roofed elements extend outwards beyond their glazed walls to provide passive solar control.

Sustainable systems incorporated include very high levels of insulation, wind-tightness and airtightness together with rainwater harvesting. The existing well was glazed over and incorporated into the kitchen. An existing historic door was upgraded to provide the required fire resistance.

Data

  • Begun: Mar 2019
  • Completed: Oct 2021
  • Floor area: 273m2
  • Sector: Residential
  • Total cost: £299,000
  • Funding: Private
  • Tender date: Oct 2018
  • Procurement: JCT minor works
  • CO2 Emissions: 42kg/m2/year
  • Address: Chestnut Road, Yardley Gobion, Towcester, NN12 7TW, United Kingdom
