Terminal 5 Heathrow

Rogers Stirk Harbour + Partners, London, 2008


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in


BAA     Download Original

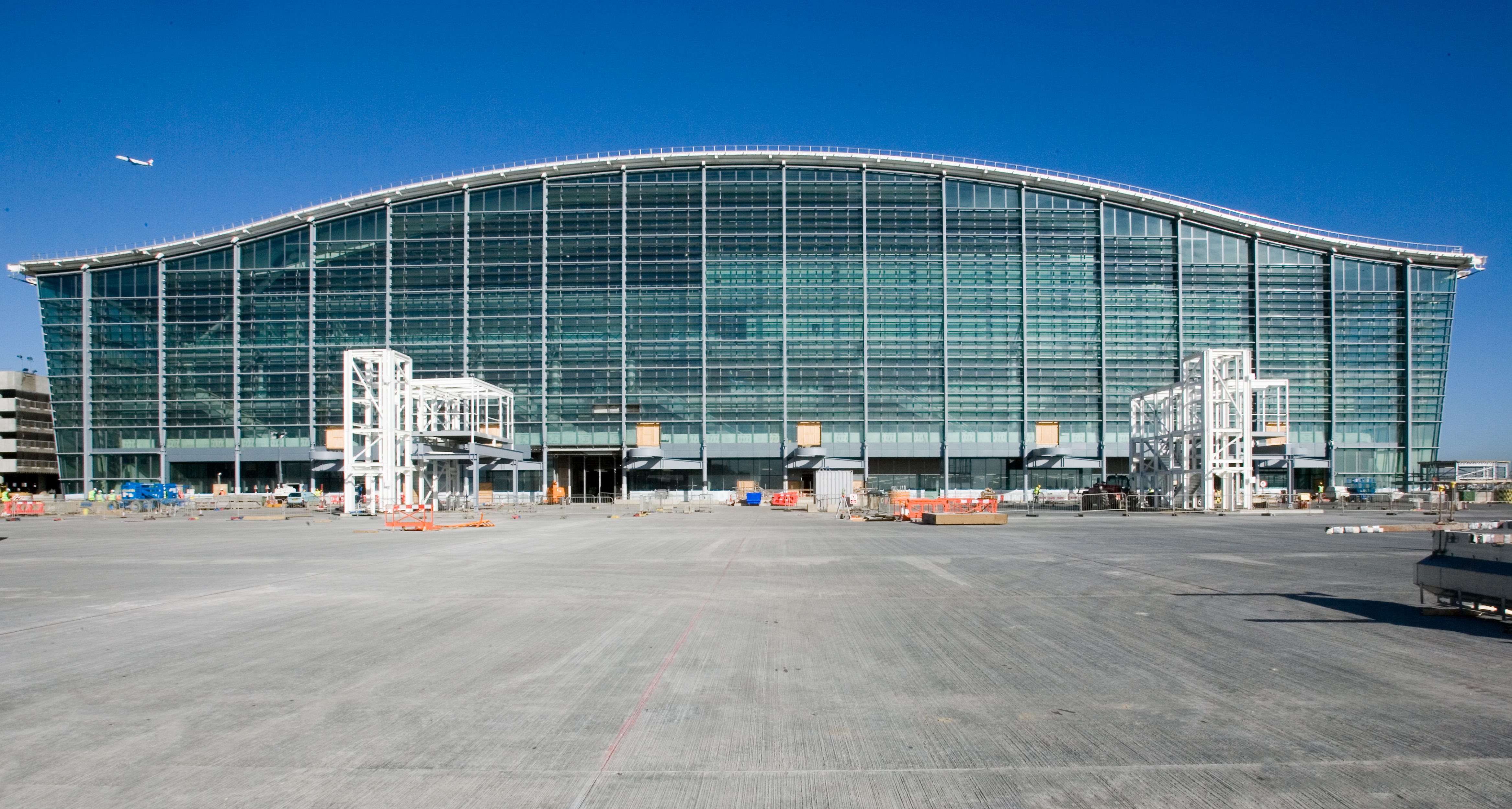

  • East facade
  • Control tower
  • Control tower
  • Terminal 5 exterior
  • Terminal 5 view from distance
  • Structure and glazing
  • Structure and roof
  • Check-in hall
  • View from airport
  • Ceiling and glazed facade
  • Baggage hall
  • Structure and ceiling
  • Baggage in hall
  • Plan of check-in
  • Plan of departures
  • Section
  • Technical section
  • Render of exterior
  • Render of departures lounge

Global hub for British Airways at Heathrow Airport, designed to handle 35 million passengers a year

The main terminal is a long-span ‘envelope’ with a flexibility of internal space conceptually similar to that of the practice’s much earlier design for the Pompidou Centre in Paris.

Departure and arrivals areas, check-in desks, commercial space, retail, offices, passenger lounges, back-up and other facilities are all contained within freestanding steel-framed structures inside the building and can be dismantled and reconfigured as future needs change.

The multi-level scheme is contained beneath a curved floating roof, supported by slim columns at the perimeter edges. Passengers depart and arrive in a terminal building which offers generous spaces and views across the airport.


  • Begun: Sep 2002
  • Completed: Mar 2008
  • Floor area: 371,520m2
  • Sector: Transport
  • Total cost: £43M
  • Address: Heathrow Airport, London, TW6 2, United Kingdom
