KHBT, Liverpool, 2017


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

JohannesMarburg_Un-veiled_KHBT_RIBA North

Johannes Marburg (website)     Download Original

  • JohannesMarburg_Un-veiled_KHBT_RIBA North
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_00
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_01
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_02
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_03
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_04
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_05
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_06
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_07
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_08
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_09
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_10
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_11
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_12
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_13
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_14
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_15
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_16
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_17
  • JohannesMarburg_Un-veiled_KHBT_RIBA North_18
  • Un-veiled_RIBA North_Concept_KHBT-01
  • Un-veiled_RIBA North_Diagram 1_KHBT
  • Un-veiled_RIBA North_Diagram 2_KHBT
  • Un-veiled_RIBA North_Diagram 3_KHBT
  • Un-veiled_RIBA North_Plan_KHBT
  • 170601_KHBT_Riba North_sections_G-00
  • 170601_KHBT_Riba North_sections_L-00
  • 170601_KHBT_Riba North_sections_M-00
  • 170601_KHBT_Riba North_sections_Y-00
  • Un-veiled_KHBT_Projector set up
  • Un-veiled_KHBT_Knitting the mesh
  • Un-veiled_KHBT_Projecting the setionc on mesh
  • Un-veiled_KHBT_Construction Process 01
  • Un-veiled_KHBT_Construction Process 02
  • Un-veiled_KHBT_Construction Process 03
  • JohannesMarburg_Un-veiled_KHBT_Fixing of mesh
  • Un-veiled_KHBT_Fixing of mesh
  • Un-veiled_KHBT_mesh and net substructure

Accessible intervention for the opening of RIBA North in Liverpool in June 2017 which drew on the architectural heritage of the North.

To mark the launch of RIBA North in June 2017, Un-veiled visually and spatially interpreted the aims and purpose of the new national architecture centre.

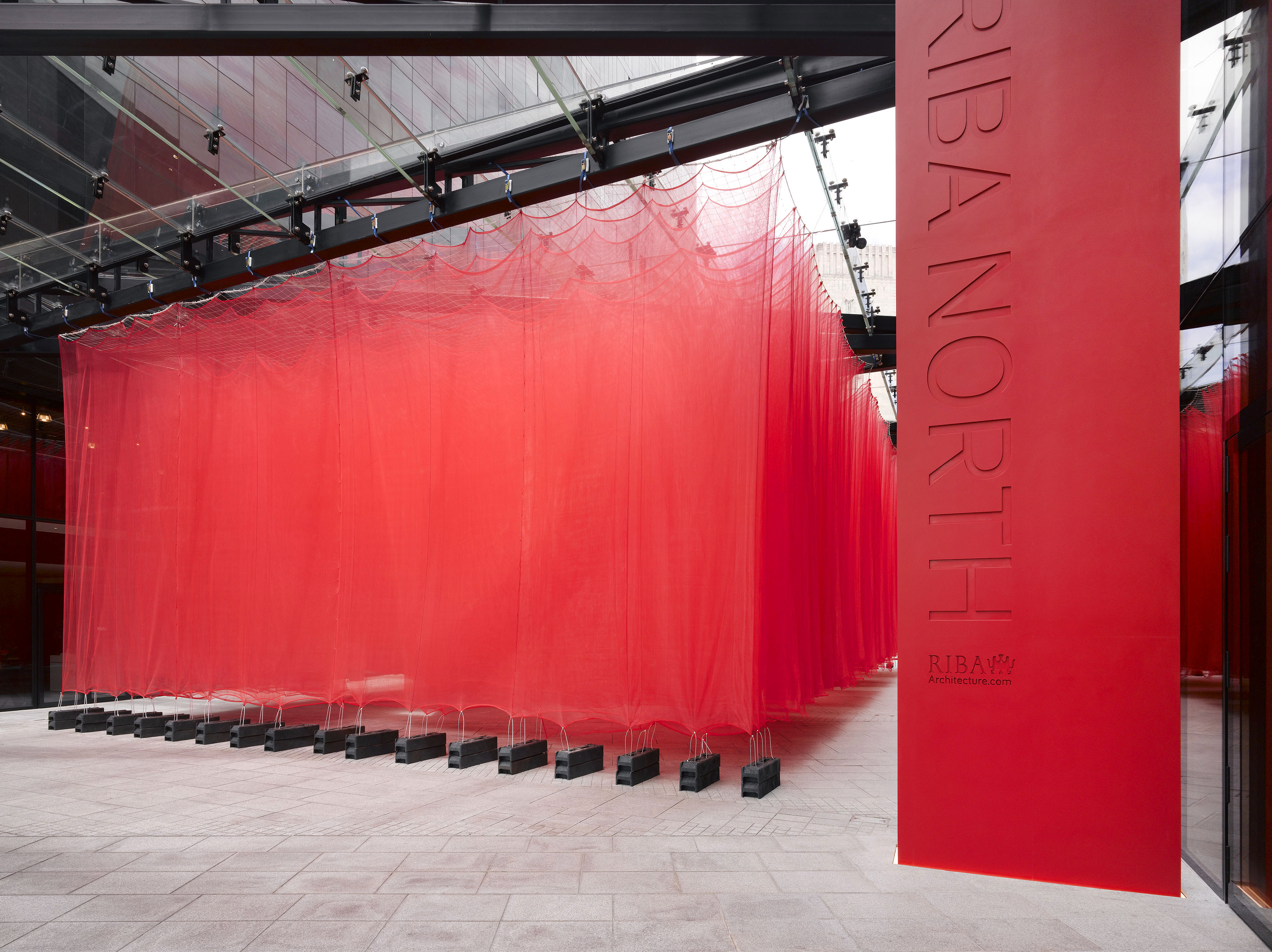

The resulting pavilion in the Winter Gardens, a covered public area at the entrance to RIBA North, used curtains of mesh fabric, used on building site scaffolding, to create sections through some of the most iconic architectural structures across the Northern Powerhouse. Scale negatives of these buildings wafted in and out of focus as visitors walked through, beyond and within The Sage in Gateshead, Imperial War Museum North, Liverpool Catholic Cathedral and York Minster.

More than 400,000 visitors have seen the installation throughout the summer. Once de-installed the material has been recycled to create another installation within the space and elsewhere.

The Intervention has been designed, detailed and constructed by KHBT. In line with the RIBA's educational mission, architecture students from the the John Moores University in Liverpool and the Manchester School of Architecture have supported the installation process.

As RIBA North is engaging the public in conversations and stories about architectural practice and buildings this was an opportunity to explore the notion of the design and the construction process itself where materials are compiled to become a building.

The installation drew on these integral elements of architecture, symbolised by a typical building site material that is used to create iconic structures. These structures became an immersive and accessible space within the entrance atrium of the Mann Island Building. The material used was a typical red mesh that usually covers building site scaffolding to protect the Architecture. The material also created a desired reference to the RIBA branding red.

The whole atrium has been filled with the mesh of which cavernous volumes had been cut out in the shape of typical iconic buildings of the North. The otherwise mundane material transformed into a precious artefact of the actual building itself which could be accessed and physically explored.


  • Begun: Jun 2017
  • Completed: Jun 2017
  • Floor area: 300m2
  • Sector: Arts and culture
  • Total cost: £14,000
  • Funding: RIBA and Shedkm
  • Tender date: Oct 2016
  • Procurement: Traditional
  • CO2 Emissions: -kg/m2/year
  • Address: RIBA North , 21 Mann Island, Liverpool Waterfront , Liverpool, L3 1BP, United Kingdom
