The Twist Pavilion

Emergent Technologies and Design, Birmingham, 2015



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



    Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

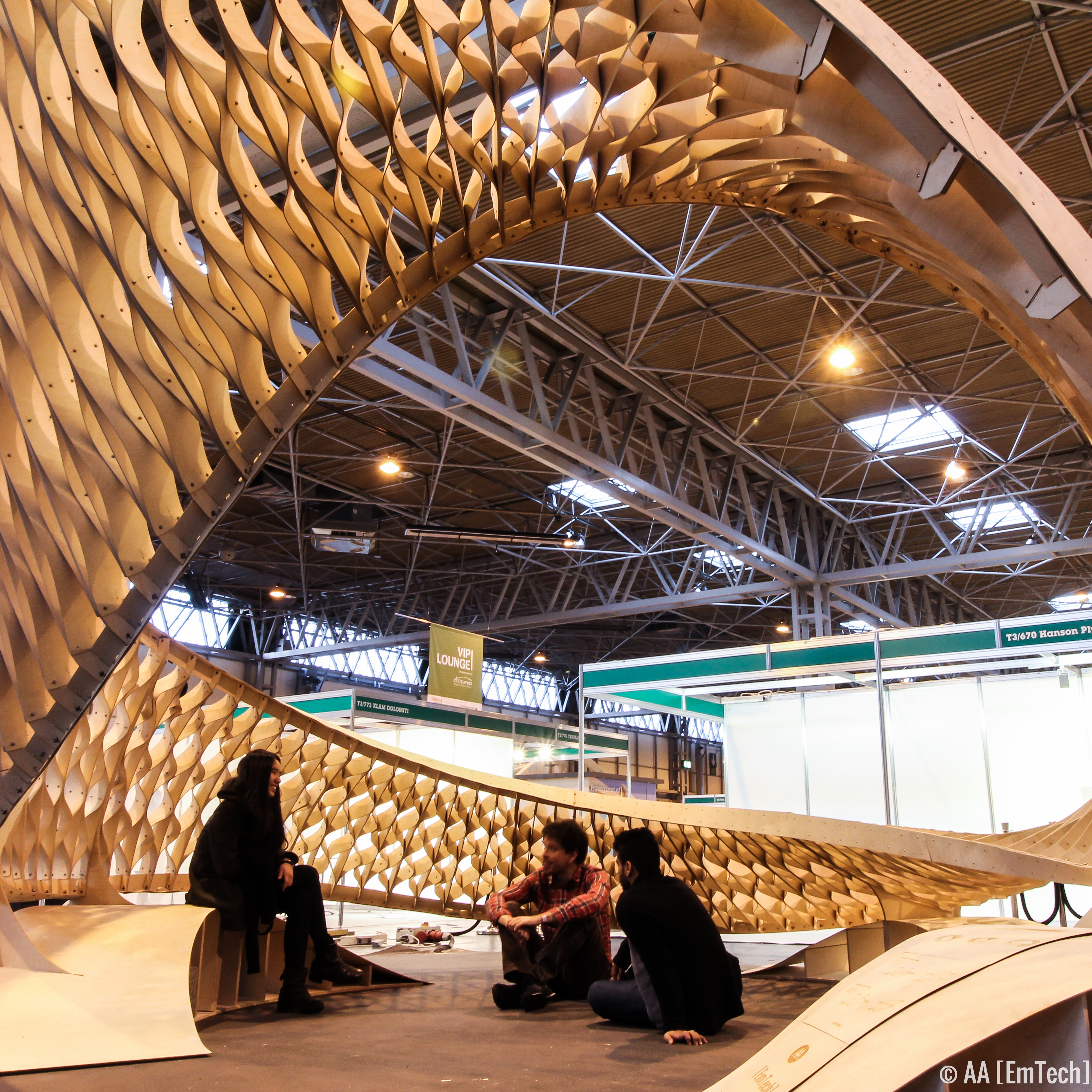

A student-built pavilion for the Timber Expo 2015

The Twist is a design and construction experiment of the 2015-2016 cohort of Emergent Technologies and Design at the Architectural Association Graduate School of Architecture.

Using 1:1 experiments, the students manipulated the material properties of thin plywood to develop articulated surfaces with variable orientation of its elements.

The system is composed of planar arcs that are CNC-milled from 6mm plywood sheets with the grain direction oriented for high longitudinal stiffness.

The other components are 120mm wide straight strips of 4mm ply with the grain perpendicular to their length. These are connected at specific angles and distances in order to obtain both bending and twisting.

A ’T’-shaped edge beam served to lock the geometry in place locate the rib elements during the assembly process.

Computational techniques used to generate forms were calibrated and tuned from the results of physical experiments. These tests identified the twisting angles that could be achieved with different end rotations and curve radii, giving the effective range of geometries, and served as the bridge between the physical and digital design.

Data

  • Begun: Oct 2015
  • Completed: Oct 2015
  • Floor area: 36m2
  • Sector: Arts and culture
  • Funding: Sponsorship
  • Procurement: self funded with material sponsorship
  • Address: Timber Expo 2015, National Exhibition Center, Birmingham, B40 1NT, United Kingdom
