Acoustic Shells

Flanagan Lawrence, Littlehampton, 2014



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



    Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

A stage and shelter beside the beach in Littlehampton

The brief called for a stage and shelter to be sited in a sunken garden beside the beach in Littlehampton. The architect's strategy was to create a pair of doubly curved sprayed concrete shells which emerge from the field of grass.

One shell faces the town and forms the principal bandstand. The acoustic design of the interior creates a reflective surface to project the sound of the performers to the audience in the sunken garden.

The other shell faces the beach and forms a more intimate structure as a shelter for listening to the sound of the sea or for buskers to perform facing the promenade.

The shell structures have been created without formwork with the concrete sprayed directly on to the reinforcement mesh. The majority of the concrete shell is only 100mm thick and relies on the double curved geometry to span the stage.

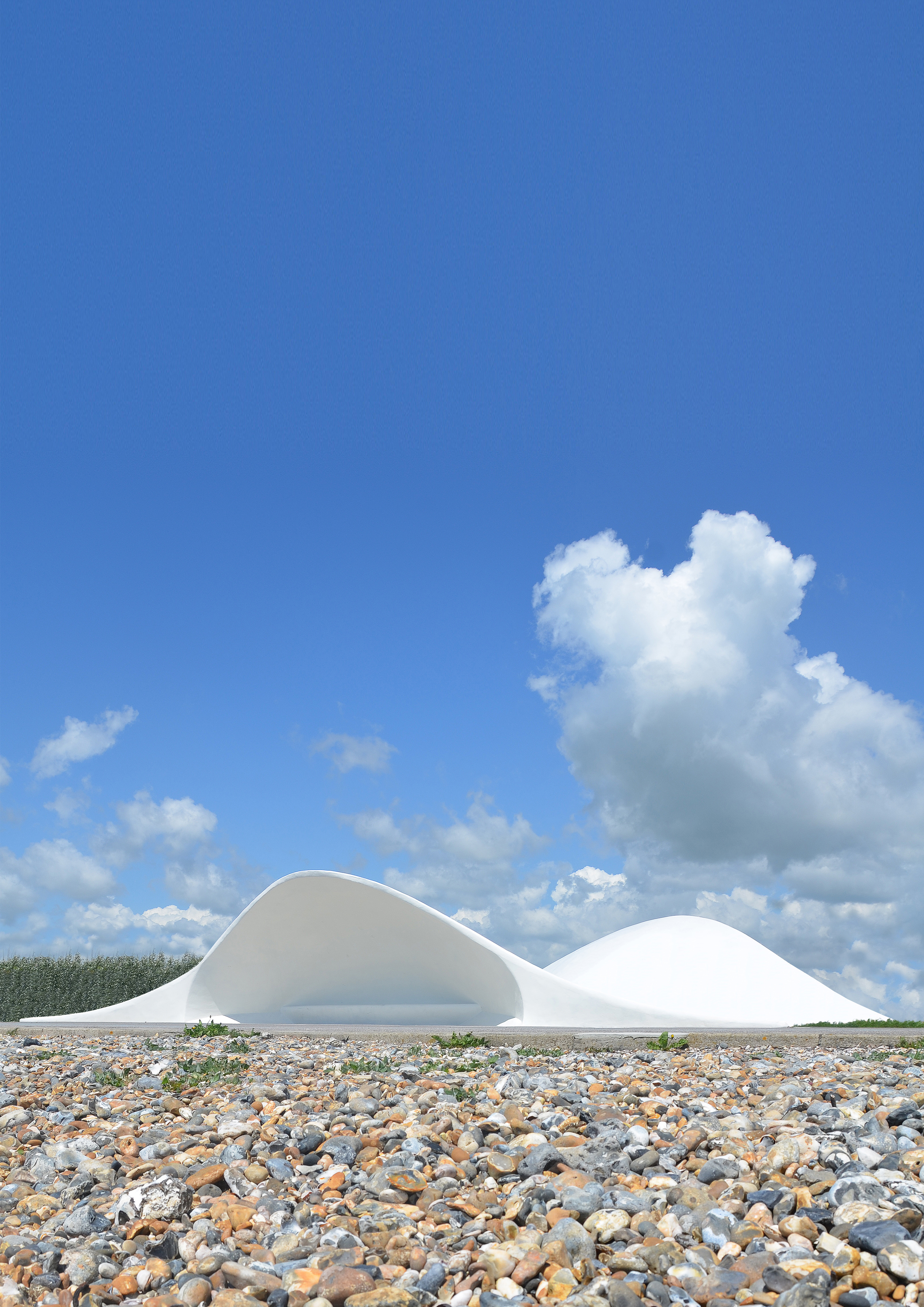

The two shells appear like white land forms emerging from the grass of the greensward. This reflects the historical context of the concrete sound mirrors along the south coast at Dungeness, and the visually striking form of the local sand dunes.

Data

  • Begun: Nov 2013
  • Completed: Apr 2014
  • Floor area: 30m2
  • Sector: Arts and culture
  • Total cost: £100,000
  • Funding: 100000
  • Tender date: Oct 2013
  • Procurement: Traditional
  • Address: Banjo Rd , Littlehampton, BN17 5LG, United Kingdom
