Enzo Ferrari Museum

Shiro Studio, Future Systems, Modena, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Studio Cento29 (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Location plan
  • Site plan
  • Gallery basement floor plan
  • Gallery ground floor plan
  • Gallery and House long section
  • Gallery long section
  • Gallery long section
  • Cross section
  • North elevation
  • West elevation
  • South elevation
  • Ferrari House ground floor plan
  • Ferrari House first floor plan
  • House long section
  • Jan_Kaplicky_original_Sketch
  • Hand
  • Jan_foundation_stone_Sketch
  • 1-100 glazing
  • Glazing_Study_Model
  • Car as Art
  • Eraly_car_Display_Model
  • DSCN3138
  • Roof detail

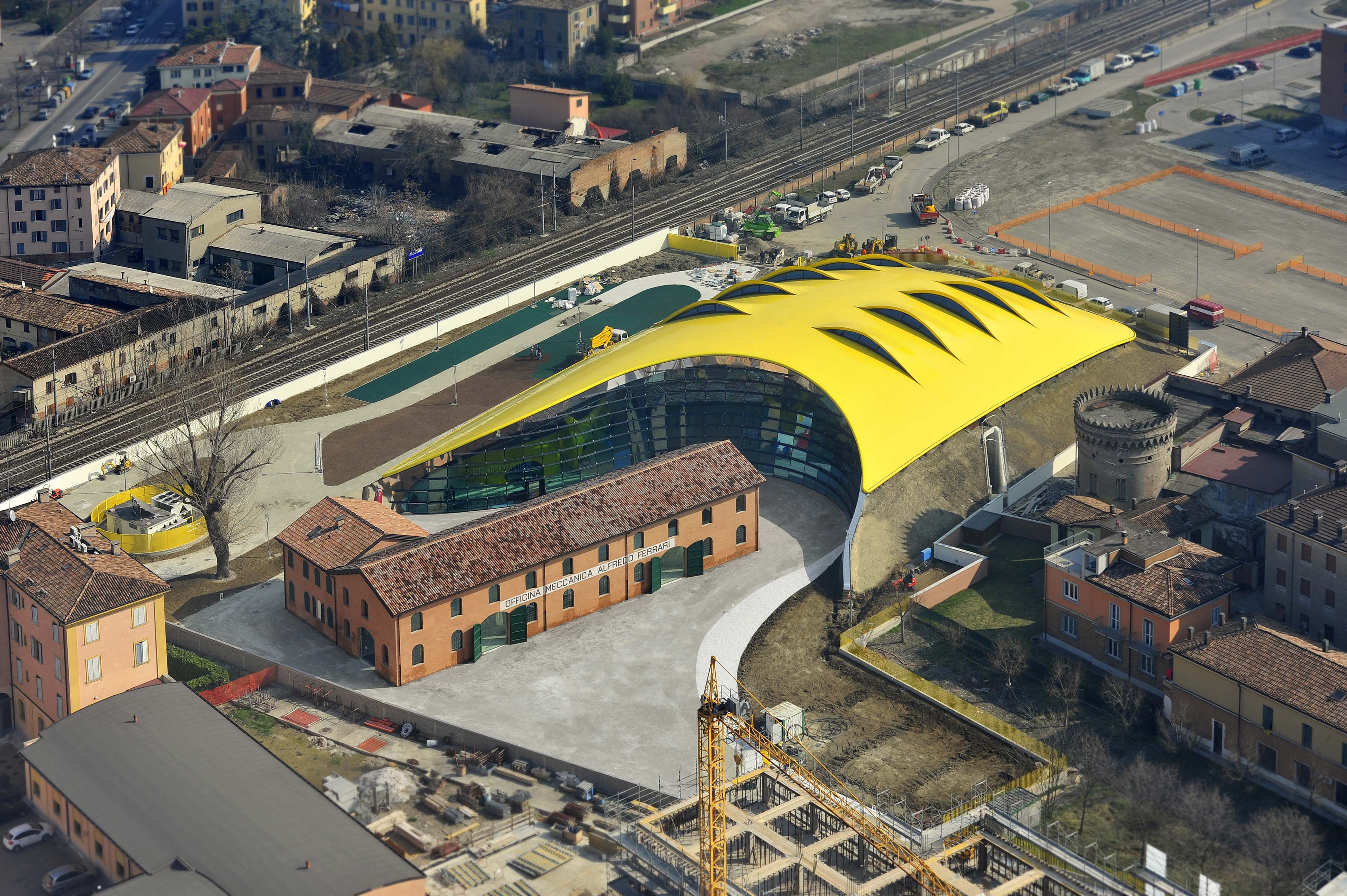

Gallery building that enwraps the original refurbished Ferrari workshop to form a museum dedicated to Enzo Ferrari

A multimedia display of pictures and films is housed within the nineteenth century red brick house where Enzo was born, with the adjoining 40 metre long double height workshop containing the main gallery space.

Tilted at an angle of 12.5o the double curved glazed facade of the new exhibition space is wrapped around the house. A giant single gallery space, which contains 21 historic sports and racing cars set on slim platforms, is housed under a 3,300 square metre double-curved aluminum T&G sheeted roof. The roof’s curve is supported by a concealed grid of narrow eight-part trusses and, at the museum’s entrance end, by two massive columns that splay into asymmetrical Y-forms.

The entrance area is connected to the exhibition level by ramp and staircase. At the bottom of the ramp, under the shelf formed by the entrance area, is teaching space, an audiovisual room and a conference hall.

Data

  • Begun: 2004
  • Completed: 2012
  • Floor area: 5,200m2
  • Sector: Arts and culture
  • Total cost: £11.4M
  • Address: Via Paolo Ferrari 85, Modena, 41121, Italy
