Hadspen Belvedere

ASD Projects, Pitcombe, Somerset, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



David Grandorge     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Floor plans
  • Sections
  • Elevations
  • Superstructure
  • Scale model
  • Scale model
  • Milling
  • Superstructure fabrication
  • Erection
  • Construction
  • Construction
  • Stair plans
  • Stair two section
  • Stair one section
  • Steel footings plan
  • Steel footings section
  • Steel footings section

Temporary structure constructed from locally sourced timber. The project was designed and developed by fourth year Architecture students at the London Metropolitan University

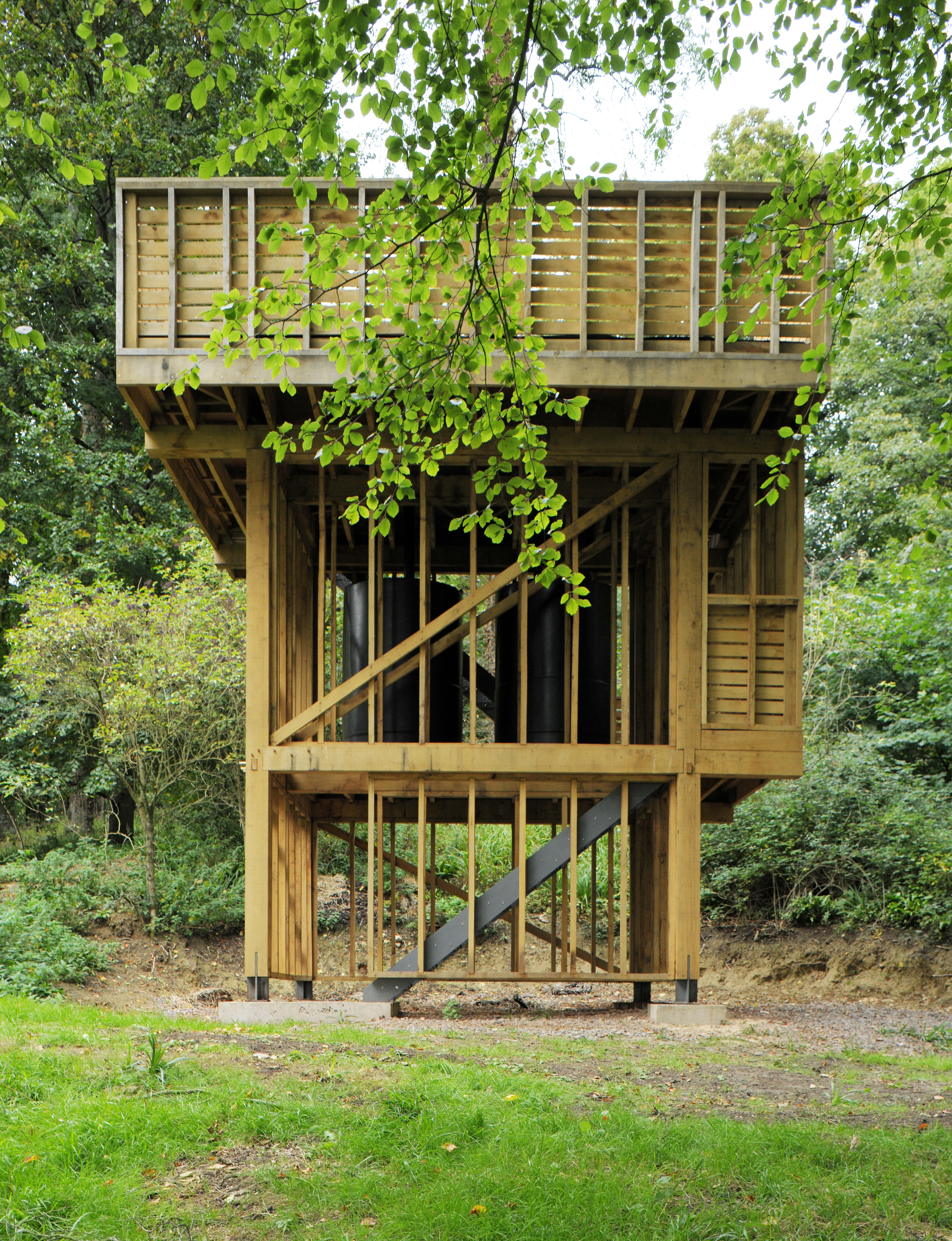

The filigree structure is sited on an escarpment to the north of Hadspen House in Somerset. Conceived of as a cage to hold and protect a valuable resource, it extends outwards as it rises from the ground, like the branches of a tree.

The belvedere is constructed of green oak, sourced mostly from within the Hadspen Estate. Rainwater is collected on its cantilevered roof deck and passes through two outlets to be stored in two tanks sited on its first floor. The water will be used to fill drinking troughs for pigs and for the irrigation of an orchard during dry spells.

The first floor is accessed through a steel stair with open riser and grated treads that that are porous to sunlight and are used for cleaning muddy boots. The upper floor is reached by a stair that brings one to an open room defined by it’s oak boards. Here one can observe the play of light in the leaves and branches of the ancient beech and other trees that surround the structure. In late autumn, when the trees have shed their leaves, views open up to distant horizons.

Data

  • Begun: Apr 2010
  • Completed: Apr 2010
  • Sector: Arts and culture
  • Address: Hadspen Belvedere, Pitcombe, Somerset, BA10, United Kingdom
