City of Manchester Stadium

Arup Associates, Manchester, 2002



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

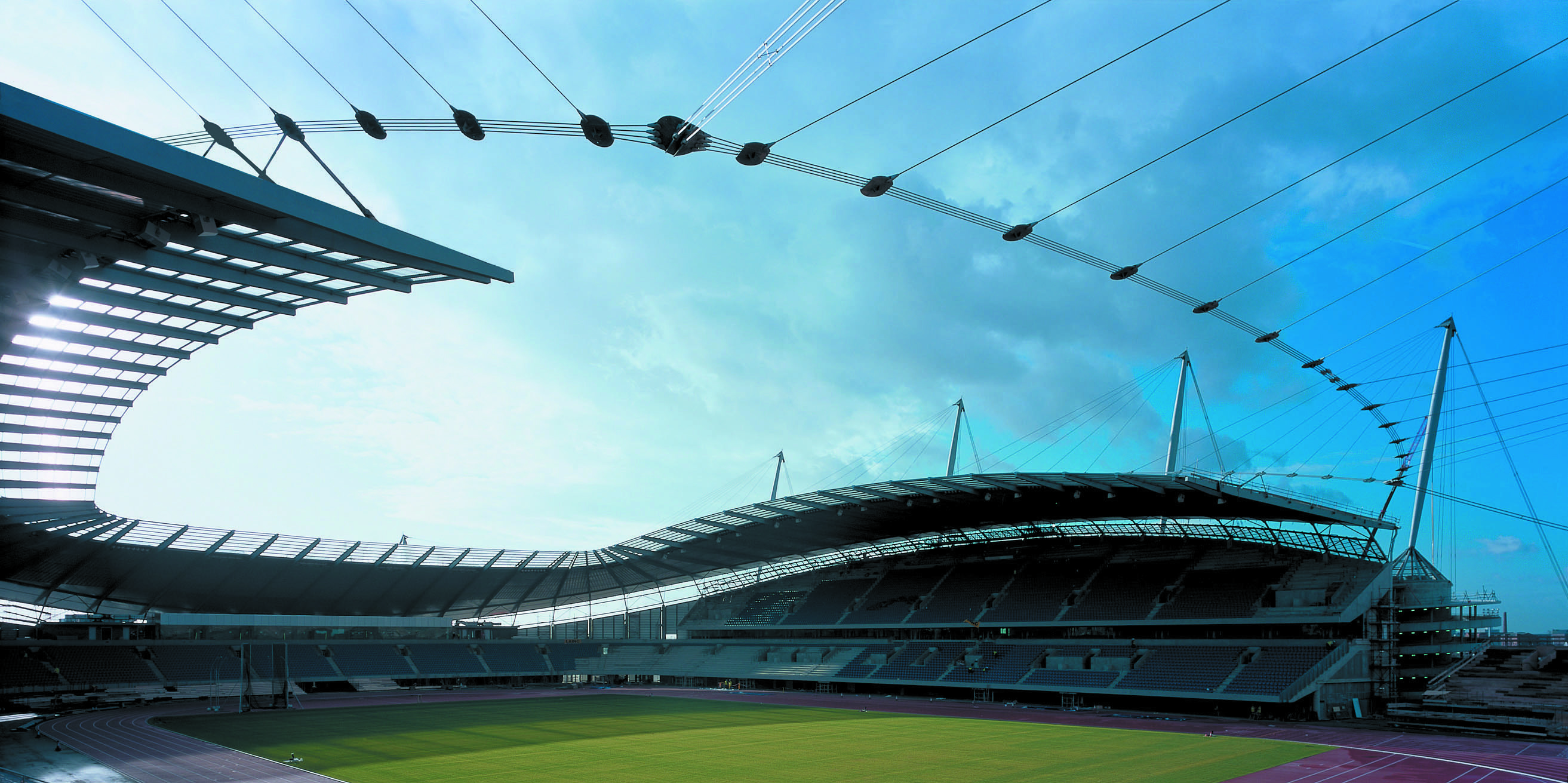

View from inside the bowl looking south from the temporary seating. The rest of the roof will be completed for football with a lower pitch and new seating

Dennis Gilbert/View (website)     Download Original

  • View from inside the bowl looking south from the temporary seating. The rest of the roof will be completed for football with a lower pitch and new seating
  •
  • New City of Manchester Stadium – backdrop to the Commonwealth Games 2002 and home to Manchester City FC
  • The west entrance showing one of the spiral circulation ramps. These are topped by masts which are anchored by cables with dogbone dampers and backstays
  • The view from the box level to the open louvres lining the stadium’s roof
  • Detail of the steep upper tier and roofline
  • The temporary moulded seats, masts and cable-net structure
  • the stadium’s environs are designed as an attractive ‘civic space’
  • Level 2 concourse with fixed tables and benches. Arup Associates worked on the concourse areas to create ‘airport-like’ spaces
  • The generous turnstile entry points
  • Aerial view of the stadium, showing the athletics configuration and temporary north stand
  • Site plan
  • Seating plan (football)
  • Roof plan (football)
  • Seating plan (athletics)
  • Roof plan (athletics)
  • West-east section (football)
  • North-south section (football)
  • North-south section (athletics)
  • West-east section (athletics)

Stadium built as the focal point for the 2002 Commonwealth Games and home to Manchester City FC with a capacity of 48,500

The stadium has been designed as a landmark, with the arrow-like masts supporting the roof a visible locator from miles around. It sits in ‘Sportcity’, which includes the institute, a tennis centre, and the Faulkner Browns-designed Velodrome.

The primary roof system is made up of the 12 perimeter masts, high-strength backstay rods and spiral strand forestay and tension-ring cables. The secondary or roof plate structural system comprises box section rafters arranged radially at approximately 8 metre centres supporting rolled steel purlins which in turn support either standing seam or polycarbonate roof cladding.

Glazing in a VIP area has been lined with an anti-shatter bomb blast film, and already the security is high in the environs of the stadium, with regular patrols of mounted police.

Data

  • Begun: Oct 1999
  • Completed: Mar 2002
  • Floor area: 68,983m2
  • Sector: Sports and leisure
  • Total cost: £101.8M
  • Procurement: Construction management
  • Address: Rowsley Street, Manchester, M11 3FF, United Kingdom
