Tisbury Garden Office

Studio May, Wiltshire, 2021



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

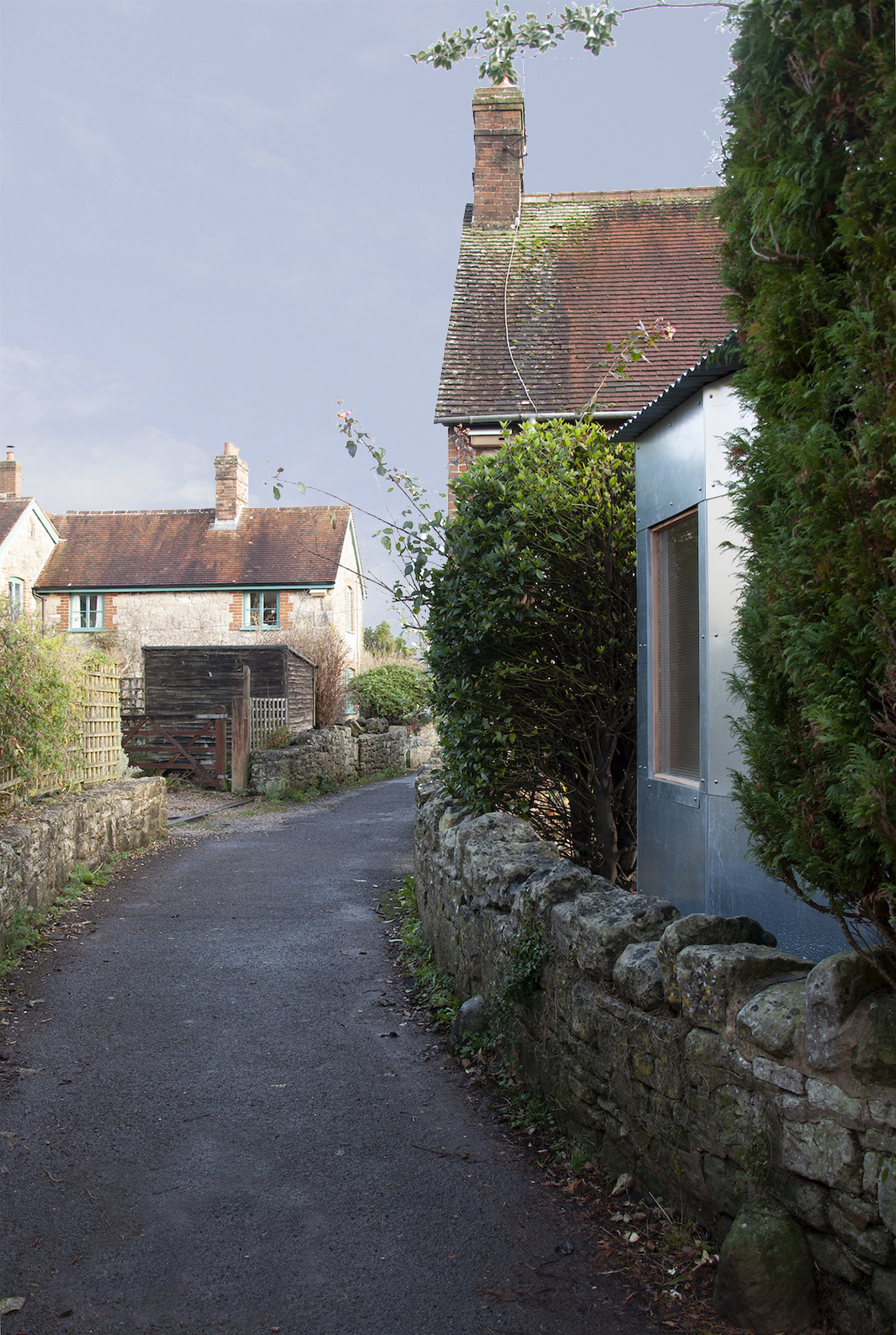

IU3V135FM0RLZHK_TIS_1_Side

All photographs Studio May     Download Original

  • IU3V135FM0RLZHK_TIS_1_Side
  • IU3V135FM0RLZHK_TIS_2_Side_ii
  • IU3V135FM0RLZHK_TIS_3_Elevation
  • IU3V135FM0RLZHK_TIS_5_Roof_ii
  • IU3V135FM0RLZHK_TIS_6_Cladding_Detail
  • IU3V135FM0RLZHK_TIS_7_Roof
  • IU3V135FM0RLZHK_TIS_8_Window
  • IU3V135FM0RLZHK_TIS_9_Doug_Fir
  • IU3V135FM0RLZHK_TIS_10_Desk
  • IU3V135FM0RLZHK_1_TIS_AJS_Sketch
  • IU3V135FM0RLZHK_2_TIS_AJS_Site_Plan
  • IU3V135FM0RLZHK_3_TIS_AJS_Existing_Plan
  • IU3V135FM0RLZHK_4_TIS_AJS_Proposed_Plan
  • IU3V135FM0RLZHK_5_TIS_AJS_Proposed_Elevation
  • IU3V135FM0RLZHK_6_TIS_AJS_Proposed_Section_A
  • IU3V135FM0RLZHK_7_TIS_AJS_Proposed_Section_B
  • IU3V135FM0RLZHK_8_TIS_AJS_Structural_Model
  • IU3V135FM0RLZHK_9_TIS_AJS_Proposed_Axo
  • 10_TIS_AJS_SW_Carbon Calculator
  • IU3V135FM0RLZHK_TIS_4_Walls

The Tisbury garden office was commissioned as a space to work from home.

Reappropriating a tight space at the rear of their cottage’s garden, the office’s cranked plan was defined by the curving stone wall which forms the perimeter of the site. Today, the building hosts a modest two-person workspace, which catches both morning and evening light but remains out of view from afar, sheltered by existing vegetation from the north and south approaches along the lane.

We built the office ourselves over eight days as a way to teach us about the build process as well as test the viability of locally sourced materials. The architect, engineer, contractor and client prefabricated the project off-site using locally felled green Douglas fir, cork and 140mm sheep's wool cassettes – a material palette that contrasts with the stone cottage. Minimal groundwork and adjustable footings on found stone slabs allowed for an entry level approach to the build.

The site sits within the Tisbury Conservation area – just over a mile from Alison and Peter Smithson’s Upper Lawn Pavilion. Like Upper Lawn, the office abuts the existing stone wall which is typical of The Quarry and is clad in a similar 0.8mm dull galvanised steel plate. The steel was chosen because the galvanised reflects the colour of the surfaces it is near, blending in with surrounding vegetation and sky.

Structure Workshop’s carbon calculator took into account the potential for material reuse as well as lifespan of various materials, therefore allowing the design team to weigh up the advantages of a timber versus steel cladding and informing the material specification. The project has been a chance to collaborate and experiment, testing the qualities of locally sourced materials first hand on a small scale – allowing us to specify them on larger projects in the future.

Data

  • Begun: Sep 2021
  • Completed: Oct 2021
  • Floor area: 6m2
  • Sector: Office
  • Total cost: £8,940
  • Funding: Private
  • Tender date: Jul 2021
  • Procurement: Traditional
  • CO2 Emissions: 238kg/m2/year
  • Address: 1 Hill View, The Quarry, Tilsbury, Wiltshire, SP3 6HR, United Kingdom
