20a Northburgh Street

Kennedytwaddle, London, 2017



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

NOBORO 01

    Download Original

  • NOBORO 01
  • NOBORO 02
  • NOBORO 03
  • NOBORO 04
  • NOBORO 05
  • NOBORO 06
  • NOBORO 07
  • NOBORO 08
  • NOBORO 09
  • NOBORO 10
  • NOBORO 11
  • NOBORO 12
  • NOBORO 13
  • NOBORO 14
  • NOBORO 15
  • NOBORO 16
  • NOBORO 17
  • NOBORO 18
  • NOBORO 19
  • COL 001 Coloured Elevation
  • 100 001 Location Plan
  • 100 002 Existing Plan
  • 100 003 Proposed GF Plan
  • 100 004 Proposed 1st Plan
  • 050 001 Existing Elevation
  • 050 002 Proposed SE Elevation
  • 050 003 Proposed NE Elevation
  • 150 001 Proposed Section AA
  • 150 002 Proposed Section BB
  • AXO 001 General View
  • AXO 002 Structure
  • Existing Building
  • Portal Frame 01
  • Portal Frame 02
  • Portal Frame 03
  • 010 001 Proposed Working Detail

Laminated timber structure extension to an existing single storey ancillary building refurbished to create office space.

20A Northburgh Street - Noboro - in Clerkenwell was commissioned by CABU, a newly formed company specialising in prefabricated modular buildings, for their new London headquarters.

kennedytwaddle have designed the company’s modular offerings and so was asked to look at extending the vacant and somewhat forlorn ancillary building to the rear of the main properties of Great Sutton Street.

The existing 100sqm building is typical of those found in the area and bears the trademark fletton bricks, crittal windows and prominent lintels - although in this instance these features were concealed as the entire building had been curiously painted black. Along with the overshadowing of neighbouring buildings number 20A had limited potential.

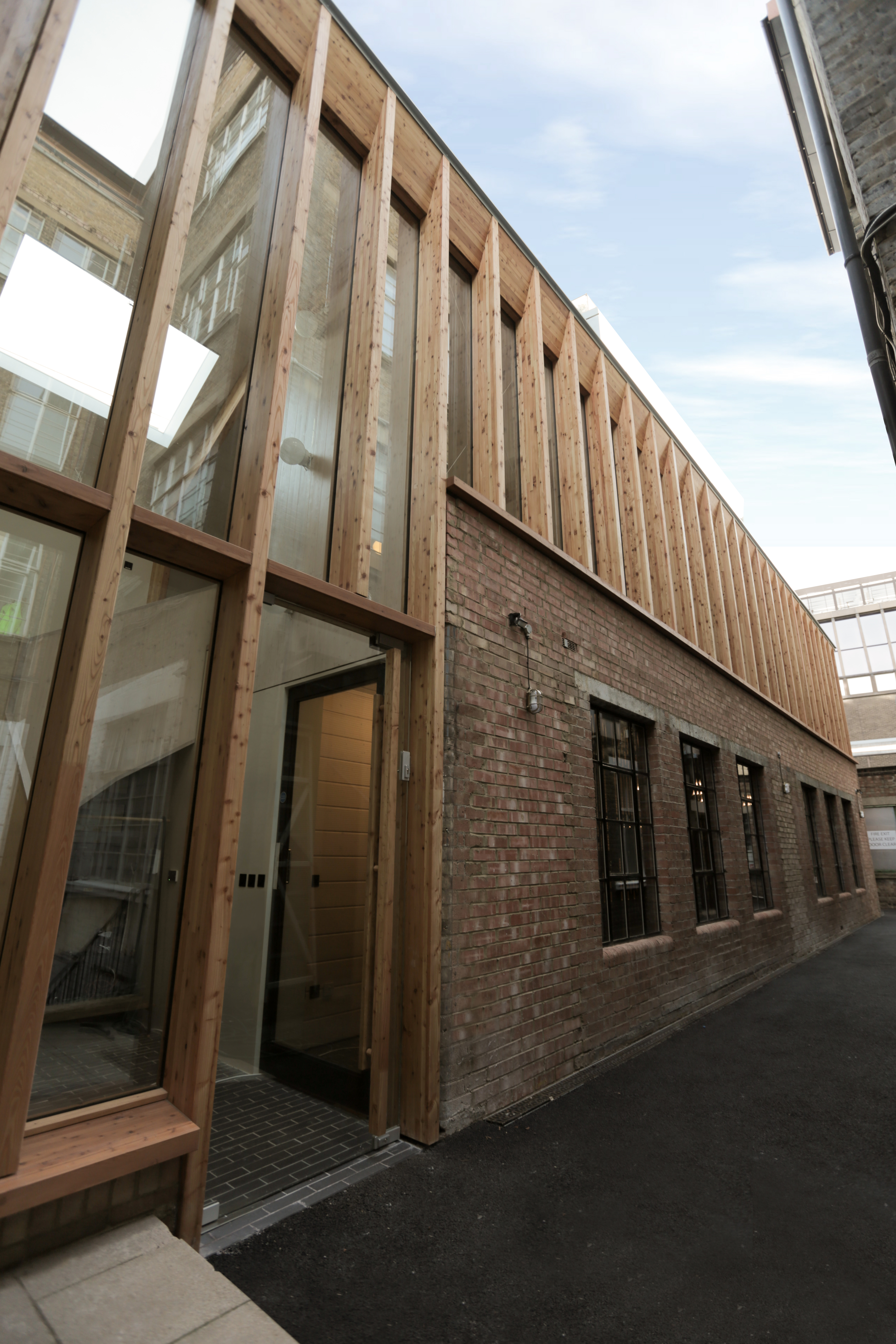

The new addition to the building was conceived as a sculptural pavilion celebrating the qualities of the prefabricated timber structures the company will sell. More installation than just an extension, the proposal is at once a striking contrast to the existing but having a degree of affinity with the the host building, now stripped back to its former, albeit modest, glory.

Five portal frames and the mullions were prefabricated in Montlebon, close to the French / Swiss border. Dimensional coordination was key and the main contractor, the renowned Cowley Timber, were key to its success.

A simple glazing system was devised using economical fixed glazed units. The sheltered nature of the site demanded as much natural light as possible. SIPS (structurally insulated panels), as used in CABU products, were used for the roof and the new intermediate floor.

The main structure and mullions were installed in two weeks with the roof one week later.

Exterior cladding used in the prefab cabins has been used for the interior, creating a warm space and also allowing the company to show off the materials they offer to visiting customers.

The client has moved into their new Clerkenwell base and the former neglected ancillary building thrives again almost a century after it was first built.

Data

  • Begun: May 2017
  • Completed: Dec 2017
  • Floor area: 137m2
  • Total cost: £220,000
  • Tender date: Mar 2017
  • Procurement: JCT Minor Works
  • Address: 20a Northburgh Street, Clerkenwell, London, EC1V 0EA, United Kingdom
