Terrace and canopies for a riverside school

Martin Edwards Architects, Twickenham, 2015



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Martin Edwards Architects     Download Original

  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Initial sketches
  • Sketch plan
  • Sketch elevation
  • Plan at terrace level
  • Elevation from the river
  • Section through the new terrace
  • Axonometric view
  • Site progress photo
  • Timber components
  • Flitched canopy arm
  • Working detail

A covered outdoor riverside terrace for recreation, teaching and events.

The project is within a conservation area on the River Thames in Twickenham, and on the site of a house built by the poet Alexander Pope.

Pope’s Villa was demolished in the early 19th century, but the Grotto that he constructed has been preserved below a later Victorian merchant’s house, now a school. The remains of the famous willow tree planted by Pope on the riverside are preserved within the Grotto.

The project provides a new covered outdoor riverside terrace for recreation, teaching and events. A new stair from an upper terrace improves access to the grade II* listed Grotto.

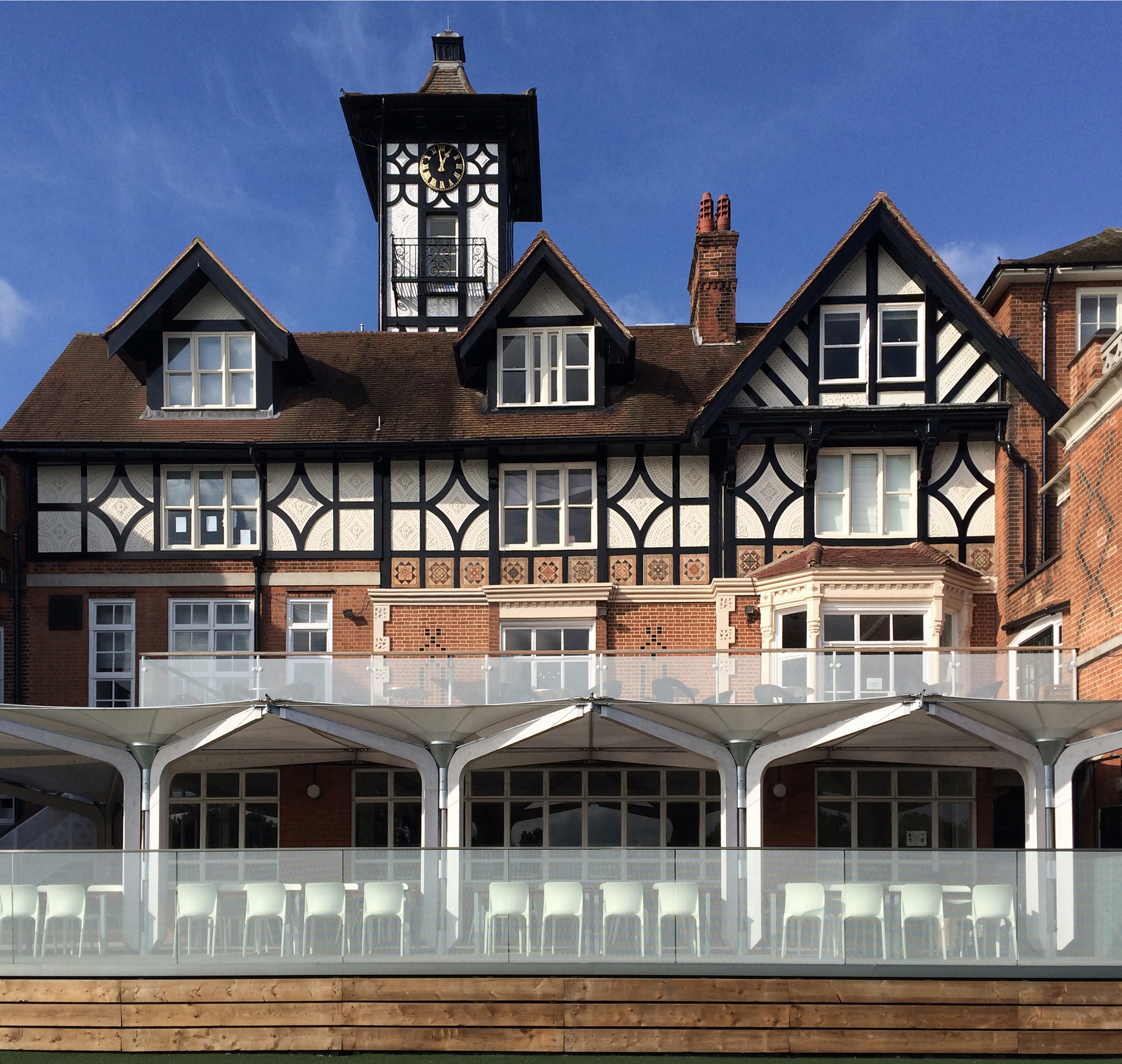

The new structure wraps a prosaic brick elevation to the school’s dining area with a form that responds to the site’s riverside setting.

The tensile fabric canopies are supported by a flitched timber structure, in a form resembling ribbed vaults – a reference both to Pope’s Grotto and the masonry details and decorative timber motifs of the later Victorian buildings.

Data

  • Begun: Jul 2015
  • Completed: Sep 2015
  • Floor area: 240m2
  • Sector: Education
  • Total cost: £175,000
  • Funding: Private
  • Tender date: Apr 2015
  • Procurement: Traditional
  • Address: Pope’s Villa, Cross Deep, Twickenham, TW1 4QG, United Kingdom
