Dining Pavilion

Architecture Project (AP), Malta, 2007



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

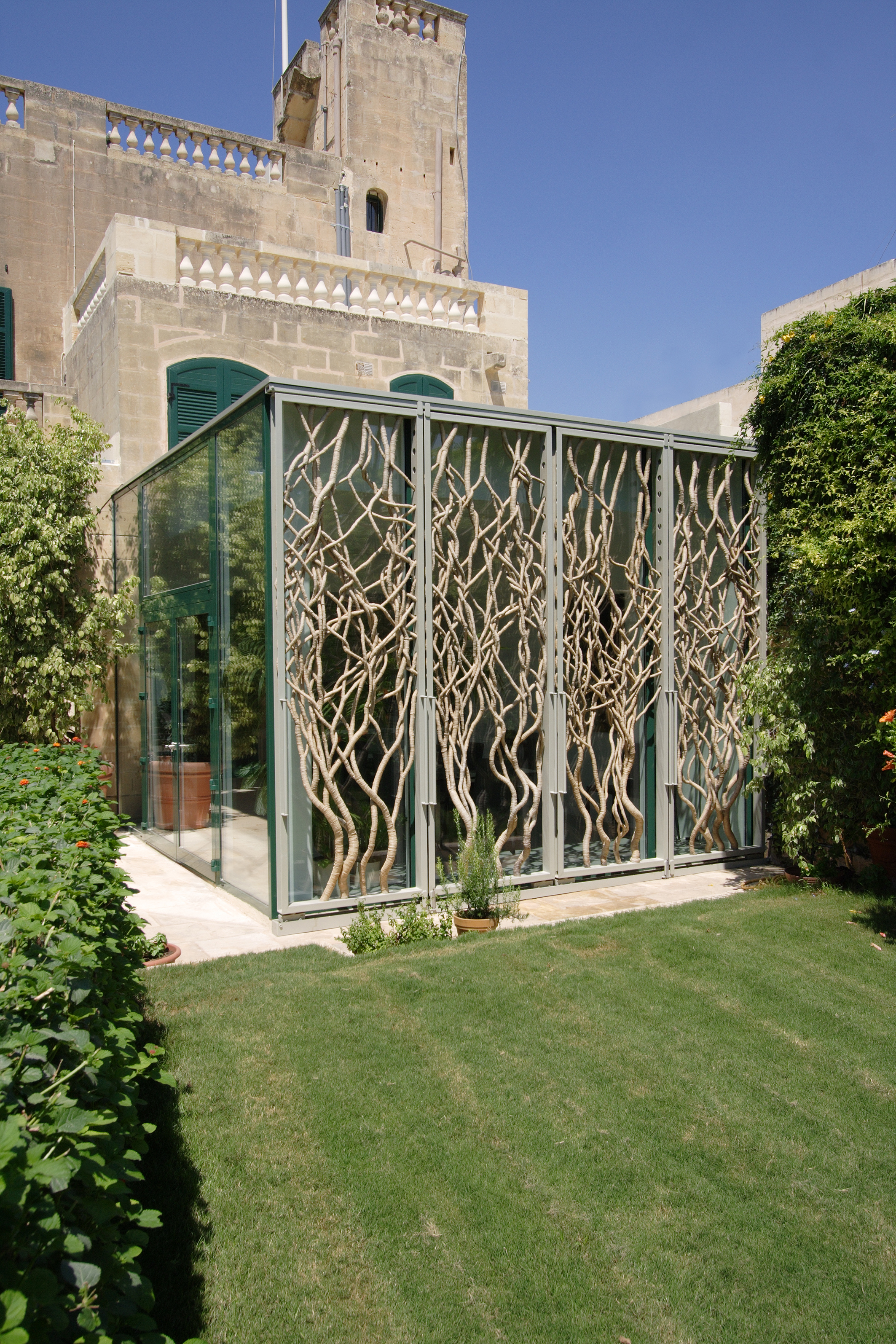

Because of its contrasting materials and construction technology, the extension, that is designed like an over-scale porch, does not conflict with the stone walls of the existing house and, together with the canvas canopy

David Pisani (website)     Download Original

  • Because of its contrasting materials and construction technology, the extension, that is designed like an over-scale porch, does not conflict with the stone walls of the existing house and, together with the canvas canopy
  • The dining table
  • The flax and hemp are an unconventional form of shading
  • Close up of the flax and hemp intertwined
  • You don
  • The Dining Pavilion at night
  • The Dining Pavilion at night
  • The forms that have been created by French artist Aude Franjou also play on the natural qualities of the material
  • The forms that have been created by French artist Aude Franjou also play on the natural qualities of the material
  • The concertina-like glass scheme in action
  • Site plan
  • Ground floor plan
  • Section A-A
  • Section B-B
  • Section C-C
  • Section D-D
  • Garden elevation (closed louvres)
  • Folder screen elevation
  • Detailed elevation
  • Model of scheme
  • The flax being twisted around the hemp
  • Sketch
  • Plan before renovation
  • Folded screen detail

Pavilion-like extension to an eighteenth century house in Malta, with a shading system of flax twisted around hemp, woven onto a steel frame

This elegant dining pavilion attached to a heavily built house uses a unique approach to shading, so necessary in the hot sun of Malta.

A colonnade of steel columns supports a fabric awning, with a concertina-like glass screen to the south and east facades, decorated with ‘trees’ made from flax twisted around hemp, then woven on to a steel framework. Varying the tension of the weaving introduces the desired curvature.

Like trees growing out of the ground and spreading their tentacle-like branches over the glass surfaces of the kitchen walls, this contemporary sculpture creates a dialogue between the garden and the kitchen.

Data

  • Begun: 2005
  • Completed: 2007
  • Sector: House
  • Total cost: £90,000
  • Address: Dining Pavilion, Malta, MT, Malta
