St Silas Primary

Capita Symonds Architecture, Blackburn, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Nick Guttridge (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Location plan
  • Lower ground floor plan
  • Upper ground floor plan
  • First floor plan
  • Section B-B
  • Section D-D
  • Elevations

Three-storey Primary School built on a tight sloping site surrounded by terraced housing

To provide all classrooms with direct access to external play space, the practice utilised the area’s topography, resulting in a three storey solution totalling 2,200m² which is layered over and pushed into the site and terraced to maximise the external area with rooftop play spaces.

The school comprises four linked blocks wrapping around a secure play courtyard: a single storey block with a rooftop play deck linked to the ground with a tube slide; two three-storey blocks linked by a bridge of class spaces of which the upper floor houses a mini-football pitch; and a main hall block with staff accommodation on top disguising plant areas. The practice designed the scheme in just eight weeks during the summer of 2010; it was opened in April 2012 - just 22 months after initial client and user consultations.

The design allows for over 800m² of useable play space off the ground level, 400m² more than was provided for the previous Victorian school on the site.

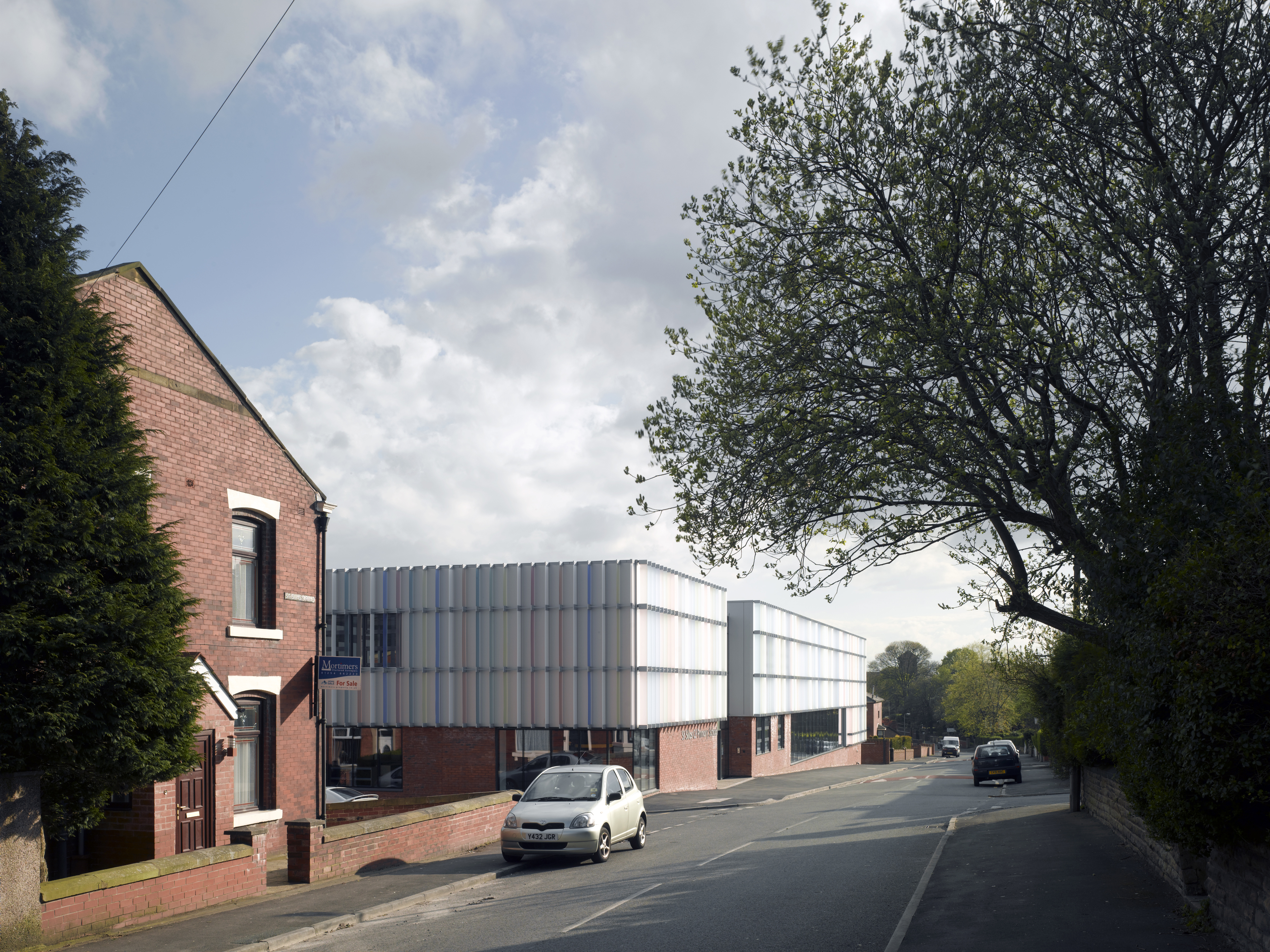

Effects of light and colour are used throughout, with locally sourced, coloured perspex step in-fills flooding dining areas with a rainbow of light. The ‘wrapping’ elevation cladding system is a series of coloured, translucent and solid perspex fins designed to create a cost effective rapid solution.

Data

  • Begun: Mar 2011
  • Completed: Apr 2012
  • Floor area: 2,400m2
  • Sector: Education
  • Total cost: £7.5M
  • Procurement: Design and Build
  • Address: Robinson Street, Blackburn, BB1 5PE, United Kingdom
