New Herbarium, Library, Art & Archives Wing

Edward Cullinan Architects, Richmond, 2009



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Tim Soar (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • First floor plan
  • Third floor plan
  • Section A-A
  • Section B-B
  • Mechanical section
  • Model
  • Model
  • Reading room
  • Reception
  • Pod
  • Plan detail at wing

Extension to the Herbarium at Royal Botanical Gardens Kew

The 5000m2 addition to the Herbarium provides space for existing collections and future acquisitions. The new wing is climate-controlled and consists of a reading room, research rooms and offices on the top floor with access to a roof terrace.

The building is made from concrete for its strength and thermal qualities. For energy, a mechanical air handling system is assisted by a ground source heat pump helping to achieve a BREEAM excellent rating.

The elevations are composed of brick, cedar and pale bronze aluminium curtain wall. The brick cladding is continued in the interior along with concrete and white plastered walls. There is a concrete helical staircase and dark stained oak joinery with bronze ironmongery and fittings.

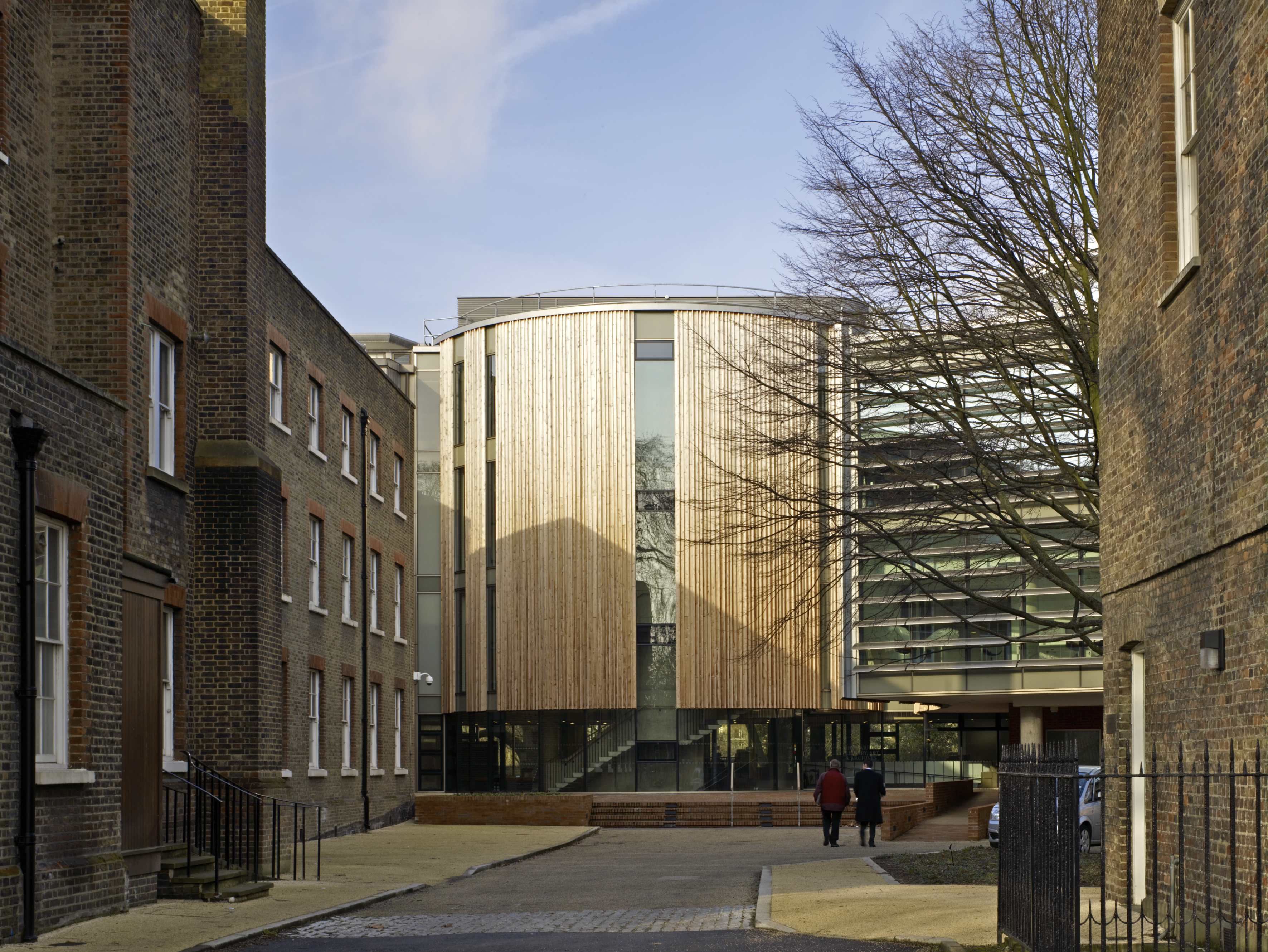

Western Red cedar is used to clad the curving forms of the offices, reception, seminar and reading rooms. The cedar will silver over time to complement the red bricks.

Data

  • Begun: Feb 2007
  • Completed: May 2009
  • Floor area: 5,000m2
  • Sector: Arts and culture
  • Total cost: £15M
  • Address: Royal Botanic Gardens Kew, Kew Green, Richmond, TW9 3AW, United Kingdom
