Toll House

Fraser/Livingstone Architects, Edinburgh, 2022



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

3TUROSOODCKZ4Q7_FLA_Toll_House-10

Photos by Fredrik Frendin     Download Original

  • 3TUROSOODCKZ4Q7_FLA_Toll_House-10
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-1
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-2
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-3
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-4
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-5
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-6
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-7
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-8
  • 3TUROSOODCKZ4Q7_FLA_Toll_House-9-Before
  • 3TUROSOODCKZ4Q7_Toll_House_Site_Plan
  • 3TUROSOODCKZ4Q7_Toll_House_Upper_Ground_Floor_Plan
  • 3TUROSOODCKZ4Q7_Toll_House_Lower_Ground_Floor_Plan
  • 3TUROSOODCKZ4Q7_Toll_House_Elevations
  • 3TUROSOODCKZ4Q7_Toll_House_Long_Section
  • 3TUROSOODCKZ4Q7_Toll_House_Cross_Section

The former Council owned public conveniences sit on the footprint of the historic Toll House, which stewarded the approach in and out of Edinburgh.

The Water of Leith lies concealed beneath surrounding streets, only being revealed upon crossing Canonmills Bridge. Close proximity to the river affords an opportunity to form a way-marker along the walkway, opening the building up to the scenery and casting a warm glow over the surrounding streets and the water below.

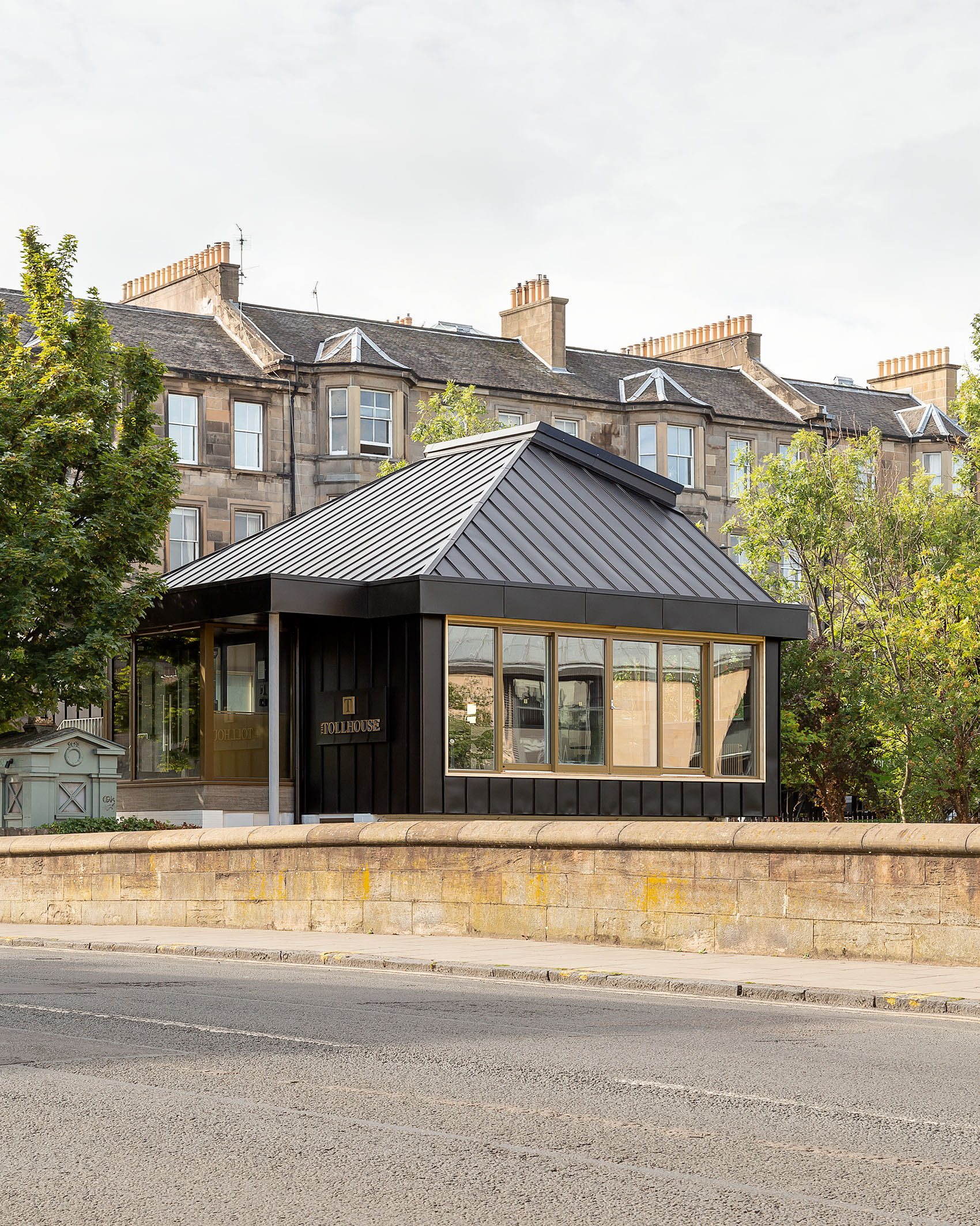

Existing lower floor and walls are retained. The roof is replaced with a new trapezoidal pavilion perched over the water, topped with a generous rooflight. Form and composition take their language from the surroundings. Expansive openings connect the interior to the corner tree, the Canonmills Clock, the mature bank of trees and to the bridge and river, bringing its burble into the new restaurant and animating the intersection of streets, imbuing the building with a civic presence.

A timber and steel structure is cloaked in a black vertical standing seam steel cladding, with the materiality of the new dark upper pavilion counterposed by the white painted horizontality of the existing masonry of the lower enclosure, creating a distinct but balanced relationship between old and new. The trapezoidal form is topped with a generous rooflight, flooding natural light into the space beneath and over the new internal staircase, capturing views of the sky and the river’s treetops from within the volume.

Building, bridge, trees, clocktower and river all combine to form a piece of civic drama as the backdrop to a new restaurant offering.

Data

  • Begun: Jun 2020
  • Completed: Jun 2022
  • Floor area: 120m2
  • Sector: Sports and leisure
  • Total cost: £220,000
  • Funding: Private
  • Tender date: Jan 2020
  • Procurement: Construction Management
  • CO2 Emissions: 9.7kg/m2/year
  • Address: 50 Brandon Terrace, Edinburgh, EH3 5BX, United Kingdom
