David Leech House

David Leech Architects, Dublin, 2017



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

The render was hand-trowelled smooth on all public faces, while the elevations within the garden are deeply roughcast

    Download Original

  • The render was hand-trowelled smooth on all public faces, while the elevations within the garden are deeply roughcast
  • The garden is the source of the project
  • Much of the external wall surfaces are covered in roughly trowelled render, a common local weatherproofing
  • The existing tall hedge and boundary walls meant that a
  • The house and garden were not conceived as separate entities, but as one
  • The core contains the service and plumbed elements of the plant, wash closet, kitchen appliances and fireplace, as well as storage and the staircase
  • Internally at ground level, the core divides the plan into four public rooms: a hall/library, kitchen, dining and living room
  • A curtain of timber and glass folding doors wraps the exterior of the house
  • View from the top of the staircase
  • A skylight lights the core of the house
  • An iroko timber stair leads up to a small platform-sized landing
  • SIte plan
  • Ground floor plan
  • First floor plan
  • Section AA
  • Elevations
  • Detail section through building envelope
  • Window detail plan section

A small house lies on an awkward site at the end of a line of post-war suburban semis in Dublin.

The house is situated in a garden at the end of a short terrace of a 1940s suburban estate on the edge of Dublin. The site is bounded to the south by an existing hedge, to the north-west by the blank wall of the original terrace and to the north-east by a high wall backing onto a public lane.

The steel beams that cantilever out from the central core of this compact three-bedroom detached house enable much of the ground floor perimeter to be structureless, wrapped by glazed screens of folding floor-to-ceiling panels. The screens can be pulled back, concertina-like, to merge the two living rooms almost completely with the surrounding garden.

Much of the external wall surfaces are covered in roughly trowelled render, a common local weatherproofing. Above, a slate roof rises sharply to a thick, chimney-like structure. This one contains a skylight that lights the core of the house, as well as an extract for an MVHR system and a flue for a wood-burning stove. The slates are held and punctuated by copper grampians, the copper picked up in gutters and a downpipe that cuts diagonally across the blank plastered upper storey.

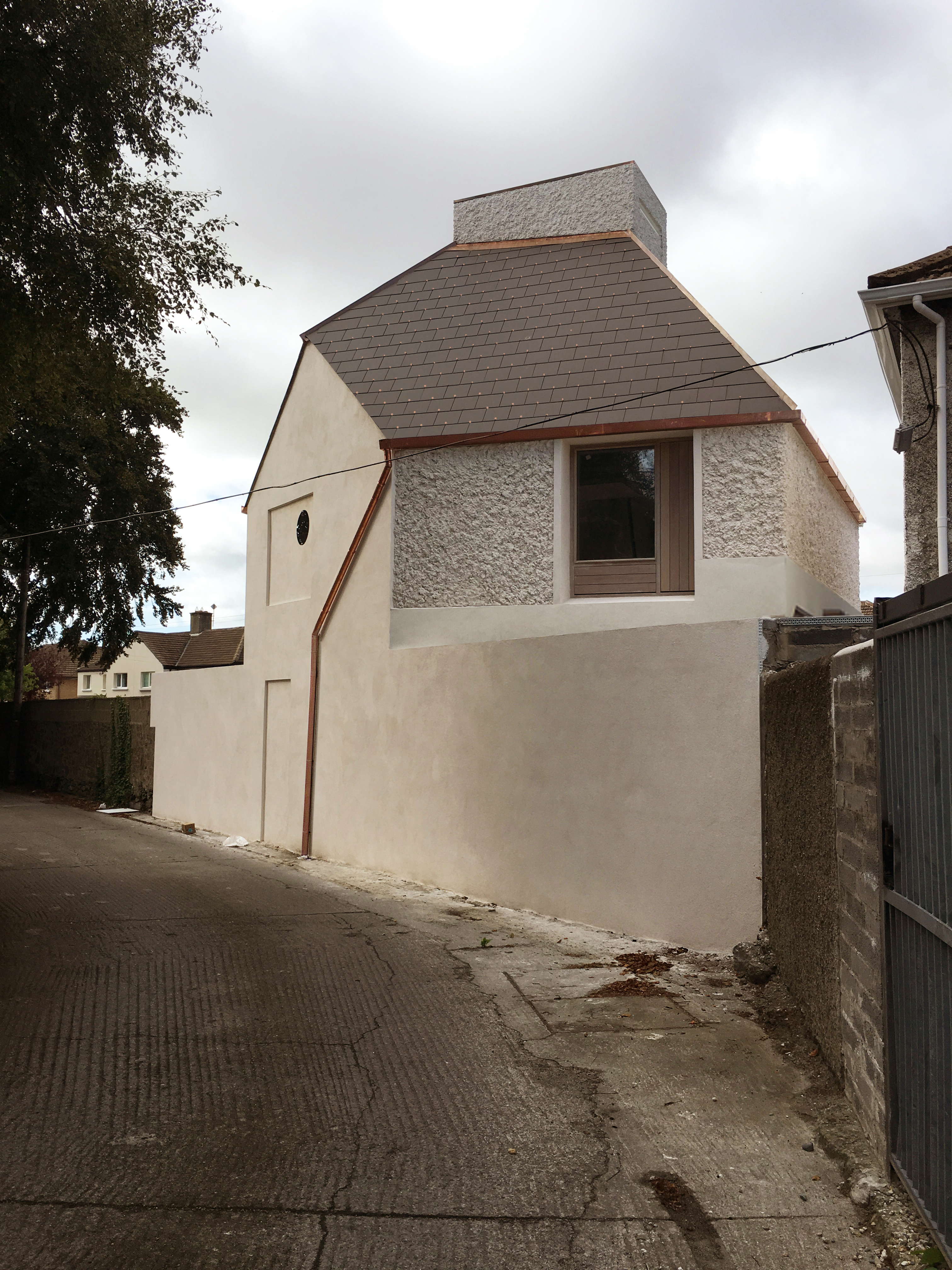

The back façade to the lane, in contrast to the garden elevations, is finished in a smoother render, solid except for a porthole which lights the bathroom on the first floor. The roofline is sliced off here, forming the shape of a gable, with the wall below animated by the traced relief of a door and window, together describing the simple figure of a house.

Internally, the rooms work around a roughly cruciform core. One thicker arm is formed by a WC and storage, while the foot of the stair, an inbuilt kitchen counter and a wall of kitchen storage backing onto the hearth form the others.

The floor surface is struck in-situ concrete throughout – left unfinished in part due to the cost of polishing – but also intended to increase the inside/outside terrace-like feeling in the rooms. The three bedrooms are lined, floored and cupboarded using Valchromat in different colours.

Data

  • Begun: Sep 2016
  • Completed: Sep 2017
  • Floor area: 120m2
  • Sector: Residential
  • CO2 Emissions: 9.48kg/m2/year
  • Address: Hollybrook Grove, Dublin, 3, Ireland
