Chapter House

Proctor & Matthews Architects, Lichfield, 2017



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

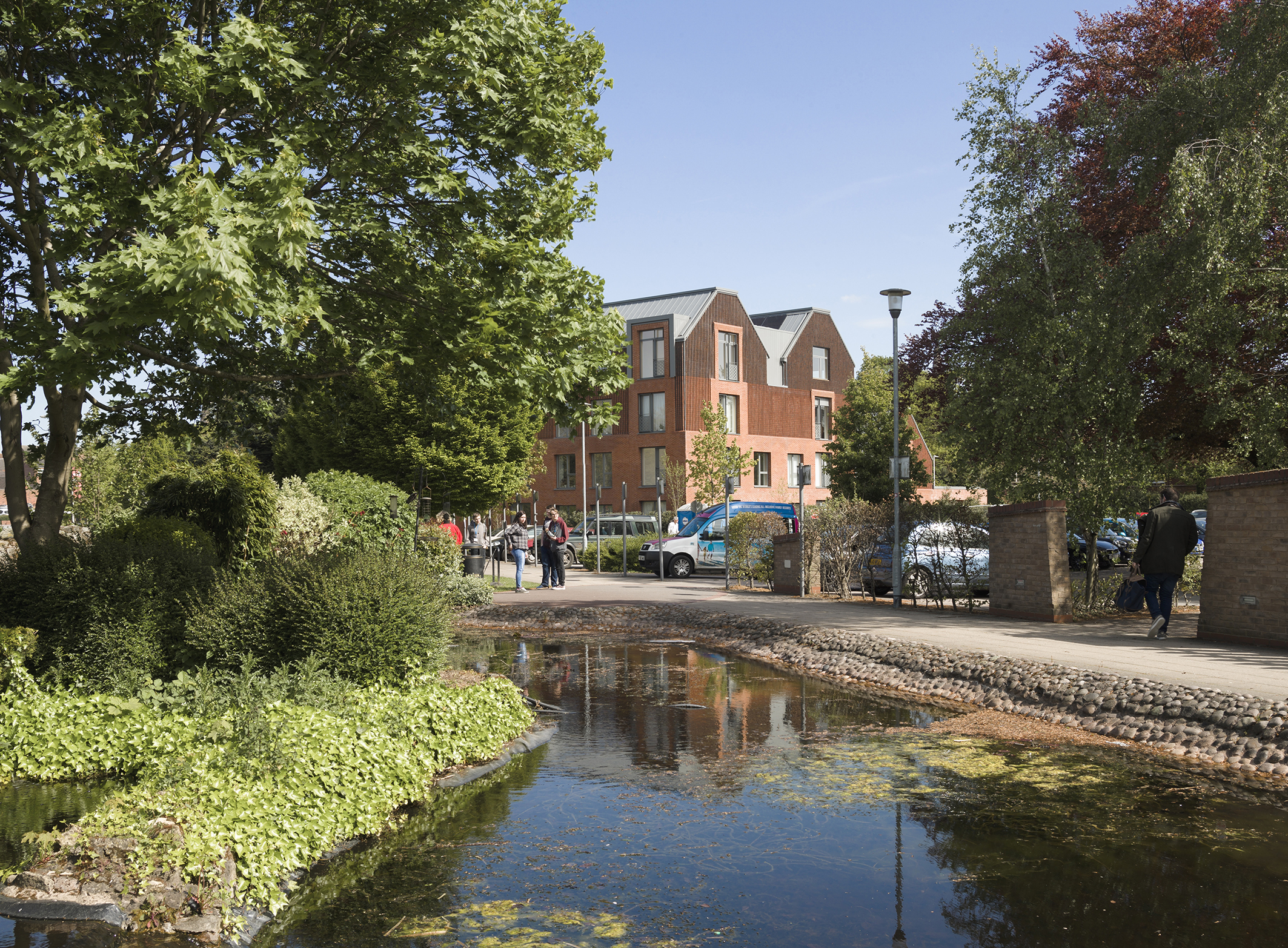

The design for Chapter House draws inspiration from the characteristic historic morphology of Lichfield’s walled gardens

Tim Crocker     Download Original

  • The design for Chapter House draws inspiration from the characteristic historic morphology of Lichfield’s walled gardens
  • On the upper levels of the building the colour tones of the corduroy brick panels change, with the dark-red brick coming to the foreground, contrasting with a Staffordshire Blue brick in the background
  • Corduroy brickwork panels give rhythm and texture to the façade
  • The panels consist of vertically laid bricks in two different colours with dark-red 65mm bricks forming the backdrop to projecting light-red 50mm brickwork bands
  • The courtyard gardens
  • Etched scallop shells on Juliet balconies
  • An attention to craftsmanship gives scale and character to Chapter House
  • The building is located within Lichfield’s Central Conservation Area
  • The dwellings are designed to achieve Code for Sustainable Homes Level 4
  • There are extended spaces for neighbourly interaction
  • A communal space
  • Site plan
  • Ground floor plan
  • Second floor plan
  • First and third floor plans
  • Chapter House section
  • Section AA
  • West and north elevations
  • Partial north elevation
  • Entrance facade detail sketch
  • Entrance facade detail

Chapter House in Lichfield, for the retirement home specialist PegasusLife, recalls the cloisters of the friary that once stood on the plot.

Chapter House provides 38 one and two-bedroom units for the over-55s. It includes a communal kitchen and reception space with a central fireplace, a guest room for visiting family or friends and a central courtyard overlooked by two shared balconies.

The building has accommodation around three sides of a cloister-like courtyard, all of which gets direct sunlight at some part of the day. The interior south-west wall of the courtyard is faced with light-coloured brick, which reflects light into this space
he architect has created a roofline which is both varied and ‘busy’, with numerous gables, each treated slightly differently. Although this is a modern, high-spec building, it is reminiscent of a structure that has grown organically over time.

Set within the simple and robust red brickwork frame of the colonnade, a series of corduroy brickwork panels give rhythm and texture to the façade. The panels consist of vertically laid bricks in two different colours with dark-red 65mm bricks forming the backdrop to projecting light-red 50mm brickwork bands. On the upper levels of the building the colour tones of the corduroy brick panels change, with the dark-red brick coming to the foreground, contrasting with a Staffordshire Blue brick in the background.

Above the main entrance a pre-cast canopy welcomes residents and visitors with large individually cast GRC letters, which are secured to the projecting entrance lintel.

Powder-coated perforated aluminium panels have been used across the project as balcony balustrades. Their scallop-shell pattern refers to the coat of arms of Erasmus Darwin, a famous Lichfield resident (and grandfather of Charles Darwin) and to the shape of madeleines, Proust’s trigger for involuntary memories. The panels are laser-cut and sit within a slender aluminium frame fixed back to Velfac window frames behind.

Data

  • Begun: Jun 2015
  • Completed: Apr 2017
  • Sector: Residential
  • Total cost: £6.3M
  • Procurement: Design and Build
  • Address: Monks Close, Lichfield, WS13 6QR, United Kingdom
