Montagu Stair

Waind Gohil + Potter Architects , London, 2015



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

Montagu Stair

Anthony Coleman     Download Original

  • Montagu Stair
  • Monatgu Stair
  • Montagu Stair
  • Montagu Stair
  • Montagu Stair
  • Montagu Stair
  • Montagu Stair
  • Montagu Stair
  •
  •
  •
  •
  •
  •
  •
  •

Conversion of Grade II listed residential flats into a single dwelling with a feature staircase in Central London

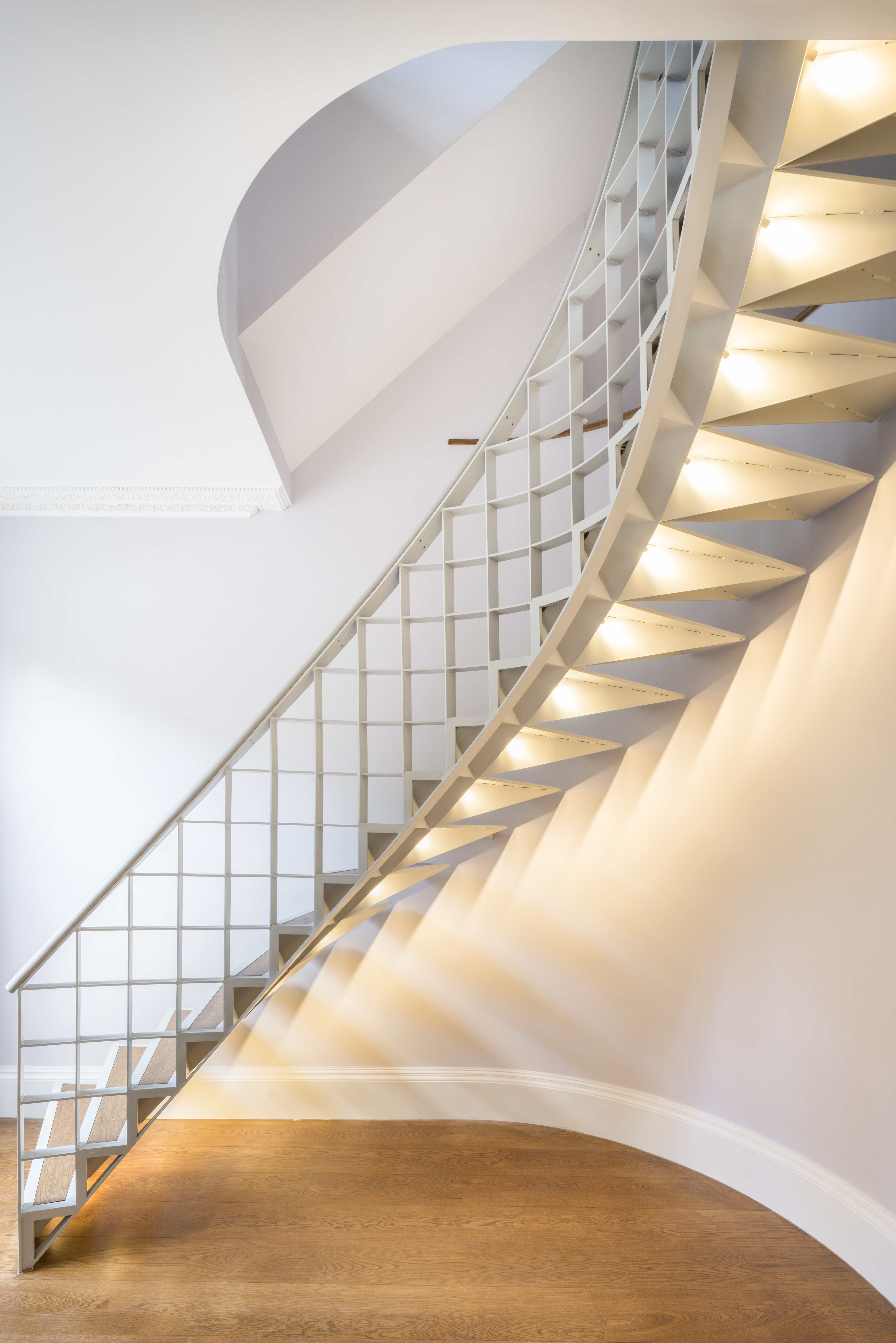

The staircase at Montagu Square is a complex steel plate design where each element is used to add support and stiffen. The handrail forms the main support using the crossing lattice of vertical and horizontals to span like a beam between the floors. From this the treads cantilever out towards the listed building's wall, using the fanning triangular steel plates to provide structural depth and stiffness.

The stair was pre-fabricated and brought to site in sections then assembled and welded together to create the final form. The steel plates were set out and overlapped to allow the majority of the welds to be on the back edges, hidden from direct view. The welds that were on show were full penetration fillet welds, subsequently ground down to leave a neat, crisp edge. Every detail was discussed and refined with the fabricator to ensure buildability and structural integrity, including a concealed slot to hide the wires for the integrated lighting.

Data

  • Begun: Jun 2014
  • Completed: May 2015
  • Sector: Residential
  • Total cost: £90,000
  • Funding: Private
  • Address: Montagu Square, London, NA, United Kingdom
