Spacer Block Wall

Interrobang Architecture & Engineering, London, 2016



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Neil Evensen     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

An installation for the gallery at Arup’s offices in London as part of ‘Concrete Inspirations’, an exhibition about the innovative use of concrete

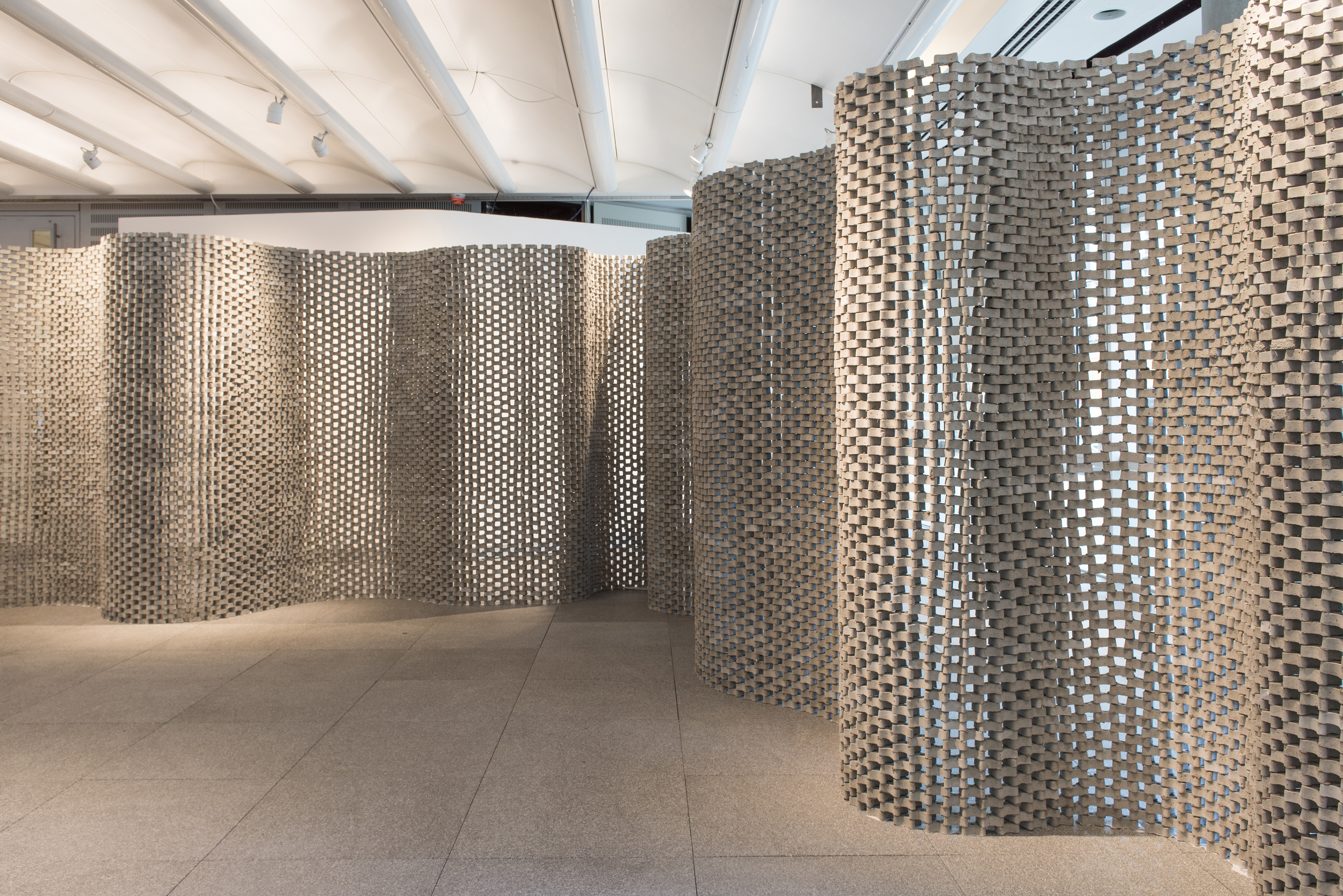

This curving wall made of concrete spacer blocks celebrates the unsung heroes of concrete. It was created for ‘Concrete Inspirations’, an exhibition at Arup about the innovative use of concrete.

The exhibition celebrates Ove Arup's enthusiasm for a material that has captured the imagination of engineers, architects and artists alike. In response to this subject, a curving exhibition wall was created from concrete spacer blocks. The wall organises the space, creating sinuous nooks delineating each theme within the exhibition, and provides a surface on which to mount the artworks.

Normally used to support the reinforcement bars during construction, spacer blocks are concealed within the concrete. They’re probably unknown to most people and yet they’re all around us, buried inside our floors and walls. Their waisted form is designed both to support the re-bar and present a minimal impact on the finished cast.

Here they are turned on their sides and mortared together to form a slender, flowing form, curved to ensure its stability.

As this is an unusual application of spacer blocks, load tests were carried out using various adhesive options before deciding upon a Hilti injectable masonry mortar. To achieve the fine little dabs required, the mortar was piped like icing onto the blocks. Adjustable jigs were CNC-cut from MDF to allow the team to accurately assemble the spacer blocks within a constrained timeframe.

Data

  • Begun: Jul 2016
  • Completed: Jul 2016
  • Sector: Arts and culture
  • Total cost: £21,000
  • Tender date: Jun 2016
  • Address: 8 Fitzroy Street, London, W1T 4BJ, United Kingdom
