Abbots Manor Screens

David Miller Architects, London, 2011


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

Tintern House close up

P.T. Andrew de Silva     Download Original

  • Tintern House close up
  • Tintern House at night
  • Tintern House - street view
  • Tintern House interior
  • Tintern House rear
  • Tintern House rear
  • Dryburgh House
  • Furness House at night
  • Location plan
  • Tintern Entrance
  • Furness House
  • Existing Tintern entrance
  • Existing Furness House
  • Tintern CAD/CAM render
  • Isometric Detail of Gate

A secure door entry system to three multi-storey residential blocks on the Abbots Manor Estate.

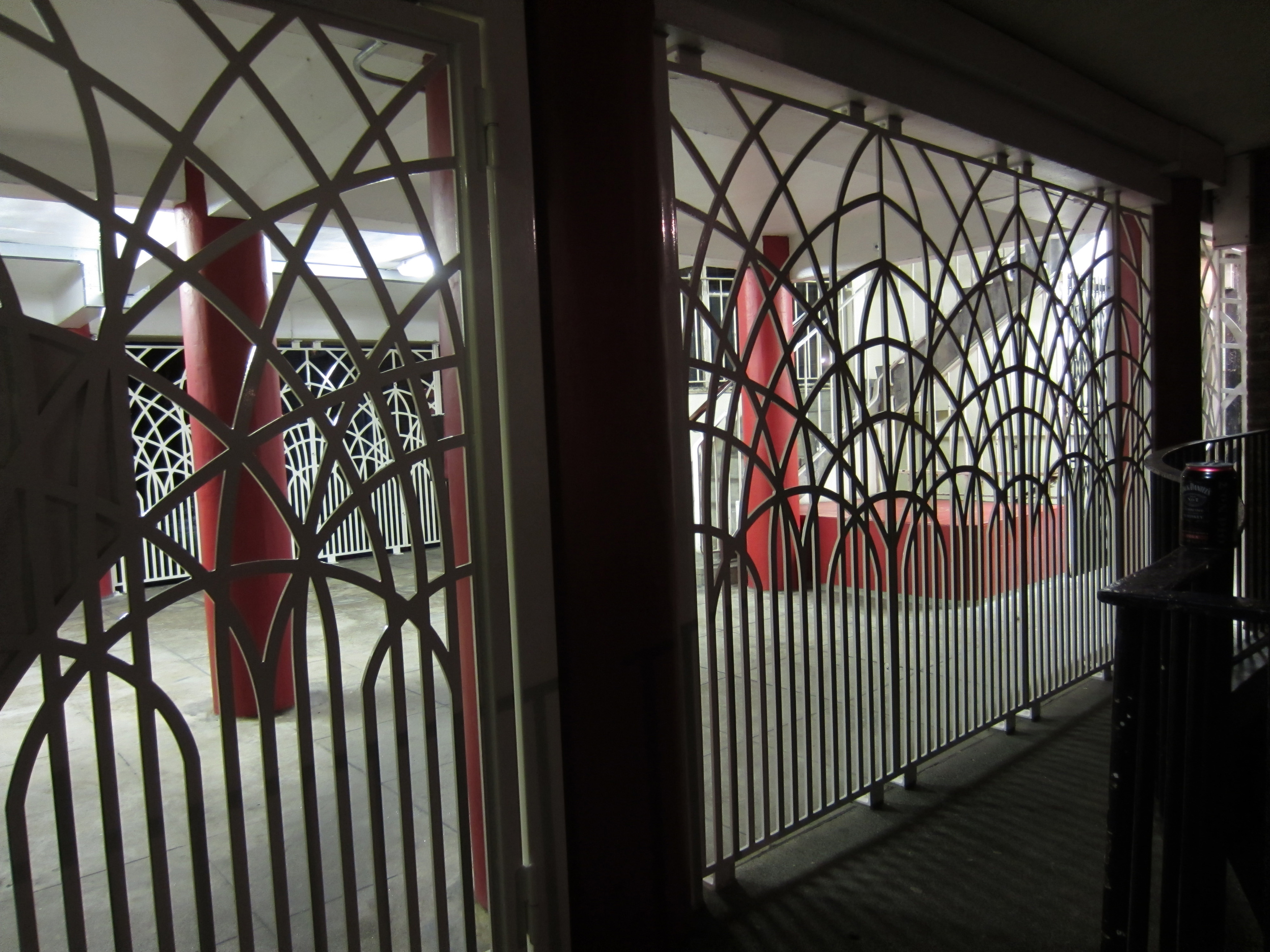

The original brief for this new secure-entry system to three, deck-access, multi-storey residential blocks within the Abbots Manor Estate, was for simple railings or standard UPVC glazed panels with access doors. We wanted to create a less institutional and more inspiring solution, and developed a series of decorative, laser-cut, metal screens using CAD/CAM techniques.

As the residential blocks are all named after abbeys, we designed an intricate, repetitive pattern of arches, suggestive of the ecclesiastical theme without referring to a particular religion. The pattern has been carefully considered and evolves from a dense, uniform arrangement at ground level into a free flowing sculptural form at the top.

In doing so, greater security is provided at lower levels while visibility and ventilation are maintained at eye level. Solid infill panels are introduced strategically around the entry system to prevent tampering. Residents were delighted with this more thoughtful and exciting, non-standard solution.


  • Begun: Jan 2011
  • Completed: Sep 2011
  • Floor area: 40m2
  • Sector: Residential
  • Total cost: £117,000
  • Funding: Local Authority Capital Programme
  • Tender date: Nov 2010
  • Procurement: NEC3 Contract
  • Address: Abbots Manor Estate, Warwick Way, London, SW1V 4NP, United Kingdom
