Heal's Storage and Workshop, Refurbishment

Trehearne and Norman, London, 1998


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

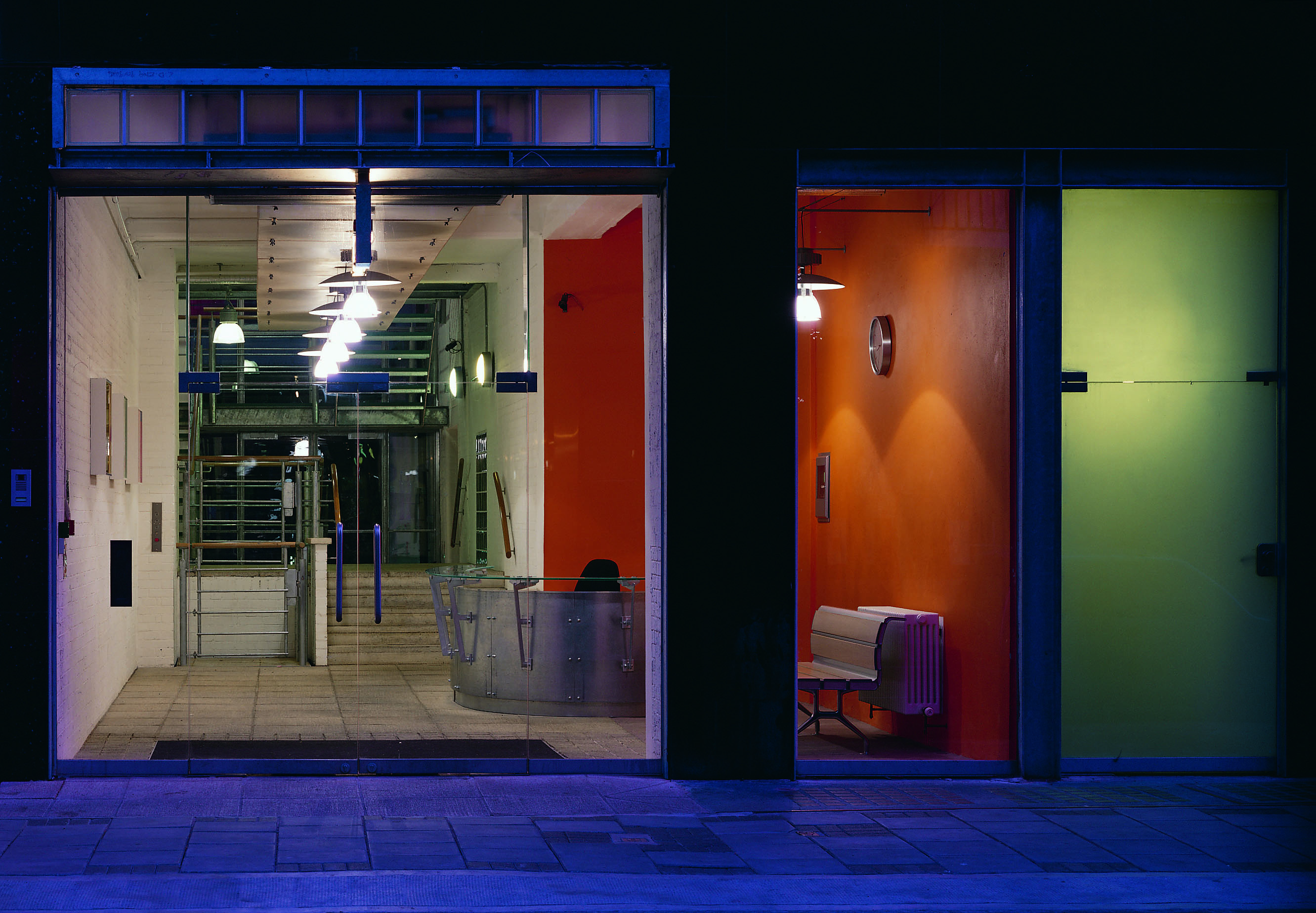

The new entrance

Timothy Soar (website)     Download Original

  • The new entrance
  • View from the inner courtyard to Torrington Place through the new glazed extension and reception
  • Reception desk
  • Refurbished WCs with glass block screen
  • Plywood ceiling panels
  • Display area carved out of circulation space on the ground floor
  • Ground floor plan
  • Typical upper floor plan
  • Section
  • The entrance before the conversion

Conversion and refurbishment of a department store's storage space and workshops into 13,500m2 of shell-and-core office space

Before refurbishment the entrance to Heal's storage and workshops consisted of two separate entrances; one leading to a goods yard and one to a small office. Trehearne and Norman merged these two openings behind a glazed screen, fitted into an existing black, granite surround.

In the reception area, the balance between warehouse aesthetic and up-to-the minute office entrance is felt: desk semi-circular, with glass top and flowers, but in place of a veneered or stainless steel front, chunky galvanised metal sheeting and bolted uprights.

The flooring in the entrance is Blanc de Bierge slabs and pavers. The ceiling consists of suspended panels of plywood, secured at the corners by wing-nuts, with holes cut out for pendant lights and sprinklers, a device that has been used throughout the scheme.

Shared corridors, which also serve as escape routes, are narrow. On the floors above, the architect has built new curved walls to the WC's - to diversify routine corridor runs.


  • Completed: 1998
  • Floor area: 13,500m2
  • Sectors: Industrial, Office
  • Total cost: £250,000
  • Address: Heal's Building, 22 Torrington Place, London, W1T 7LQ, United Kingdom
