Rural Regeneration Centre

EUROBUILD, Tonbridge, 2010



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



EUROBUILD     Download Original

  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • Long sections
  • Short sections
  • Elevations
  • Model
  • Model
  • Model
  • BIM 1
  • BIM 2
  • BIM 3
  • BIM 4
  • Timber wall detail

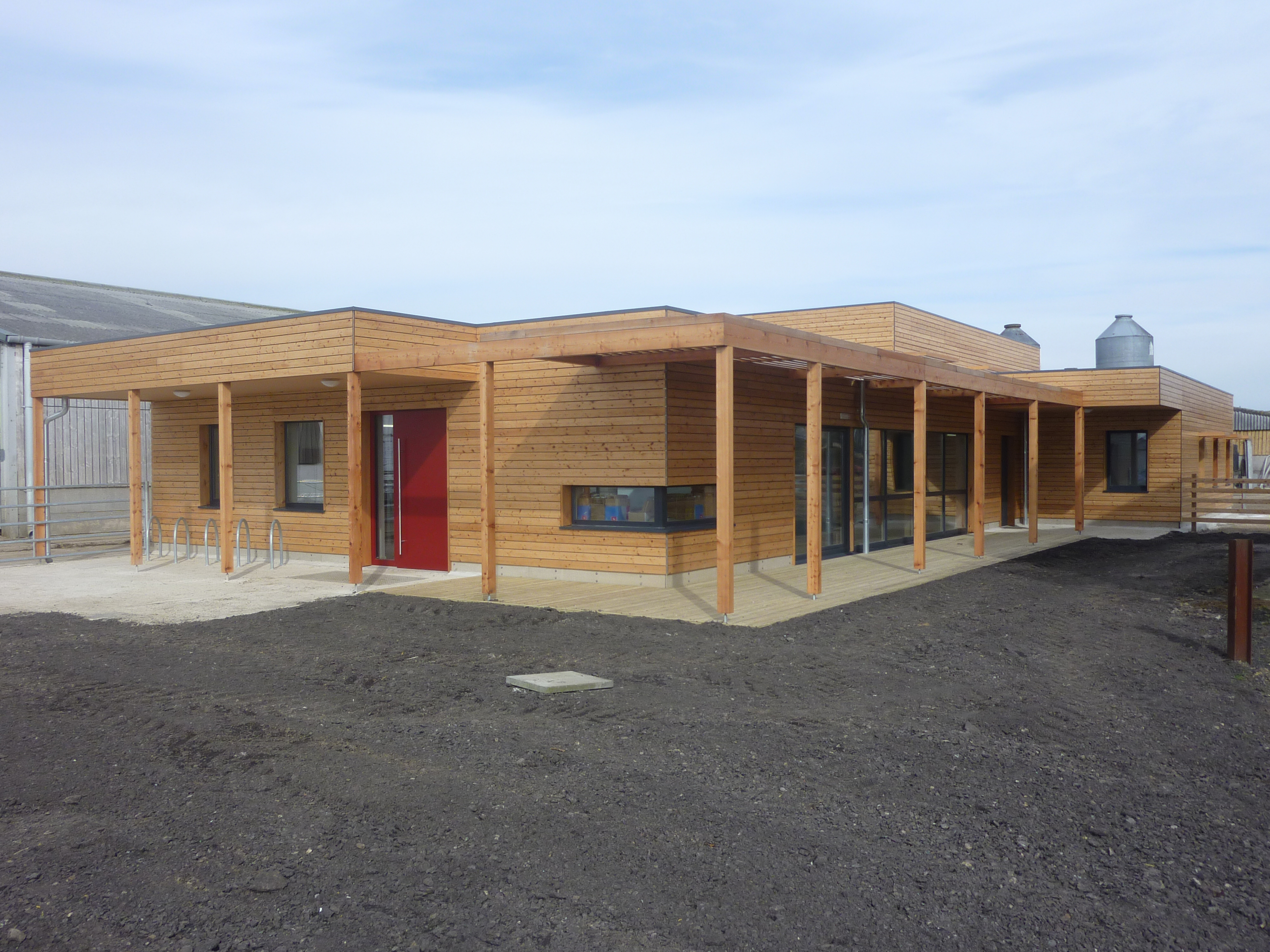

Conversion and extension of redundant cow sheds to create the first certified PassivHaus educational building in the UK

The building houses seminar rooms, a main exhibition centre, computer suite, and modern training facilities for Hadlow College.

The structure of the prefabricated building, which is constructed of super-insulated closed panels, was assembled in three days and in under 10 days, the structure was airtight to a very high standard of 0.34 h-1.

The building employs a number of sustainable technologies including a super efficient mechanical ventilation with heat recovery; triple glazed windows; and a ground source heat pump for heating & cooling. The sanitary rooms all have waterless urinals, low flush toilets, timed water-saver taps and moderated flow showers. Low energy T5 lighting is used throughout.

Data

  • Begun: 2009
  • Completed: Sep 2010
  • Sector: Education
  • Total cost: £537,000
  • Address: Hadlow College, Blackman's Farm, Hadlow, Tonbridge, TN11 0AL, United Kingdom
