103 Park Road

Sam Tisdall Architects, Chiswick, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

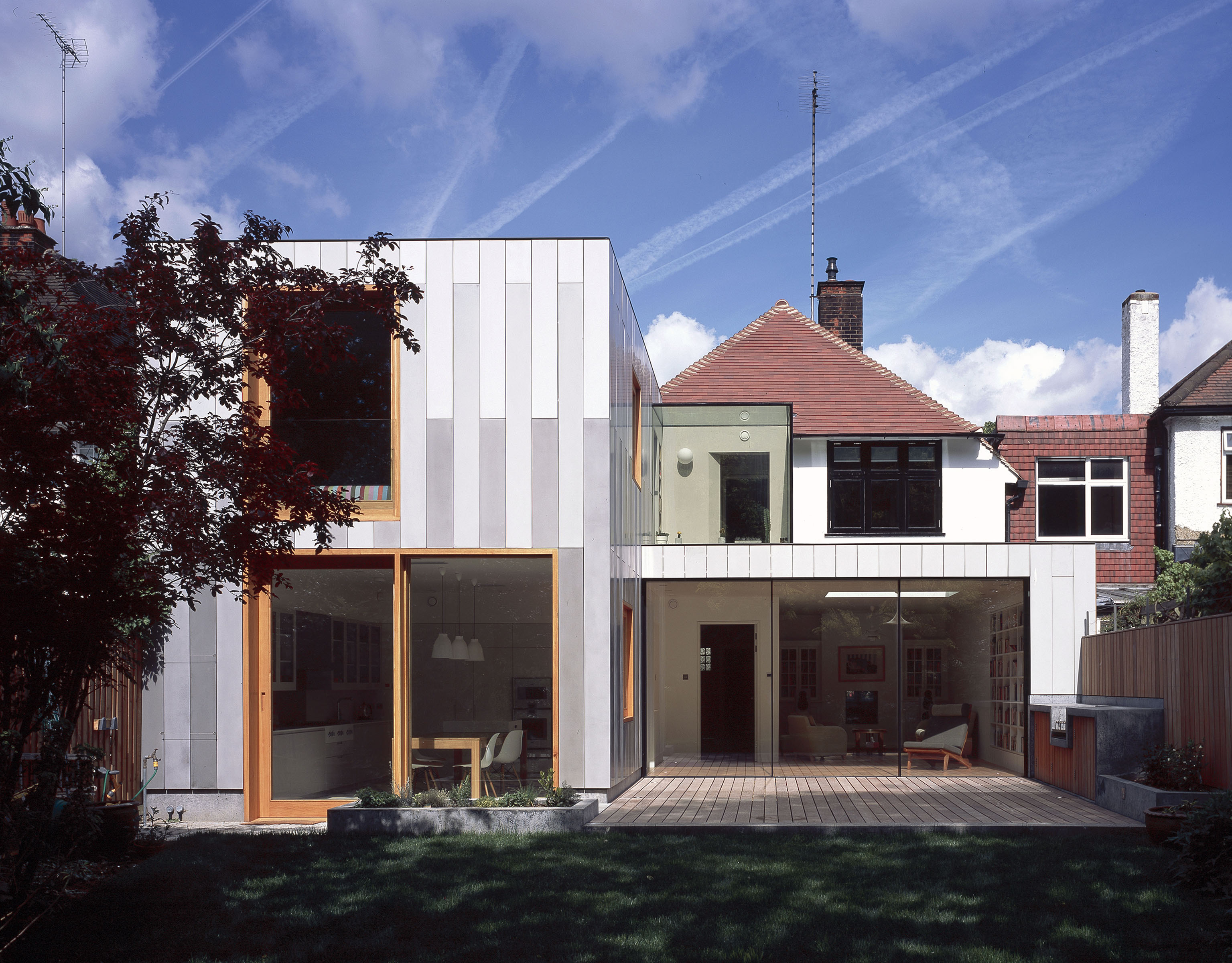

Rear extension clad with over 120 fibre reinforced concrete panels

Helene Binet     Download Original

  • Rear extension clad with over 120 fibre reinforced concrete panels
  • Glass box at first floor level
  • Extension and glass box
  •
  • View over green roof to the trees beyond
  • View of the extended living room, with pine parquet floor and triple sliding doors opening to the garden
  • Kitchen
  •
  •
  • Site plan
  • Ground and first floor plans
  • Section A-A, B-B, front and rear elevations
  • Sections C-C, D-D and E-E
  • Cladding and parapet details

Modern two-storey extension and reorganisation of a 1920s house, adding a kitchen and living space on the ground floor, and master bedroom, bathroom and terrace on the first

A rear and side addition is clad with over 120 glass reinforced concrete panels that were used in a vertical pattern becoming lighter towards the sky, and arranged to fit with bespoke European oak windows and full-height sliding doors.

Internally, the kitchen and extended living room form a spacious ‘S’ shaped living space, with large triple sliding doors opening to a decked area with a concrete BBQ alongside.

On the first floor, a frameless glass box sitting on a green roof links the existing building with the master bedroom suit in the addition.

Environmental improvements include a highly insulated envelope, solar water heating, photovoltaic panels and a heat recovery system, which extracts hot air from the glass box that acts as a solar collector.

At the bottom of the garden is a shed faced with polished stainless steel to reflect the greenery that is built from roof joists, partition studs and old roof boards, which would otherwise have been thrown away.

Data

  • Begun: May 2010
  • Completed: Feb 2011
  • Floor area: 200m2
  • Sector: House
  • Total cost: £415,000
  • Procurement: JCT MW 2011
  • CO2 Emissions: 15.9kg/m2/year
  • Address: 103 Park Road, Chiswick, London, W4 3ER, United Kingdom
