Shrubland Road

AAB Architects, London, 2011



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

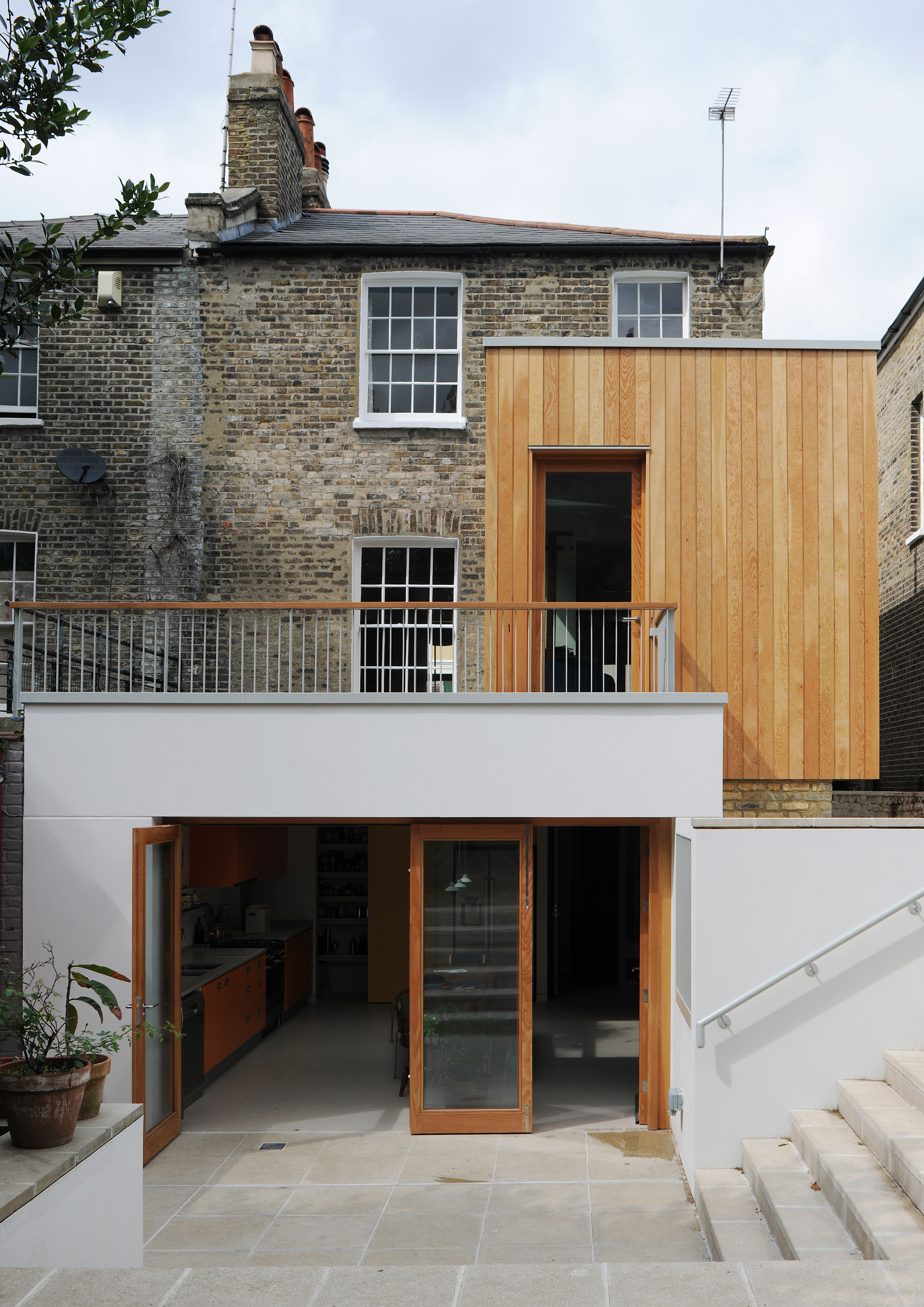

Elevation

David Grandorge (website)     Download Original

  • Elevation
  • Side view
  • Upper terrace
  • Lower terrace
  • Kitchen + garden
  • Kitchen
  • Furniture
  • Skylight
  • Study
  • Balustrade
  • Terrace steps
  • Overhang
  • Location plan
  • Site plan
  • Plans
  • Sections A-A and B-B
  • Sections D-D and E-E
  • Existing plan
  • Existing section and elevation
  • Construction
  •
  •
  • Working detail
  • Working detail
  • Working detail

Alterations to a Victorian house to create a space for modern family life, orientated towards the garden with a timber-clad study above for private reflection

The existing modern rear extension was not sympathetic to the modest refinement of the original house and was mostly demolished; the foundations and lower walls were retained as a base for the timber-clad volume that contains the study. The cladding is a purpose-designed ship-lapped section in Douglas Fir; the purpose-made windows and doors are also Douglas Fir, and are carefully aligned to frame views of the surrounding trees.

The lower ground floor was opened up to create a large family kitchen and dining space, and the garden was excavated to form a stepped courtyard. The kitchen extension has a large glass skylight, which is framed by the existing structures, the study and the balcony that spans between them.

The kitchen and built-in plywood furniture were designed by AAB architects and constructed by the main contractor. A walk-in larder provides additional storage space.

Data

  • Begun: Nov 2010
  • Completed: May 2011
  • Floor area: 45m2
  • Sector: House
  • Total cost: £205,000
  • Tender date: Sep 2010
  • Procurement: JCT 2005 Minor Works with CDP
  • Address: Shrubland Road, Hackney, London, E8 4NN, United Kingdom
