Triangle

Glenn Howells Architects
Swindon, Wiltshire, 2011

Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Paul Raftery (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Location plan
  • Site plan
  • Ground and first floor plans and section - two bedroom house
  • Ground and first floor plans- three bedroom house
  • Ground, firts and second floor plans - four bedroom house
  • Ground, first and second floor plan - appartment
  • Cowl model
  • Cowl model -detail
  • Sketch
  • Environmental strategy
  • Cowl details

Data

  • Begun: Jul 2010
  • Completed: Sep 2011
  • Sector: Residential
  • Total cost: £4.2M
  • Procurement: JCT Design and Build 2005
  • Address: Northern Road, Swindon, Wiltshire, SN2 1LX, United Kingdom

Professional Team

Suppliers

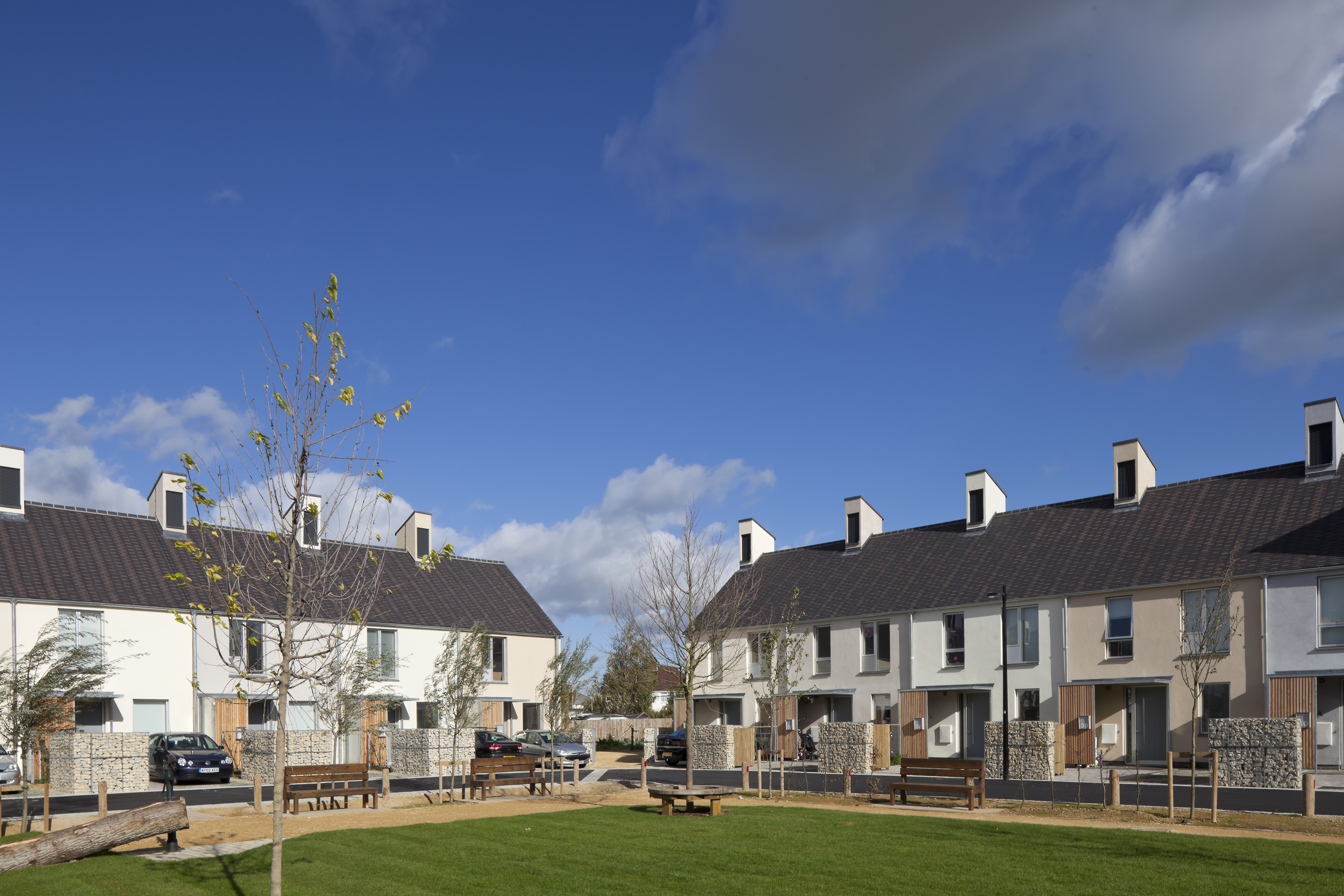

Four terraces of eco-housing built around a triangular open space

The terraces contain 42 homes with a range of two, three and four bedroom houses, and apartments, each defined by robust rainwater pipes and one of four paint colours.

Each house has a galvanized steel portico that shelters two vertical bike racks next to the front door and gabion wall bin surrounds to screen parked cars in the front gardens.

The homes have a range of sustainable features including, air source heat pumps, rainwater harvesting systems and most noticeably thermal chimneys that allow hot air to escape from the homes. The heating is interlocked with a motorised insulated ventilation hatch so that it can not operate unless the hatch is closed.

The development achieves Code for Sustainable Homes Level 4 and have been designed to allow for the retrofitting of photovoltaic panels, which could mean the houses meet Level 5.

As well as the central triangular green there is also collective outdoor space at each corner of the triangle: two community gardens and a carpark.
