Dundonald Room
Subscribe now to instantly view this image
Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.
Already a subscriber? Sign in
CFBL9JS2IPPPKJJ_1-Dundonald_Room-Jonathan_Walker
Photos by Nick Dearden Download Original

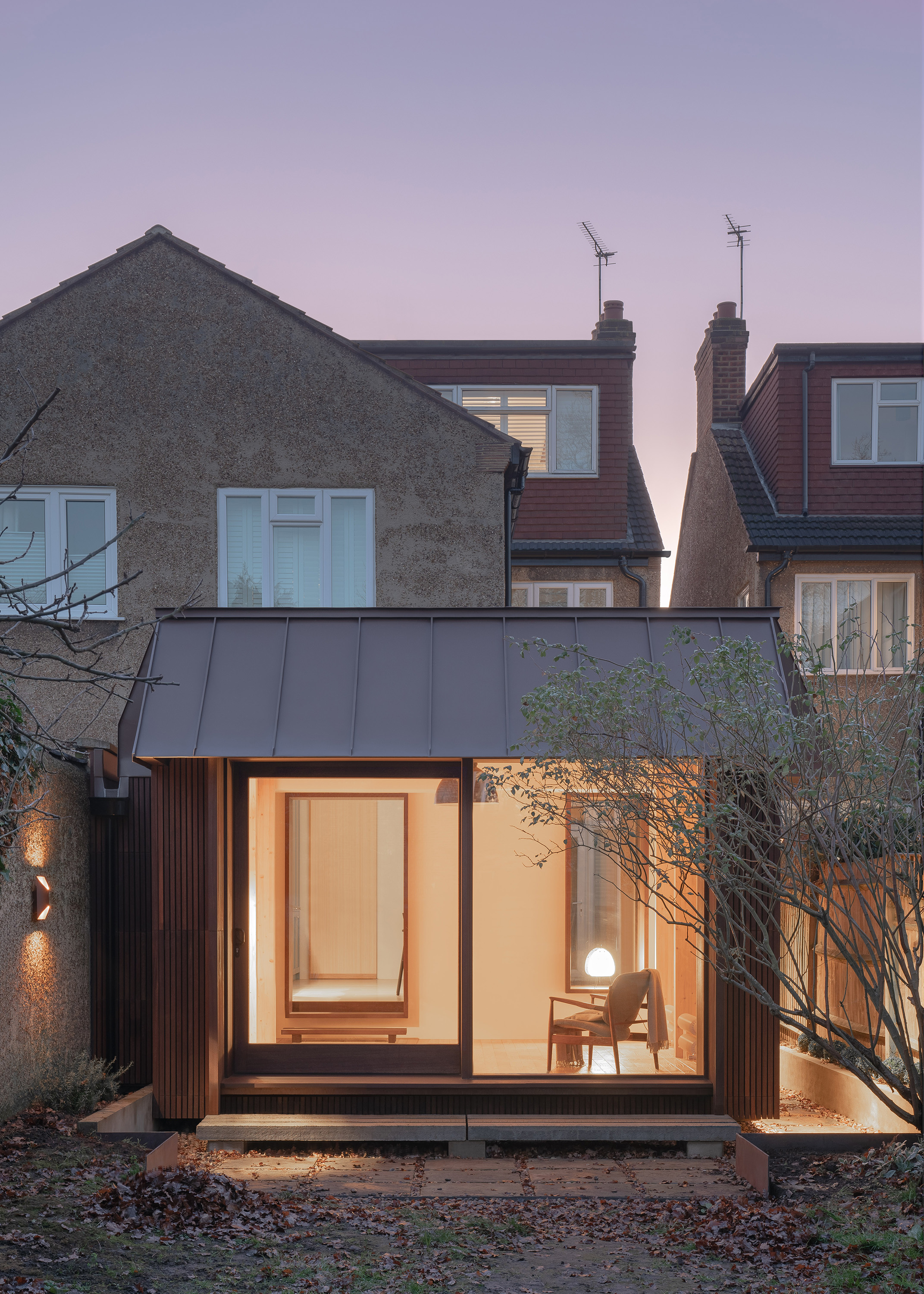

Dundonald Room, was an attempt to find a type of house addition that rediscovers the timber craftsperson.
The room, which stands in the garden, is made almost entirely of wood. The glue laminated timber frame and roof panels are larch tree wood, the picture recess walls are faced with waxed birch tree wood, the short plank timber carpet is white ash tree wood. It is an interlude between within and without. It is introverted, intimate and tactile. Almost all the exterior surfaces are a matching dark red meranti wood, bringing it close to the appearance of a tea caddy. The outside has a smooth dull appearance due to the all-over finish of rosewood oil and the brown metal zinc roof. The textural surfaces of the existing pebble dashed walls are the perfect foil. The ambition was to make an indivisible whole. Metal screw piles were used to displace carbon-intensive materials such as concrete and brick for the foundations, to reduce the carbon footprint of the building. The roots of a rose tree would also be protected, as well as the garden walls and fences. All of the wooden elements were first fabricated and pre-assembled offsite to reduce time, resource and energy spent on-site. An install of wooden furniture more than an intrusive build. Precast concrete lintels were recycled into shoe stones, perfectly convex in shape to stop rainwater collecting, and left over stone slabs repurposed into patio stones. One of a series of thresholds that are a calibration from garden to house. Over time it is intended that the wooden materials and metal roof will age beautifully within the garden. It is a sustainable approach to a small house extension.
Data
- Begun: Mar 2021
- Completed: Nov 2021
- Floor area: 20m2
- Sector: Arts and culture
- Total cost: £140,000
- Funding: Private
- Tender date: Nov 2020
- Procurement: Traditional. JCT MWD 2016.
- Address: London, SW19, United Kingdom
Professional Team
- Architect: Jonathan Walker
- Client: Private
- Structural engineer : HF-K Consulting Structural Engineers
- Services engineer: Ikos Construction London
- Main contractor: Ikos Construction London
