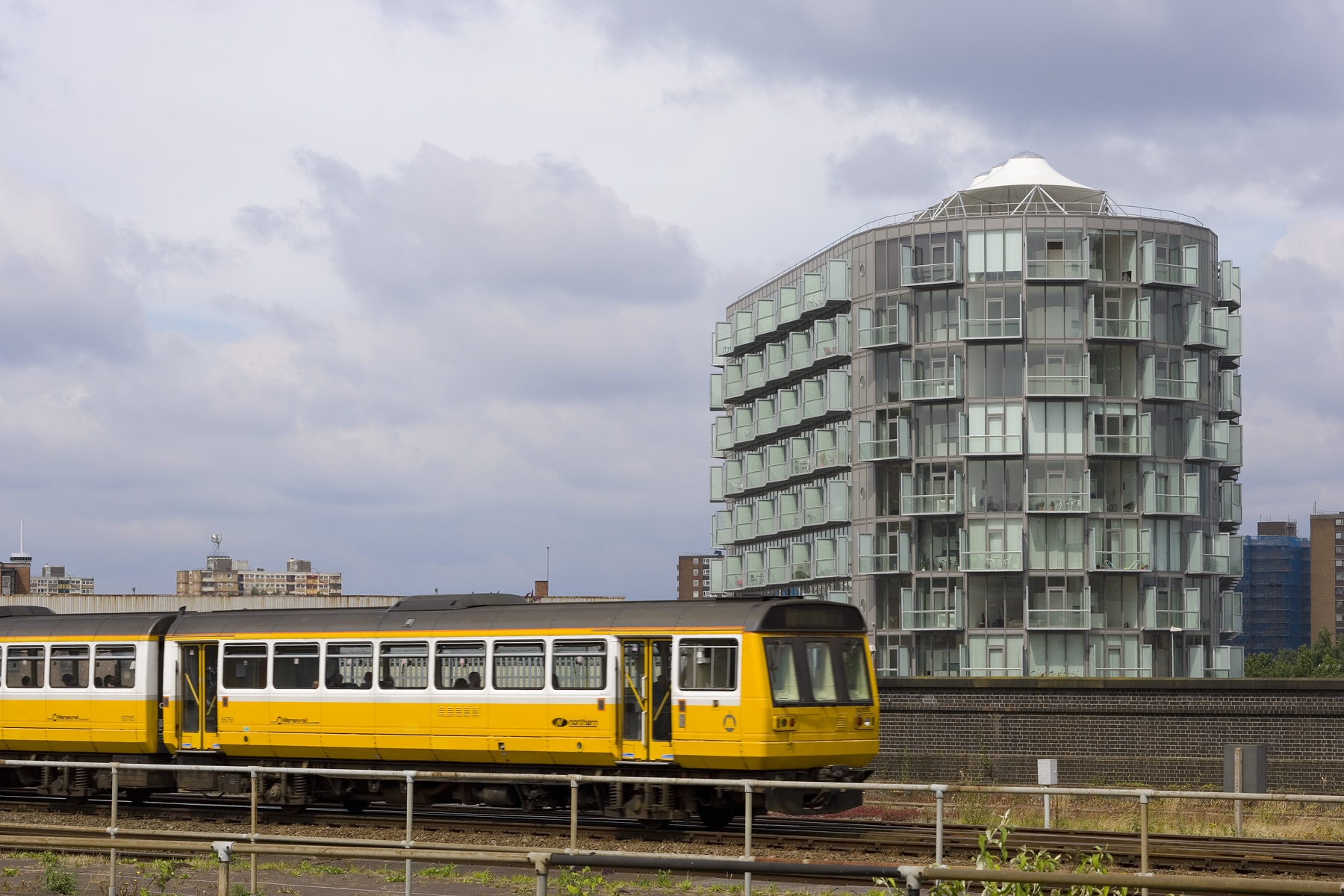

Abito Apartments

BDP, Manchester, 2007



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Martine Hamilton Knight (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  • Ground floor plan
  • Typical upper floor plan
  • Habitation study plan
  • Typical apartment plan
  • Long section
  • South elevation
  • West elevation
  • Long section - environmental
  • Apartment render

Compact apartment scheme with 256 modular units over seven floors

The brief was to design a compact apartment scheme, which would deliver high quality design on a budget; to innovate and ‘test assumptions’.

The result was a modular apartment building, which has been designed from the inside out. The planning of each flat has been governed by two principles: the elimination of ‘dead space’ by overlapping functional areas; and the provision of a generous volume within each apartment.

The nine-storey 256-apartment building fills the plot, pushing the apartments to the edge of the site, thereby creating a private, semi-external courtyard at its centre, protected from the weather by a translucent fabric canopy. Within the landscaped courtyard, occupants gain access to their flats via the central lift and stair and the galleries which connect each level.

Each apartment has a central services pod, which contains a bathroom, a utility cupboard, a kitchen and a wardrobe. The pod is made from precast concrete and largely fitted off-site.

Data

  • Begun: 2005
  • Completed: 2007
  • Floor area: 35,000m2
  • Sector: Residential
  • Total cost: £23M
  • Address: 85 Greengate, Manchester, M3 7NA, United Kingdom
