Jerwood School of Design

Project Orange, Rutland, 2009



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

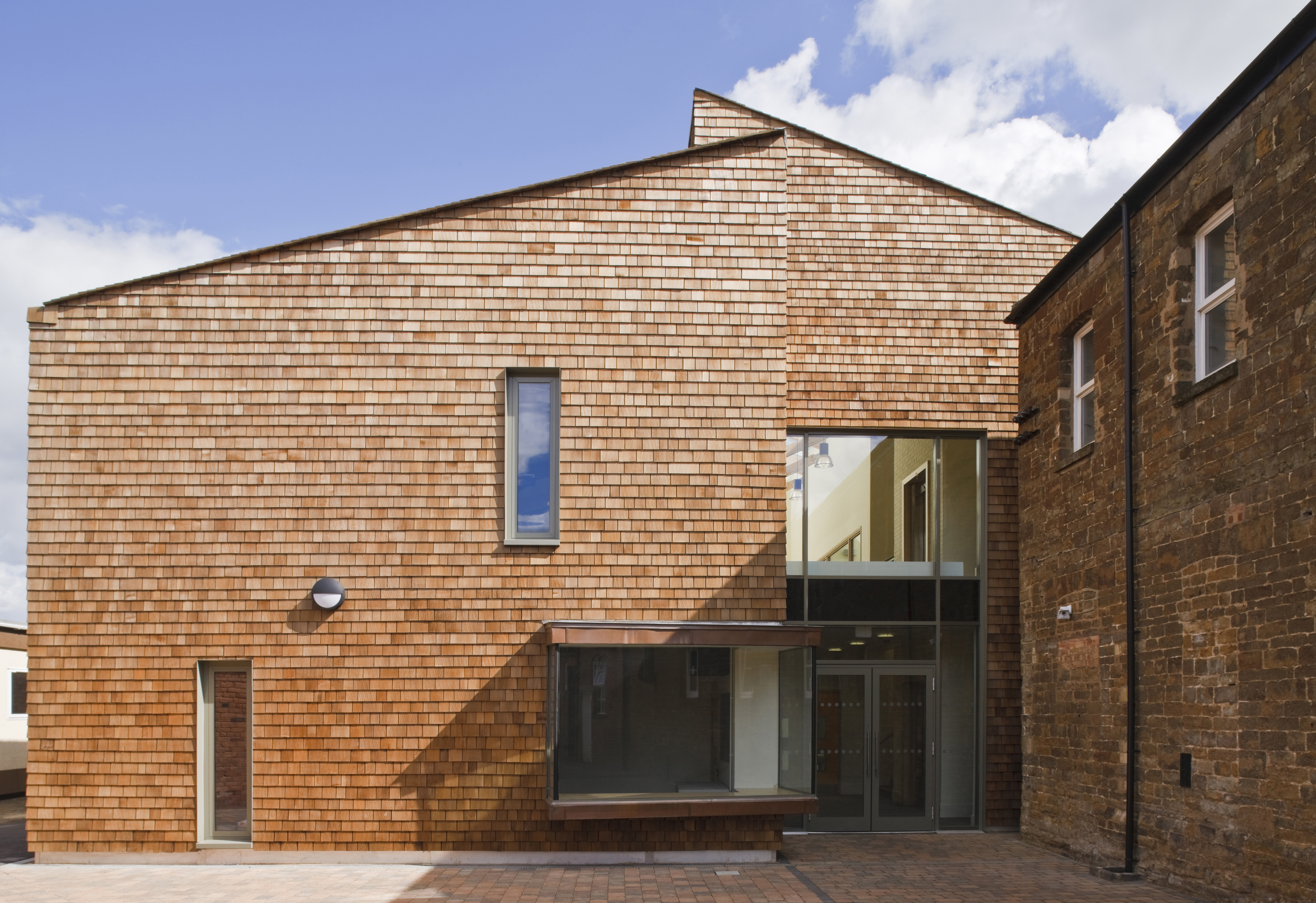

North elevation

Gareth Gardner (website)     Download Original

  • North elevation
  • East and south facades
  • View of old and new technology centres
  • West facade
  • First floor atrium
  • First floor atrium
  • Electronics laboratory
  • First floor design studio
  • Ground floor workshop
  • Site plan
  • Ground floor plan
  • First floor plan
  • Section A-A
  • Sketch sections
  • Model 1
  • Model 2
  • Model 3
  • Model 4
  • Sketch 1
  • Sketch 2
  • Sketch 3
  • Gutter detail
  • Window detail

Design and technology building for Oakham School consisting of a mixture of studios and workshops

The design included provision for a CAD/CAM studio, a materials workshop, a technology studio, preparation rooms and an office.

The concept was to create a large 'shed', clad in cedar shingles, that references the vernacular surroundings in a simple well crafted building. Inspiration came from the tradition of barn buildings that can be traced back to Medieval times.

The volume of the building is made up of a pair of two story lean-tos that slide past each other. The building is set a metre away from the existing stone barn and there is mirror-glazed connection between the two. A double height glazed entrance marks the way into a hallway where students can either access the materials workshop or pass upstairs to the IT suites.

At the heart of the scheme is a void, allowing a connection between the design process and the fabrication process. The exposed structural Glulam beams are visible from the ground floor while internal windows ensure all spaces are visually linked.

Data

  • Begun: Sep 2007
  • Completed: Apr 2009
  • Floor area: 641m2
  • Sector: Education
  • Total cost: £14M
  • Tender date: Aug 2007
  • Procurement: SBC 05 with quantities
  • CO2 Emissions: 31kg/m2/year
  • Address: Oakham School, Chapel Close, Market Place, Oakham, Rutland, LE15 6DT, United Kingdom
