The Close

SODA., Kingston-upon-Thames, 2012


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in

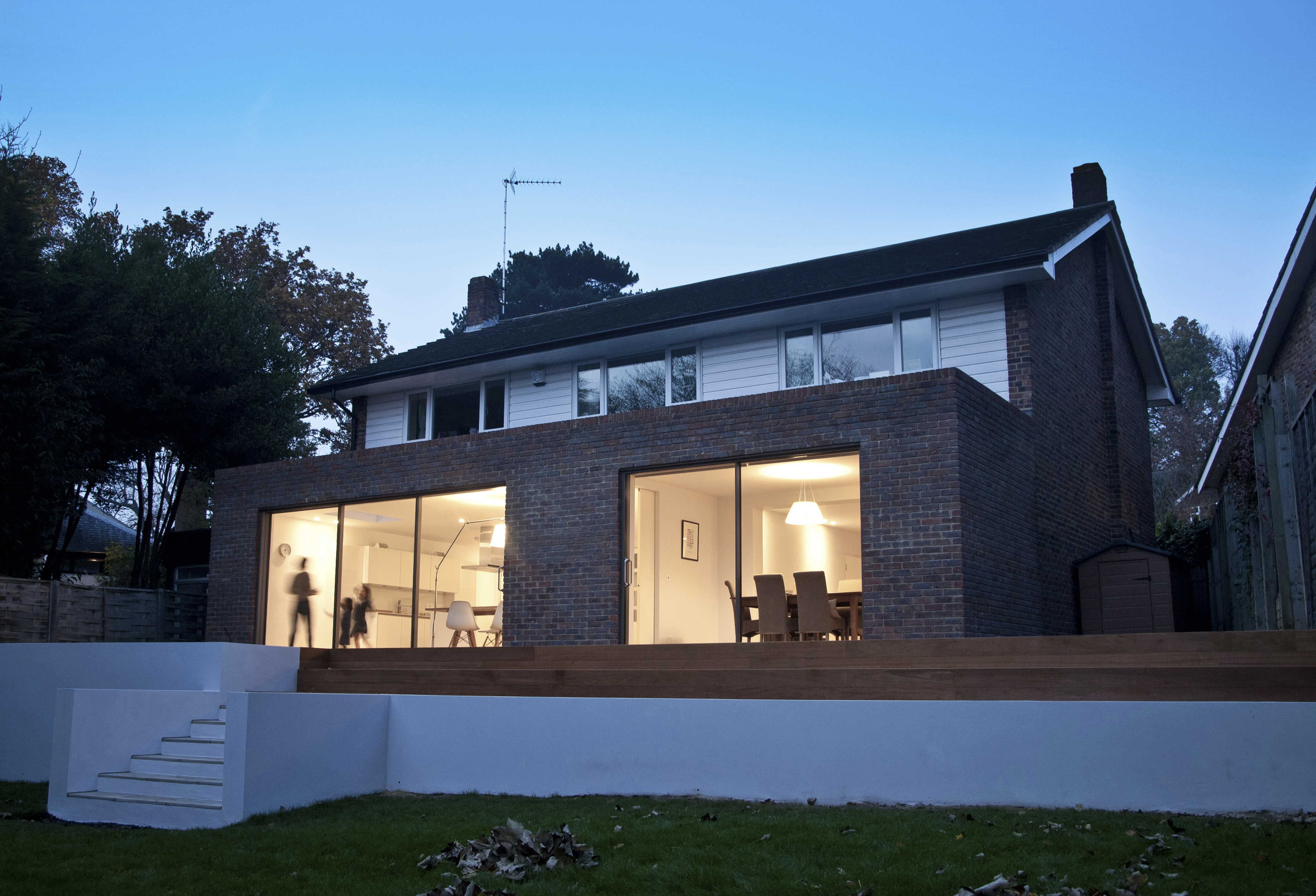

Rear Extension Dusk

SODA. (website)     Download Original

  • Rear Extension Dusk
  • Front Extension Dusk
  • Front Extension Detail
  • Family Room Day
  • Front Extension Internal
  • Front Extension Window
  • Breakfast Room and Terrace
  • Internal Staircase
  • Glazed Door Detail
  • Kitchen Area
  • Ground floor plan
  • Front elevation
  • Rear elevation
  • Facade montage
  • Existing ground floor plan
  • Existing front elevation
  • Existing rear elevation
  • Existing Rear 2
  • Existing Internal Staircase
  • Existing Front
  • Existing Rear

Refurbishment, remodelling and substantial extension of an existing 1970s family home in Kingston-upon-Thames. The brief was to create a modern family home with natural light and a minimal and clean design

SODA. have recently completed the extension and remodelling of this 1970s family house. Situated on a private road in Kingston-upon-Thames, the existing layouts originally featured small, dark rooms with an inefficient use of space.

Our proposals sought to extend the house both to the front and the rear – replacing a lean-to conservatory with a modern kitchen, breakfast and dining room and replacing an existing garage with a bright and spacious family room.

The main aim was to introduce light into the plan: intermediate walls were removed, a feature corner window was introduced to allow light into the study, a large glazed rooflight was positioned above the breakfast area and glazed sliding doors were installed both internally and externally to create a feeling of fluidity and connectivity between spaces.

A rustic handmade brick was chosen to construct both the front and rear extensions to appear at once sympathetic to the existing brick of the original house with crisp, modern detailing chosen to provide a contemporary feel to the design.

Internally, the main entrance hall has been transformed by over-cladding the existing staircase, minimal detailing and finishes continue the modern aesthetic and bespoke joinery provides a sleek solution to the family’s storage needs throughout.


  • Begun: Dec 2011
  • Completed: Sep 2012
  • Floor area: 140m2
  • Sector: House
  • Total cost: £198,000
  • Tender date: Nov 2011
  • Procurement: Traditional Tender
  • Address: 7 Gatehouse Close, Coombe Hill Estate, Kingston-upon-Thames, KT2 7PA, United Kingdom
