The Eden Project Footbridge

Buro Happold, Cornwall, 2012


Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in


Jonathan Roynon     Download Original

  • Site plan
  • Layout
  • Sections
  • Section
  • Detail
  • Detail

The Eden Project Footbridge is a new 54m long pedestrian bridge replacing a temporary scaffold bridge which forms a key part of the able and disabled visitor route around the site

The bridge is 2.5m wide to provide 2 way wheelchair access between the Core and Visitor Centre as well as a providing a viewing point across the iconic site. The bridge was built adjacent to the existing to minimise disturbance and was designed and built in just 6 months to a tight budget.

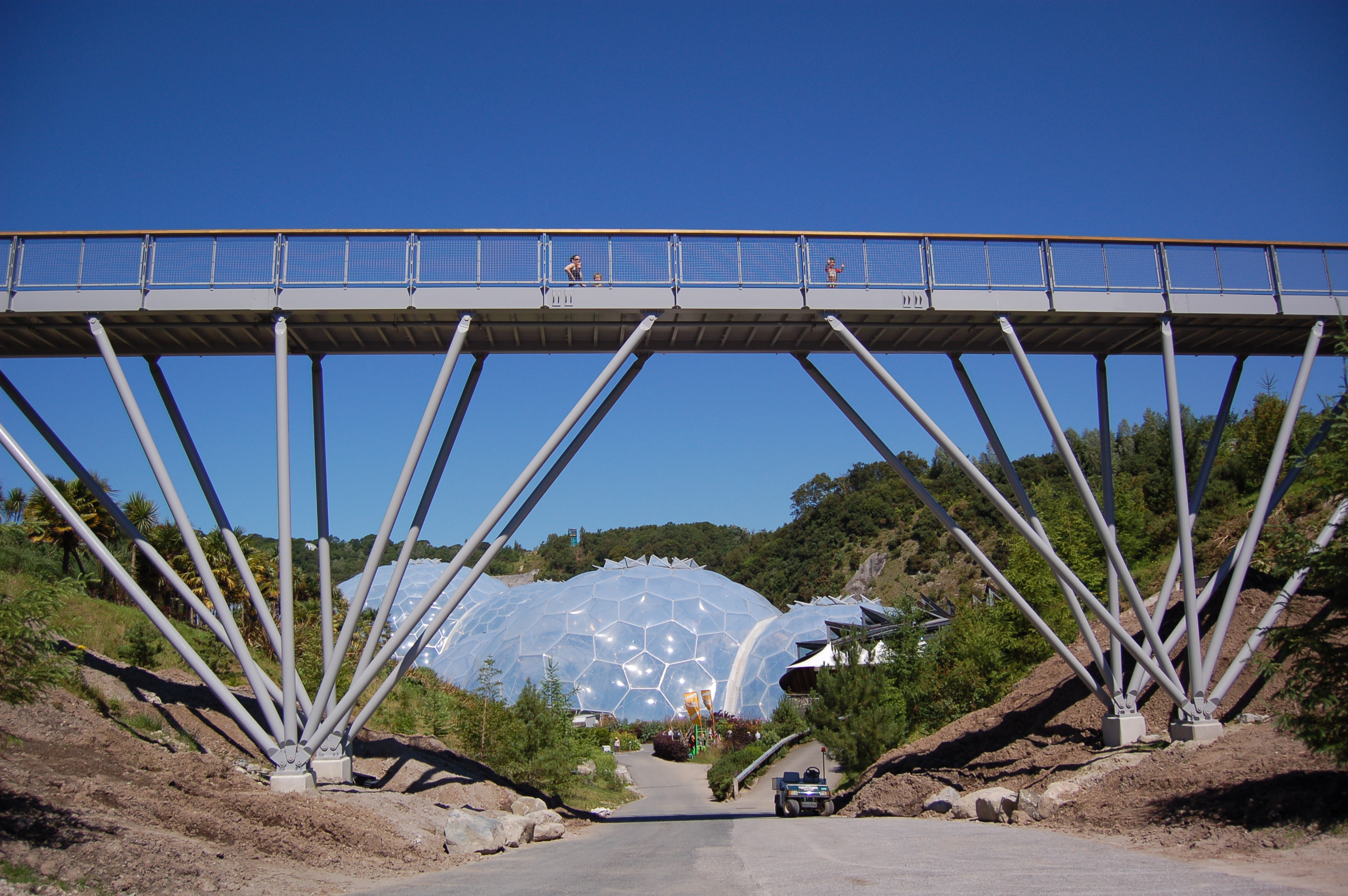

The design uses a fan of columns for a lightweight support to the deck which is envisioned as a simple thin line with the deck hidden within depth of the edge beams and supporting a minimal balustrade.

To minimise its environmental impact all concrete uses a very high proportions of GGBS and locally sourced secondary aggregate and an innovative rubber deck made from recycled car tyres.


  • Begun: Feb 2012
  • Completed: Jun 2012
  • Floor area: 167m2
  • Sector: Transport
  • Total cost: £210,000
  • Funding: Client finance
  • Tender date: Jan 2012
  • Procurement: NEC 3
  • Address: Eden Project, Bodelva, Cornwall, PL24 2SG, United Kingdom
