Soundforms

BFLS, London, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Nick Guttridge (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Plan
  • Section
  •
  •
  •
  •
  • Raytrace
  •
  • Acoustic diagram
  • Construction

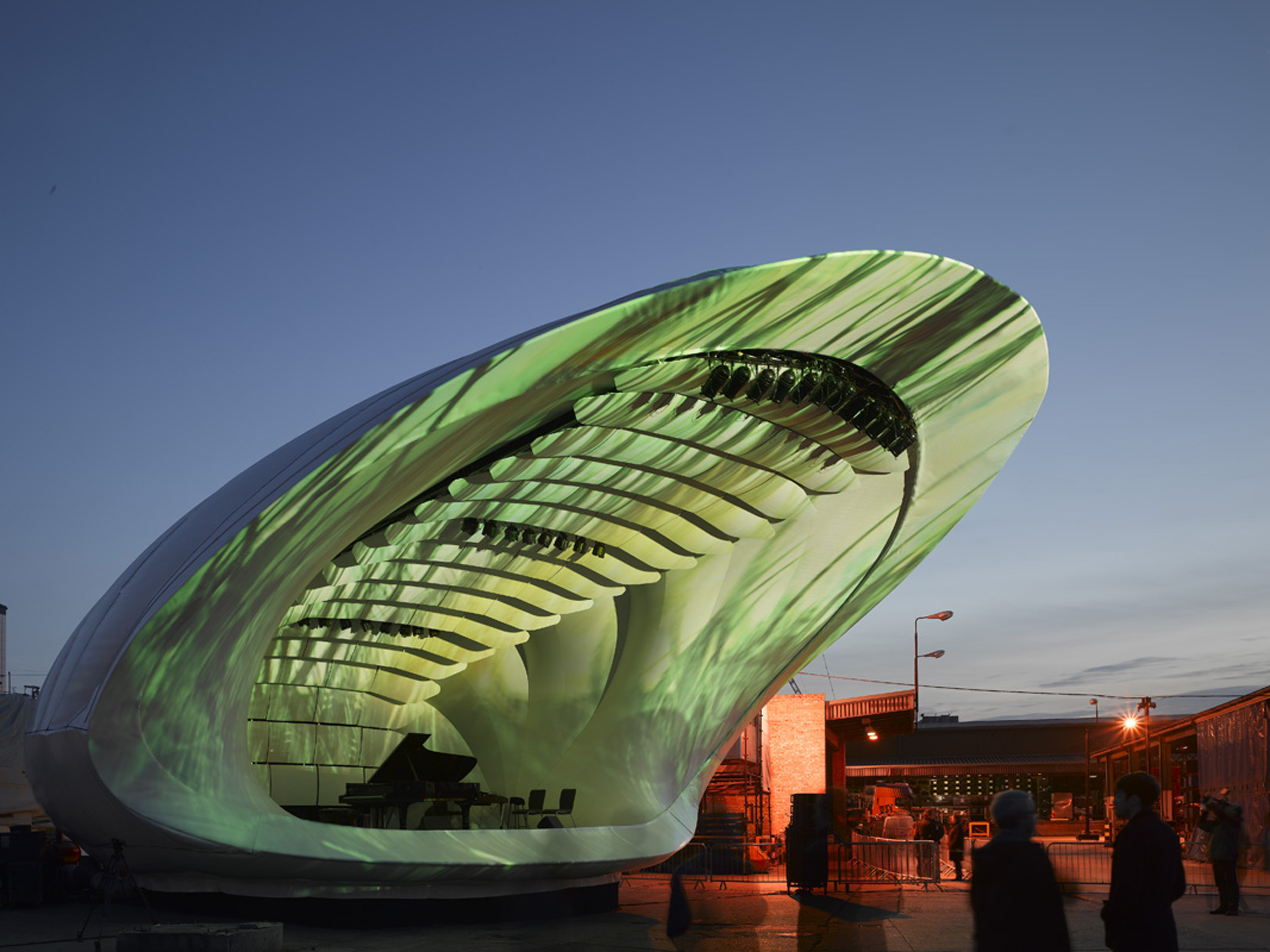

Mobile demountable stage designed to enhance the acoustics of outdoor performances

Designed to create the on-stage acoustic of a concert hall, the standalone stage, which is available in three sizes, is capable of being installed in three days and demounted in one.

The inflated fabric skin is supported on a lightweight aluminium frame, which rotates into position around an articulated pin joint, locked to a steel stage grid and weighed down with 26 tonnes of ballast to resist wind load.

The skin comprises eight white PVC-coated polyester cushions inflated to various depths by hoses connected to a low-noise AHU, which are attached to the frame with belts and buckles before being connected together with waterproof, airtight zips.

Sound is bounced towards the audience using geometry and a mixture of visible 18mm plywood reflecting panels, painted white, and acoustically transparent lycra screens with additional plywood panels behind.

Data

  • Begun: Jul 2012
  • Completed: Jul 2012
  • Floor area: 75m2
  • Sector: Arts and culture
  • Total cost: £350,000
  • Procurement: Partnering
  • Address: London, United Kingdom
