Ashfield Healthcare Extension

Shedkm, Ashby de la Zouch, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Darren Cresswell Photography     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • site plan
  • First floor plan
  • Second floor plan
  • Section
  • Cross section
  • Cross section
  • East elevation and existing east elevation
  • Isonometric
  • Site context
  • Existing first floor plan
  • Existing roof plan

Expansion to Ashfield Healthcare's headquarters and training centre with the addition of a second floor rooftop pavilion

To increase both the building's training facilities, and associated management and services support, the existing first floor was extended over a balancing pond situated adjacent to the building.

The first floor expansion continues the existing central 'boulevard' with the addition of new training rooms and services, including enlarged kitchen and restaurant provisions, toilets and circulation - this consists of a new training facilities reception, escape core, feature staircase and lift.

Additional management facilities are placed above as part of a second floor pavilion, which incorporates open plan break-out space, meeting rooms, insular offices and a central storage.

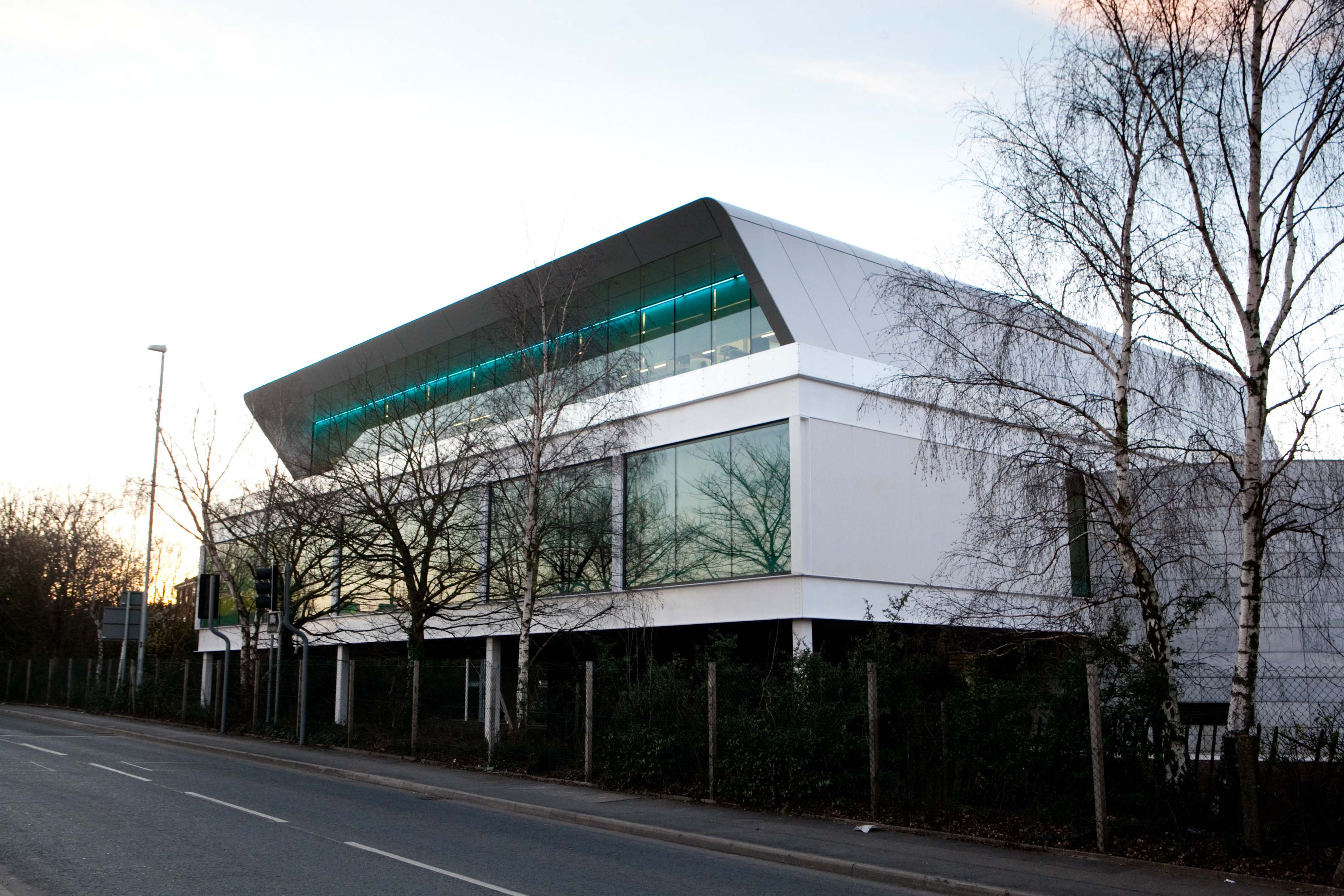

The envelope of the 'penthouse' incorporates a chamfered elevation, that provides solar protection to the south facing glazing, and an external terrace to the north.

Data

  • Begun: Jan 2011
  • Completed: Jan 2012
  • Floor area: 1,400m2
  • Sector: Office
  • Total cost: £4.5M
  • Tender date: Aug 2010
  • Procurement: Traditional
  • Address: Ashfield House, Resolution Road, Ashby de la Zouch, LE65 1HW, United Kingdom
