The Oaks

SOUP Architects, Richmond, 2012



Subscribe now to instantly view this image

Subscribe to the Architects’ Journal (AJ) for instant access to the AJ Buildings Library, an online database of nearly 2,000 exemplar buildings in photographs, plans, elevations and details.

Already a subscriber? Sign in



Richard Brine (website)     Download Original

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  • Site plan
  • Ground floor plan
  • First floor plan
  • Second floor plan
  • Roof plan
  • Courtyard section
  • Site plan
  • Existing ground floor plan
  • Existing first floor plan
  • Existing second floor plan
  • Floor:wall junction detail
  • Study detail

Refurbishment of one half of a Grade II listed stable block to allow the whole building to function as a single house

Built in 1610 as the stable block to Ham House, the Grade II listed building, which forms one wing of Ham House Stables, was converted into two residential units during the 1970s.

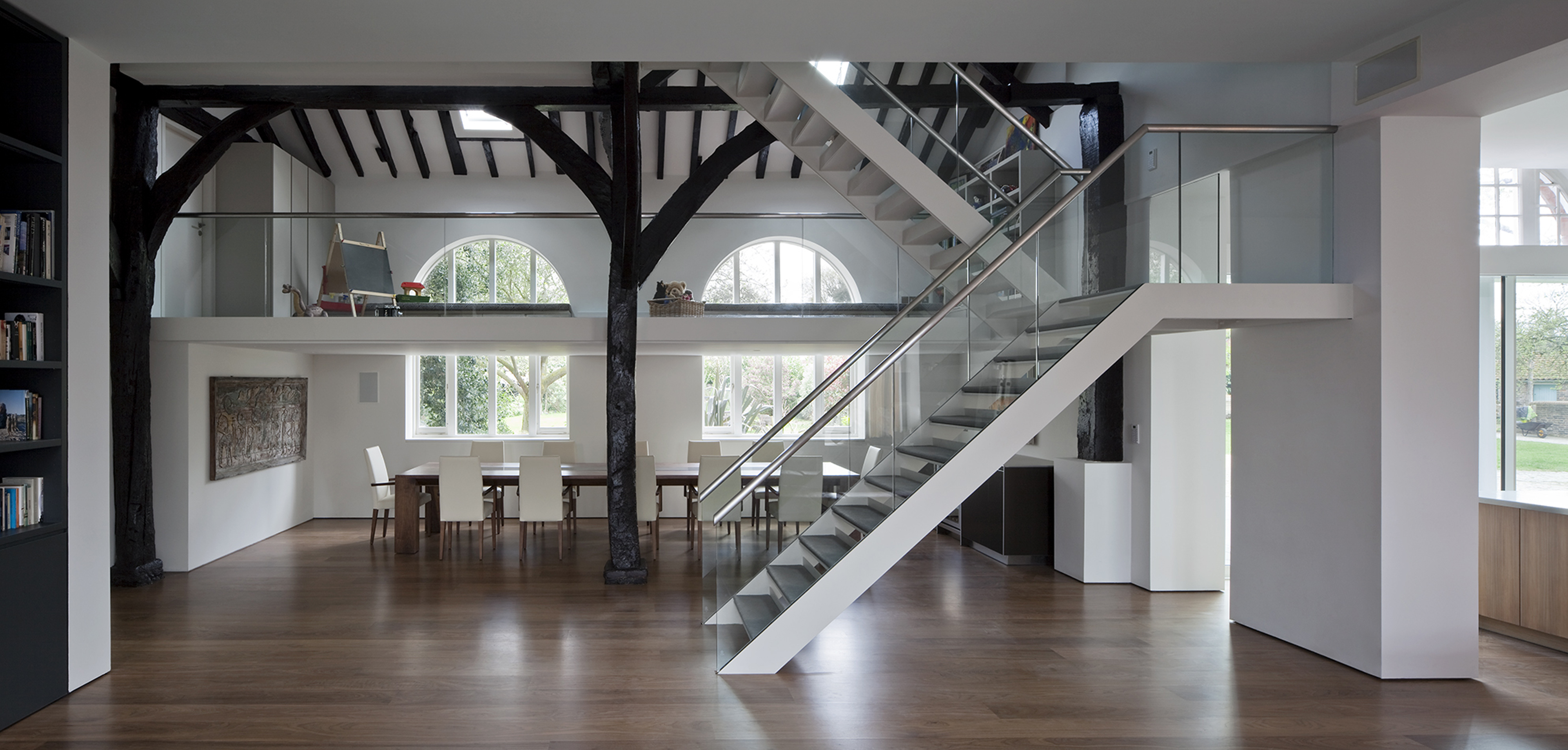

In the late 1990s Foster + Partners refurbished one unit and installed a modern steel and glass structure wrapped around the existing oak frame to create a split level house over three floors.

The project extends this refurbishment to provide additional living areas and a reconfigured bedroom arrangements and unifies the two units as one coherent house. The master bedroom has been brought down to the mezzanine level to create a private suite and the children’s bedrooms have been reconfigured on the upper roof level.

The refurbishment has retained the existing internal oak structure, restored the property's landmark chimney attached to the southern elevation and re-instated many of the buildings lost features, including the original blacksmiths fire.

Internally a mezzanine level has been removed to create a double height living room focused around the new open fire.

A fully integrated heating, lighting, audio and visual system has been installed that allows complete control from any networked phone/computer in house or remotely from anywhere globally.

Data

  • Begun: Feb 2011
  • Completed: Jan 2012
  • Floor area: 400m2
  • Sector: House
  • Procurement: JCT Standard with Quantities 2010
  • Address: The Oaks, Ham House Stables, Ham Street, Richmond, TW10 7RS, United Kingdom
